Laborie NXT Pro Owner’s Manual LBL-00146 [C], MAN2010 24

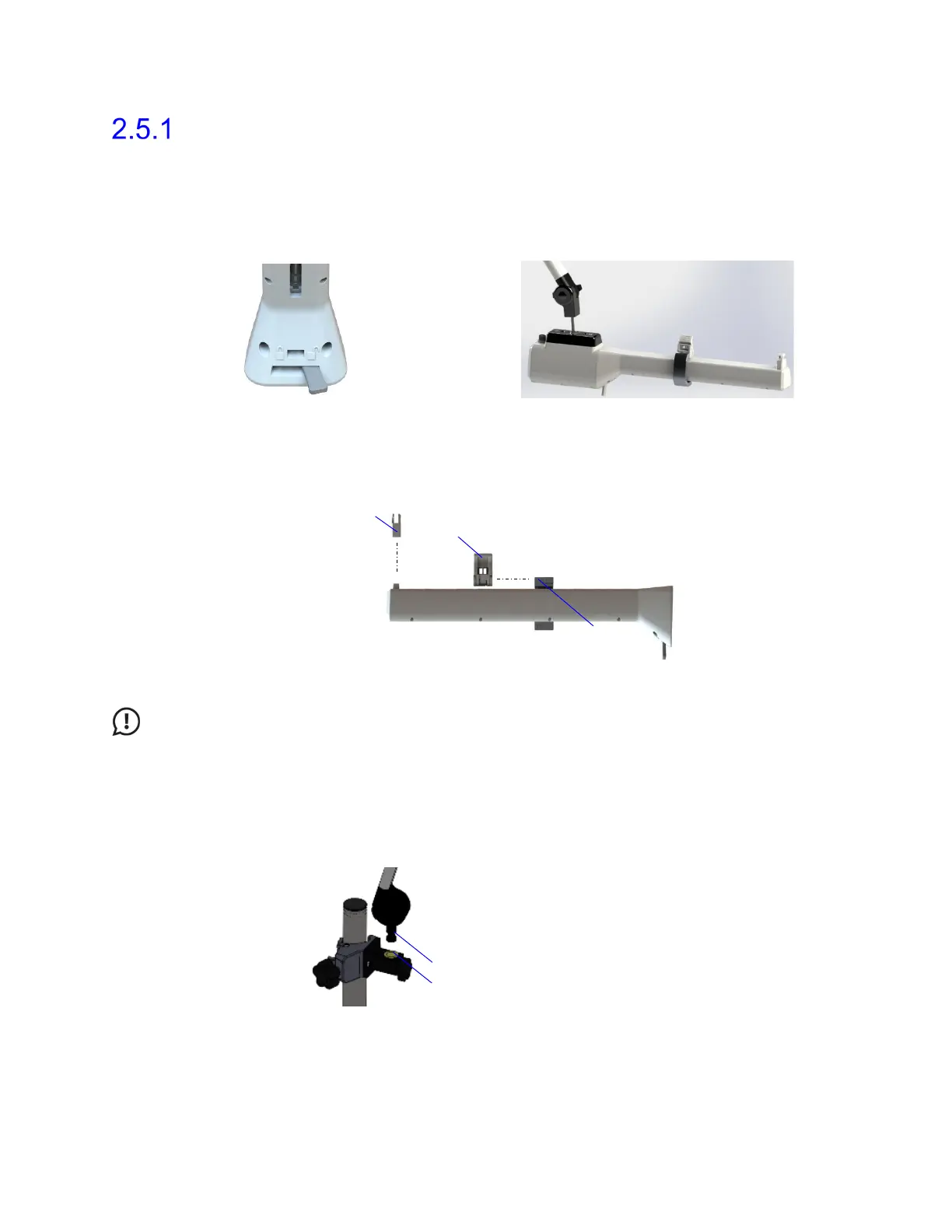

Assembling the UPP Puller NXT
Identify the removable parts to begin assembly of the UPP Puller NXT. The UPP Puller NXT
nose separates from the motor through a locking mechanism located at its base (Figure 6).
Fit the nose onto the motor with the locking mechanism in the unlocked position. When the
couplers have self-aligned, lock the mechanism (Figure 7). If disassembly is required,
unlock the mechanism and then pull the nose away from the motor.
Figure 6: UPP Nose Locking Mechanism
Figure 7: Connect the UPP Motor and Nose
The UPP nose features the removable catheter guide and catheter clamp (Figure 8). Attach
the catheter guide and catheter clamp to the appropriate connection point. The catheter
guide and catheter clamp use magnets to connect and disconnect from the nose
Figure 8: Left Profile—Removable Parts
IMPORTANT: Removal of the catheter clamp may expose a sharp piece of metal
protruding from the hinge. Exercise care when handling.
To mount the UPP Puller NXT, slide the pole clamp onto the post of the UPP stand or NXT
hoop. Ensure that the yellow bushing is facing upward. Lock it in position using the rubber
knob screw located on the pole clamp. Loosen the thumb screw on the pole clamp and place
the UPP Puller NXT arm clamp insert into the clamp’s yellow bushing (Figure 9).
Figure 9: Connecting UPP Puller NXT Arm Clamp and the Pole Clamp
Tighten the thumbscrew to complete mounting. To adjust any of the joints on the UPP Puller
arm, loosen the thumbscrews, adjust, and retighten. Refer to Figure 10.
UPP Puller NXT Arm Clamp Insert
