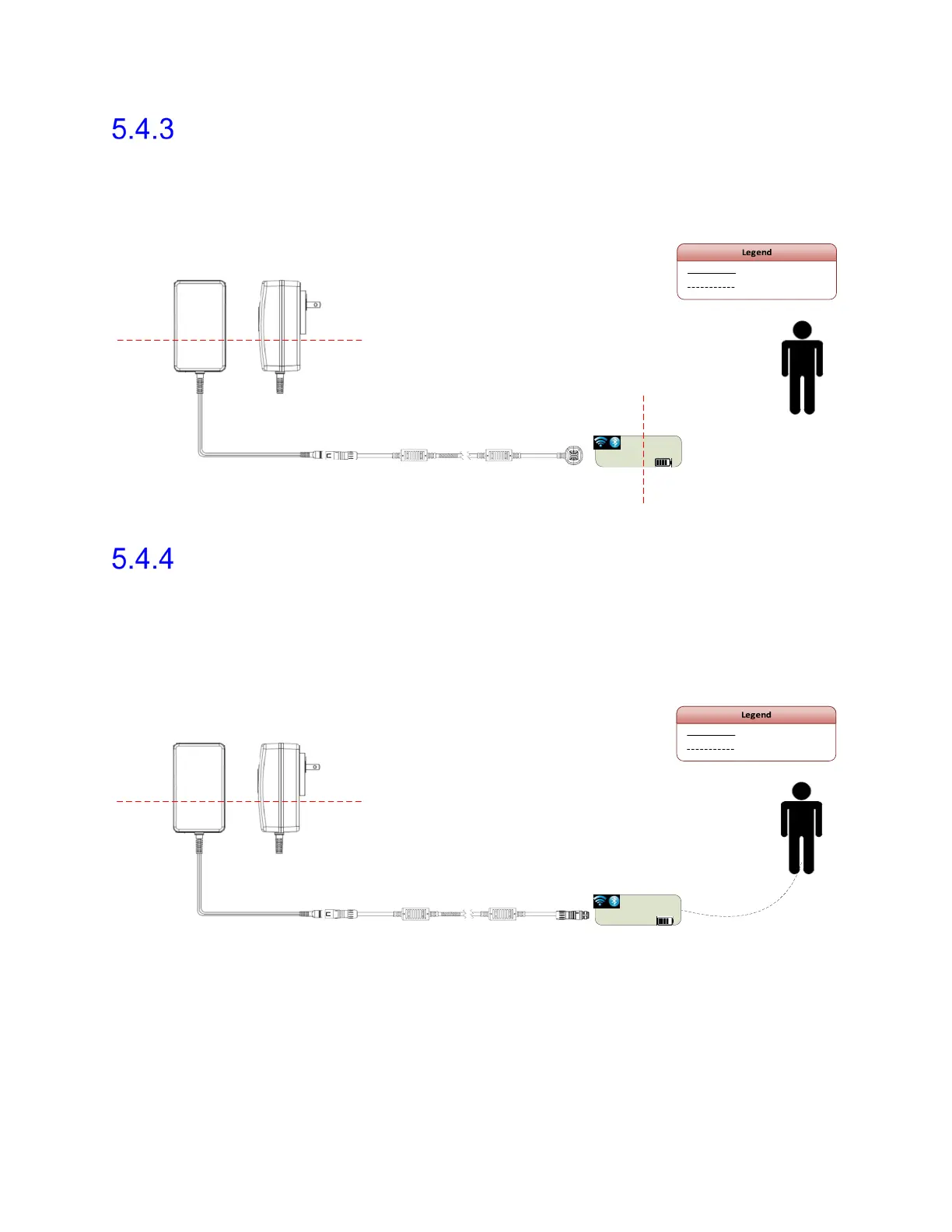

Urocap NXT and Wall Charger Isolation Diagram
Refer to the diagram in Figure 81 for a visual representation of the method to isolate the
Urocap NXT from main supply when configured with a wall charger. For further information
regarding electrical isolation, contact Laborie Service.
Urocap NXT
Direct electrical contact
Indirect electrical contact
100-240VAC
50/60Hz
Isolation Barrier1
NXT Module Power
Supply
P/N:POW1033
Cable NXT POGO Pin to
BINDER 3 meter
P/N:CAB1081
Isolation Barrier2
Figure 81: Urocap NXT and Wall Charger Isolation Diagram
UPP Puller NXT and Wall Charger Isolation
Diagram
Refer to the diagram in Figure 81 for a visual representation of the method to isolate the
UPP Puller NXT from main supply. For further information regarding electrical isolation,
contact Laborie Service.
Direct electrical contact
Indirect electrical contact
100-240VAC
50/60Hz
Isolation Barrier1
NXT Module Power
Supply
P/N:POW1033
Cable NXT BINDER to
BINDER 3 meter
P/N:CAB1109
UPP Puller NXT
Figure 82: UPP Puller NXT Wall Charger Isolation Diagram
5.5 Computer Virus Protection
Each computer purchased from Laborie is verified to be virus-free prior to shipment and is
installed with an antivirus program. It is the customer’s responsibility to correctly use and
maintain the antivirus program. Customers may use an alternative antivirus program at
their own risk. Laborie does not certify alternative antivirus programs for use with the NXT
