Quick Start
Laborie NXT Pro Owner’s Manual LBL-00146 [C], MAN2010 23

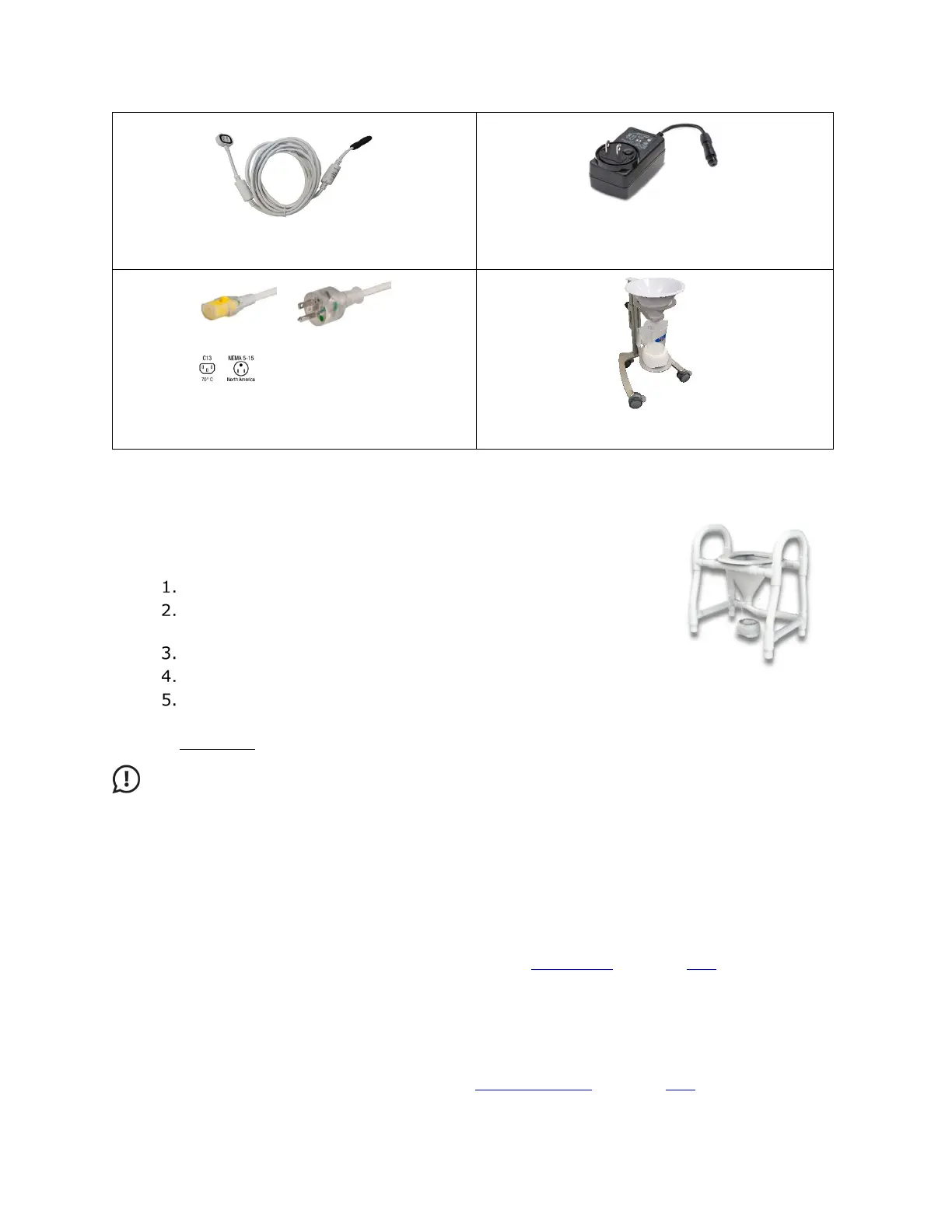

NXT Magnetic Pogo Pin Cable, Binder
Termination, 3m Length (CAB1081)
Power Supply, Medical Grade, Class II
Wall Plug (POW1033)
US Regional Power Cable, V-Lock for
System (POW1026)
Urocap NXT Stand with Funnel
2.3 Preparing the Urocap NXT
To prepare the Urocap NXT for use (Figure 5), perform the following
steps:
Ensure that the Urocap NXT is charged and ready to use.
Place the funnel on the plastic frame of the commode
chair.
Carefully place the Urocap NXT transducer on the floor.
Place the graduated beaker on top of the transducer.
Place the commode chair and funnel over the Urocap NXT
and beaker.
Refer to MAN1000 for Urocap NXT stand setup instructions.
IMPORTANT: Ensure that all preparation steps are completed before starting a study
in Synergy.
2.4 Preparing the Roam NXT
• Ensure that the Roam NXT is charged. Laborie recommends charging the device
overnight to ensure optimal battery power for a full day of procedures.
• Confirm that the Roam NXT and PIM NXT are connected securely. The PIM NXT
and the Roam NXT must be connected to function. For information on the Roam
NXT and the PIM NXT, refer to the section Roam NXT on page 106
.
2.5 Preparing the UPP Puller NXT
Ensure that the UPP Puller NXT is charged. Laborie recommends charging the device
overnight to ensure optimal battery power for a full day of procedures. For instructions on
how to charge the device, refer to the section UPP Puller NXT on page 113
. Confirm that the
UPP Puller NXT is fully assembled and securely mounted.
Figure 5: Urocap NXT
Setup
