Laborie NXT Pro Owner’s Manual LBL-00146 [C], MAN2010 32
third electrode on a bony prominence (such as the knee; see Figure 17) or on a
fatty portion of the inner thigh.

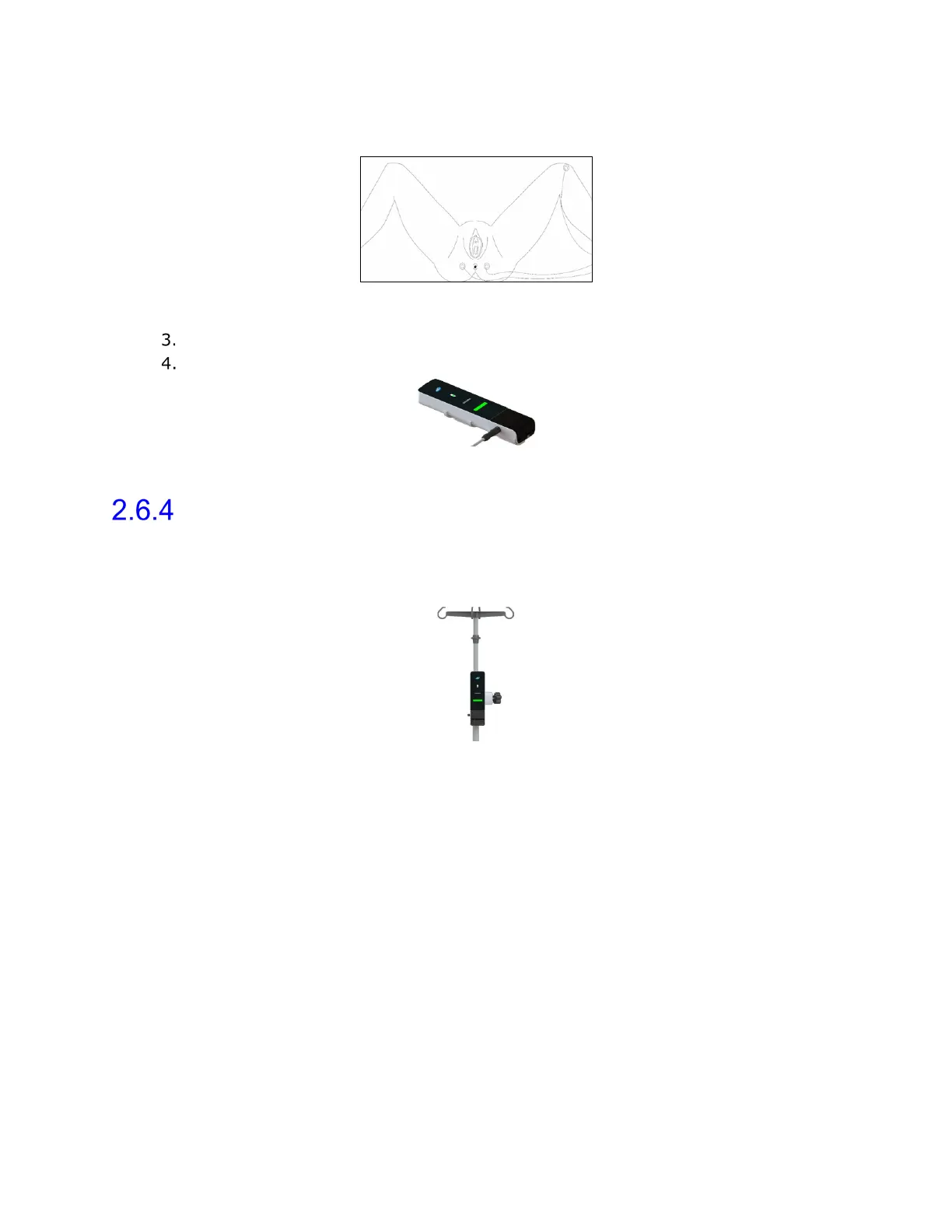

Figure 17: EMG Patch Electrode Placements
Gather all tubing/wires and secure them to the patient’s thigh using tape.
Connect the EMG cable to the PIM NXT, as shown in Figure 18.
Figure 18: EMG Cable Connected to PIM NXT
Performing Roam NXT Patient Setup
For ease of movement and accessibility during urodynamic procedures, the Roam NXT can
be mounted on an IV Pole or on the procedure chair. When mounting the Roam NXT, always
ensure that the clamping mount is securely fastened.
Figure 19: Roam Mounted on IV Pole
