108 General Maintenance

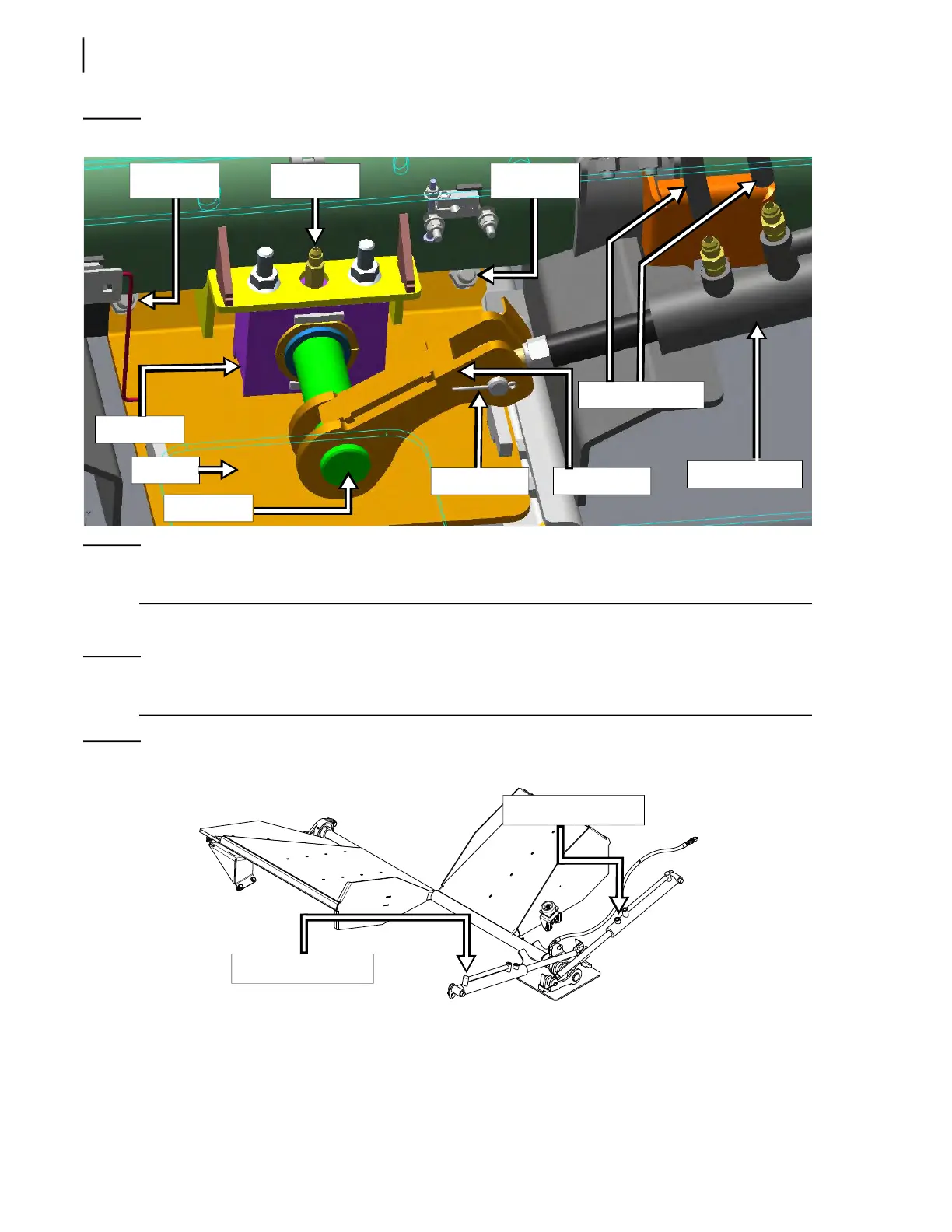

Figure 3-132
Chute cylinder and related parts
NOTE: The above illustration is used only to show where the parts are located and how they are
attached to each other.
20. Remove the pins that hold the cylinder rods in place (see Figure 3-132).
NOTE: Take care not to cause misalignment of both limit switches when disconnecting the two chute-
operating cylinders.
Figure 3-133
Location of both chute-operating cylinders
21. If needed, retract both chute-operating cylinders. To do so:
Hydraulic hoses
Chute cylinder
Cotter pin
Chute shaft
Pillow block
Grease
fitting
Plate
holding bolt
Plate
holding bolt
Chute lever
Plate
RHS chute cylinder
LHS chute cylinder
