General Maintenance 109
21 a. Start the engine and engage the hydraulic pump.
21 b. Retract both cylinders using the outside chute-operating levers (see Figure 3-129).
21 c. Turn OFF the hydraulic pump and stop the engine.
21 d. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
22. Remove the plate under the pillow block (see Figure 3-132).
Two bolts hold this part in place.
23. Unscrew the greasing hose from its attachment on the pillow block (see Figure 3-132).
24. Remove the pillow block.
Two ½” bolts located under the pillow block hold this part in place (see Figure 3-134).

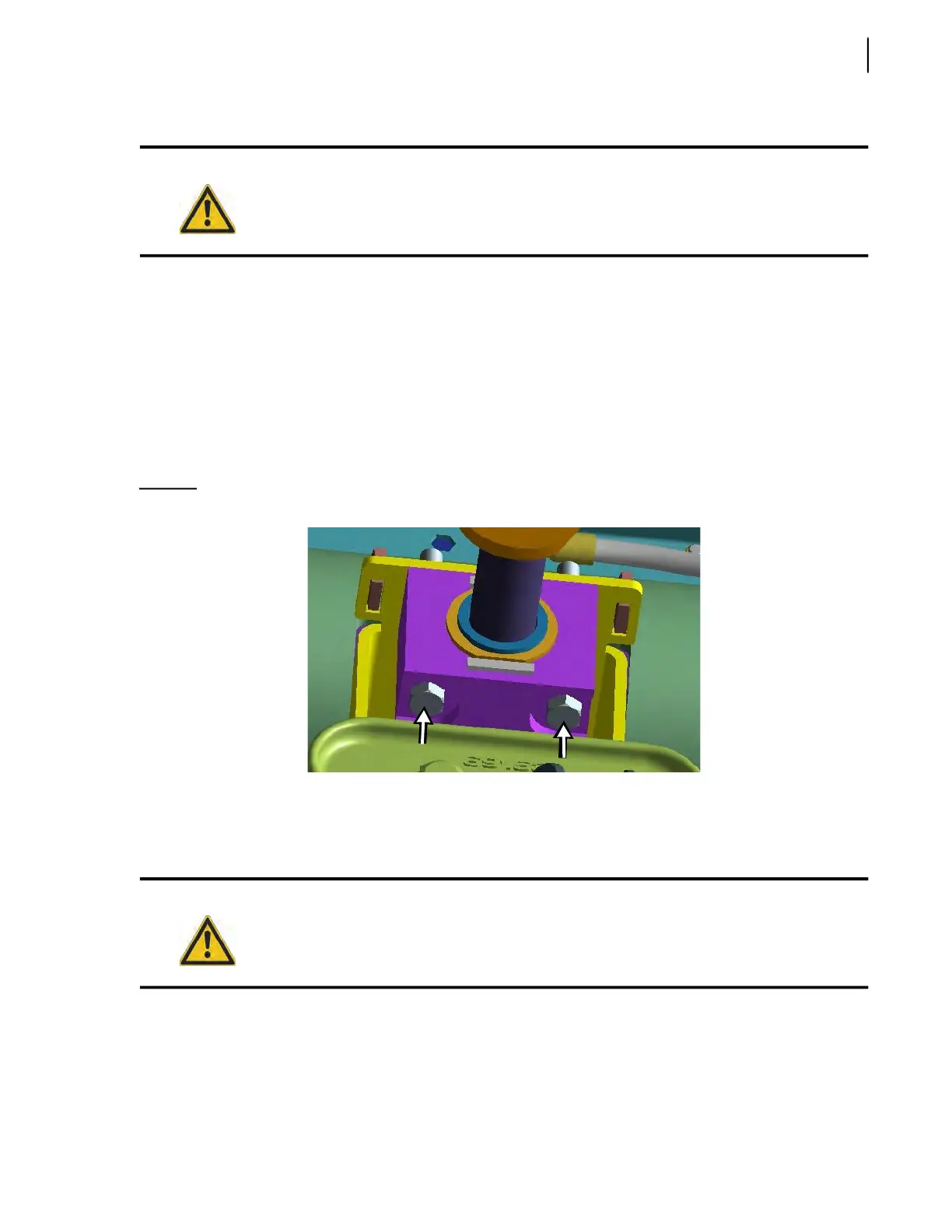

Figure 3-134
Bolts holding pillow block in
The rear section of the chute shaft is now free and unattached.
Next: Disconnecting the front section of the chute shaft.
25. Proceed with the removal of both floating panels (see Figure 3-135).
Danger!
Never enter the hopper while the hydraulic system is engaged.
Warning!
Beware of the floating panel pinch points. Keep your fingers and hands away from them.
