General Maintenance 123

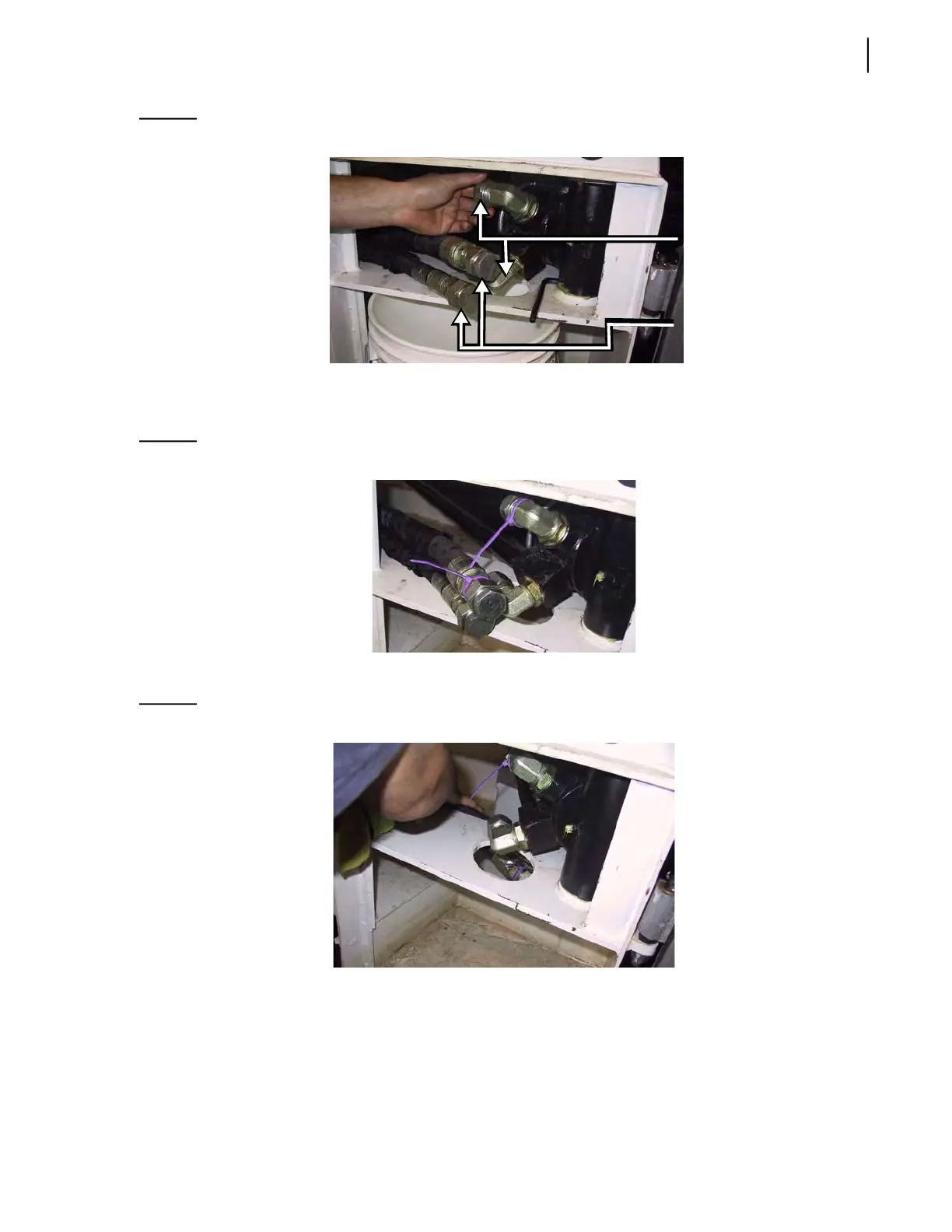

Figure 3-159
Capped hoses and fittings
7. Clearly identify the disconnected hoses and fittings to avoid mix up during reconnection.
Use of color-coded tie wraps (see illustration below) is appropriate for such purposes.
Figure 3-160
Color-based identification
8. Push the hoses away to facilitate cylinder removal.
Figure 3-161
Pushing away hoses
9. Remove all 4 bolts that hold the cylinder front-end pin in place (see Figure 3-162).
Capped
hoses
Capped
fittings
