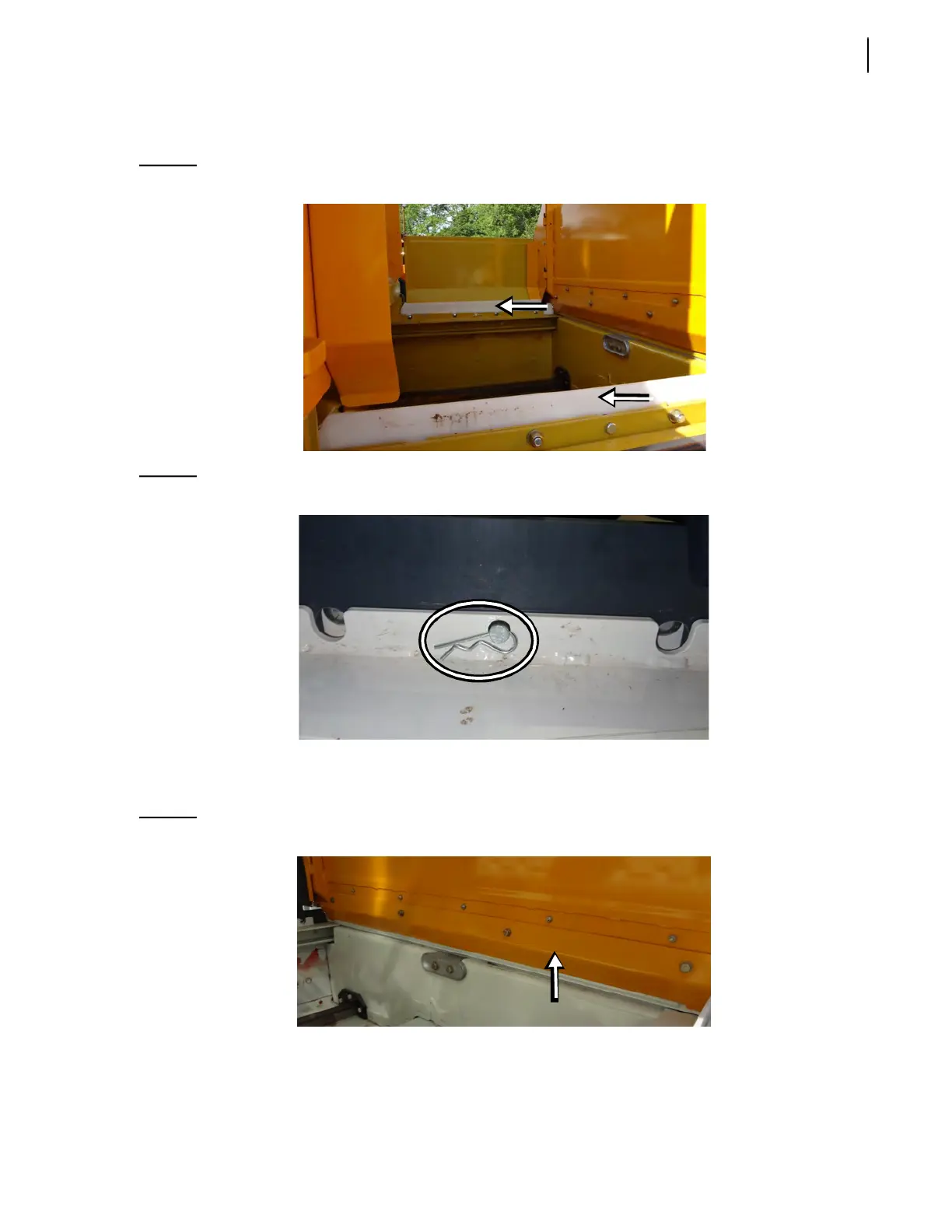

General Maintenance 137
An R-pin located just behind the anti-spill guard (see Figure 3-181) must be pulled completely to
allow for the removal of the guard.
Figure 3-180
Anti-spill guards
Figure 3-181
R-pin holding anti-spill guard in place
8. Remove the deflector panel.
Use a ¾-inch wrench to remove the 4 bolts that hold the panel.
Figure 3-182
Deflector panel
9. Remove the transversal beam by taking out the 4 bolts (2 on each side) that retain it.
