138 General Maintenance

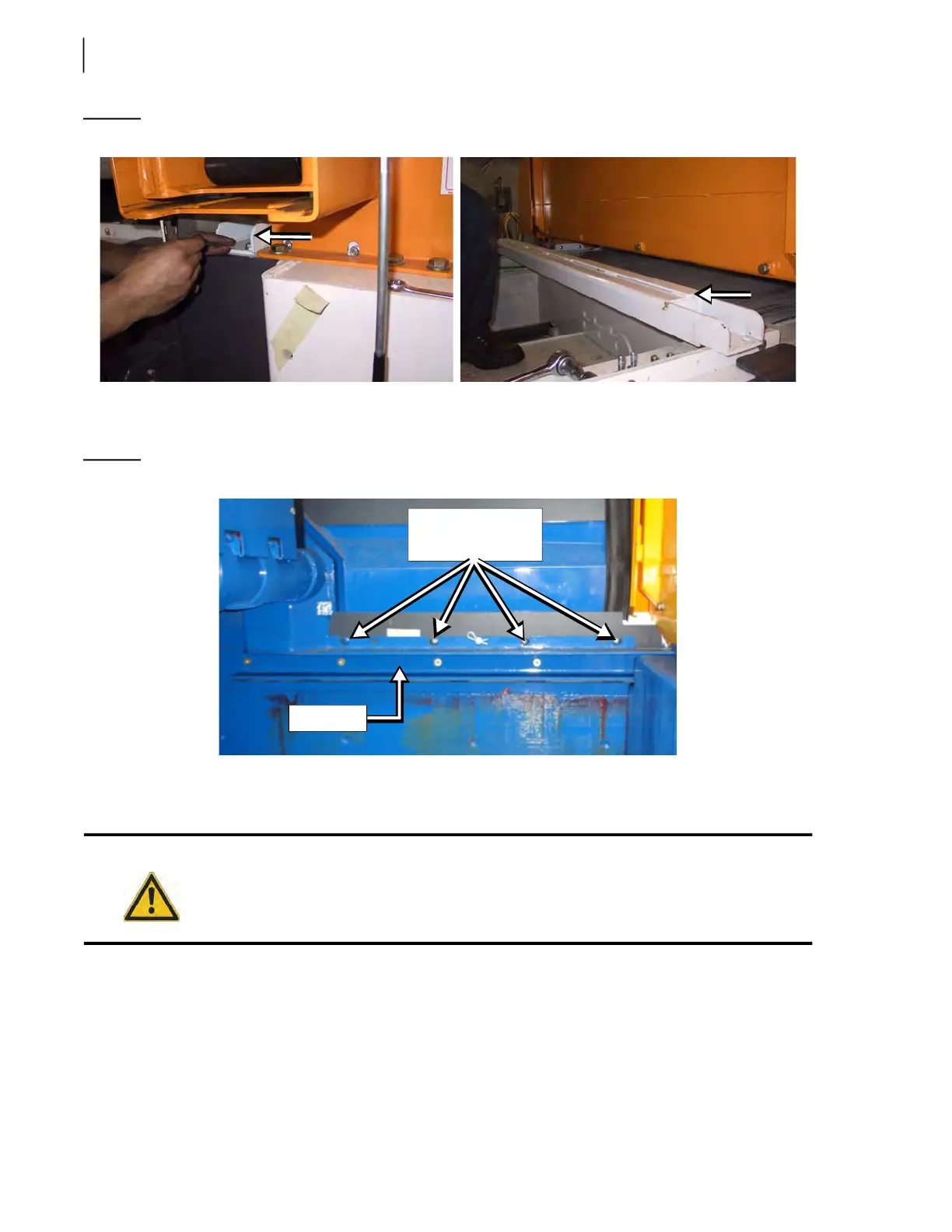

Figure 3-183
Transversal beam
10. Remove the upper part of both side rails (one on each side of the hopper) [see Figure 3-184].
4 bolts are to be taken out to remove this section of the side rail.
Figure 3-184
Side rail
11. Start the engine and engage the hydraulic pump.
12. Extend the packer to mid-stroke position.
13. Turn OFF the hydraulic pump and the engine.
14. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
15. Remove the arm stopper.
Before removing it, make sure you mark down the arm stopper location with a pen.
Danger!
Do not enter the hopper while the packer is moving.
Side rail
Bolts that hold the
upper part of the
side rail in place
