a) Start the engine and engage the hydraulic pump.
b) Retract the cylinder using the outside chute-operating lever/button.
c) Turn OFF the hydraulic pump and stop the engine.
d) Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on
page 14).
9 j. Remove the plate under the pillow block (see Figure 3-223).
Two bolts hold this part in place.
9 k. Unscrew the greasing hose from its attachment on the pillow block (see Figure 3-223).
9 l. Remove the pillow block.

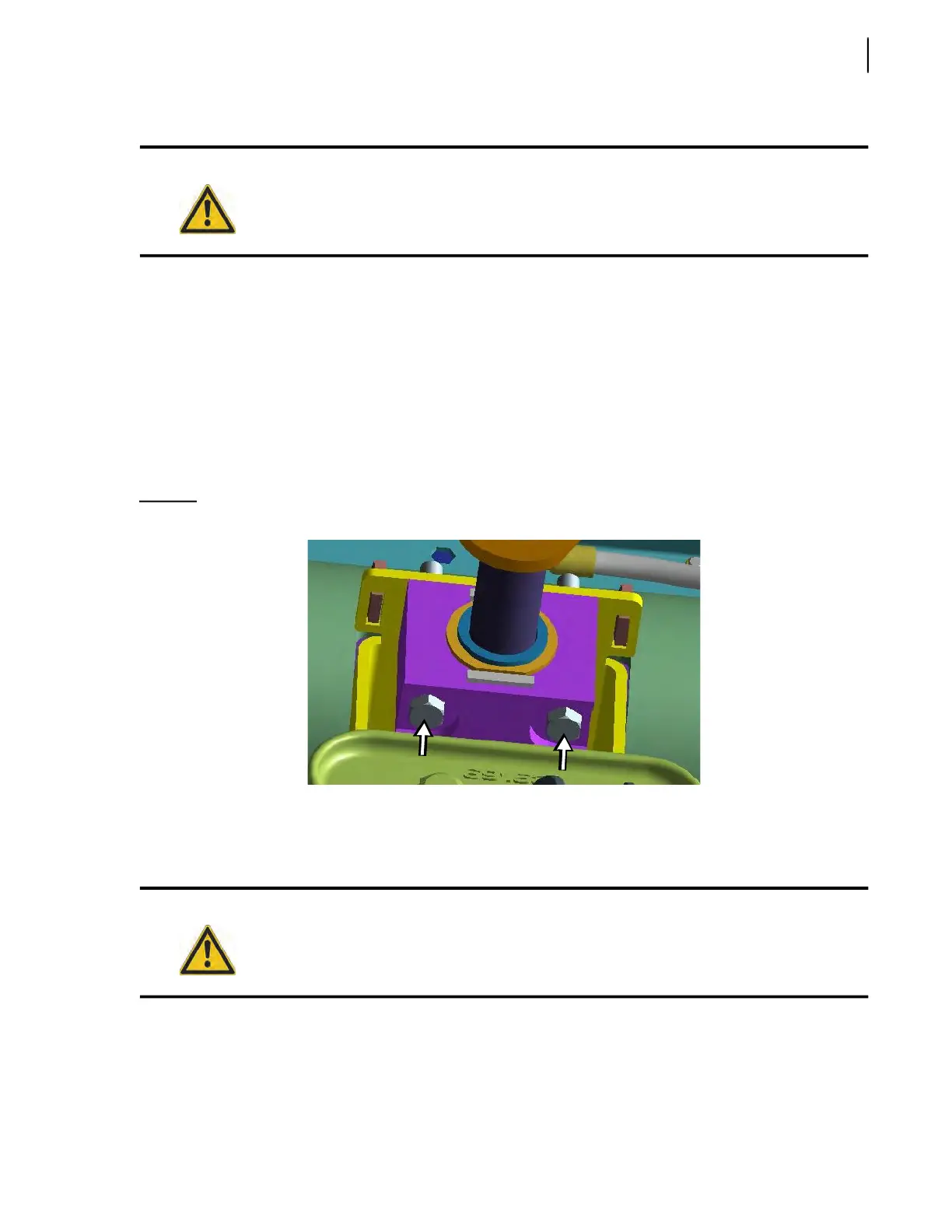

Two ½” bolts located under the pillow block hold this part in place (see Figure 3-224).
Figure 3-224
Bolts holding pillow block in
The rear section of the chute shaft is now free and unattached.
Next: Disconnecting the front section of the chute shaft.
9 m. Proceed with the removal of both floating panels (see Figure 3-225).
Danger!
Never enter the hopper while the hydraulic system is engaged.
Warning!
Beware of the floating panel pinch points. Keep your fingers and hands away from them.
