160 General Maintenance
Figure 3-225
Floating panels

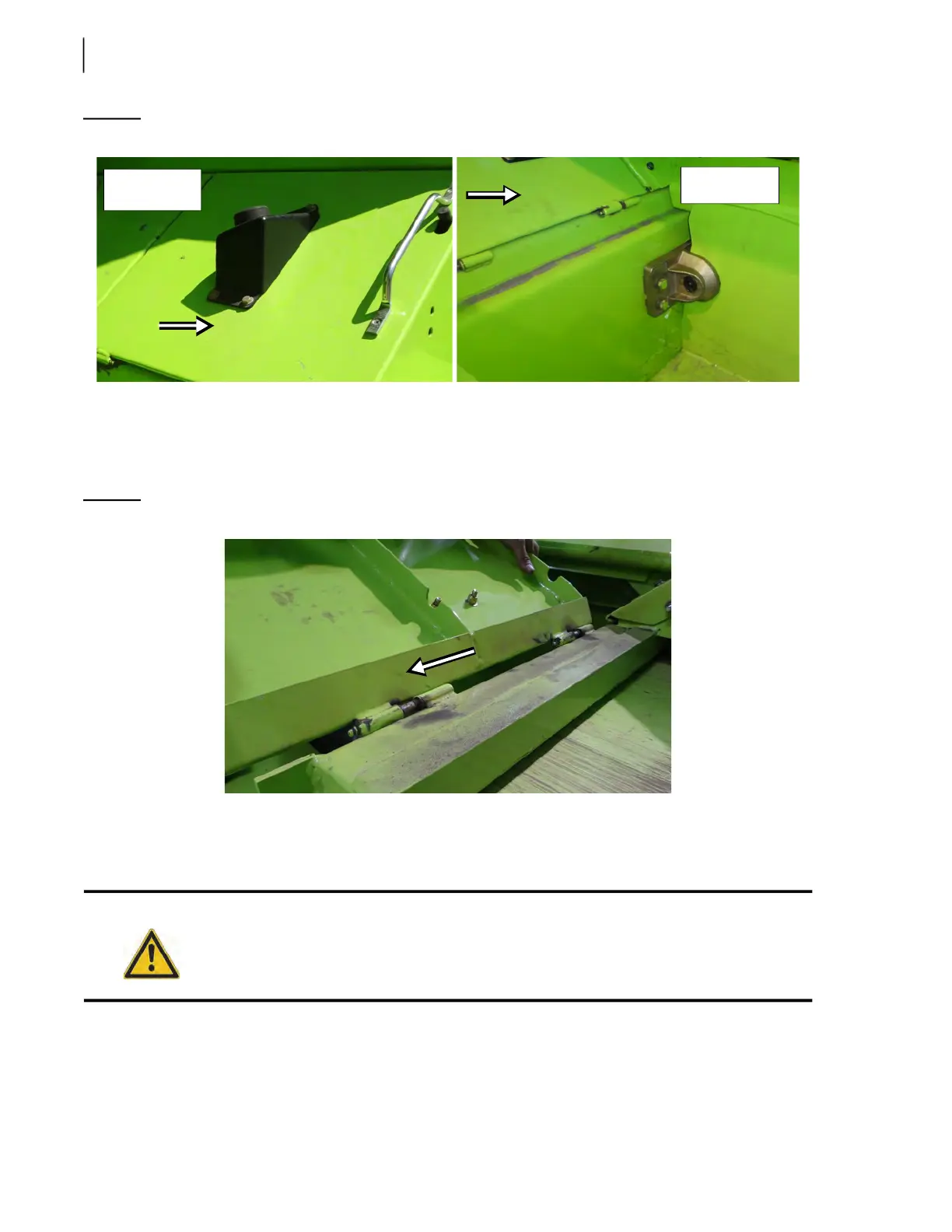

To remove the right-hand side floating panel: a) open the panel, b) slide it to the right and c) lift
it up (see Figure 3-226).
To remove the left-hand side floating panel: a) open the panel, b) slide it to the left and c) lift it
up.
Figure 3-226
Removing RHS floating panel
9 n. Remove the chute flange bearing (see Figure 3-227) by taking out the 2 bolts that hold the
bearing in place (see Figure 3-227).
The chute is now free to be pulled out.
Caution!
This task must be performed by 2 qualified mechanics.
Right side
floating panel
Left side
floating panel
