176 General Maintenance
There are 6 bolts that hold the divider to the packer panel. These bolts are to be taken out to
remove the hopper divider. A 5/8” nut located at the rear end of the divider must also be taken
out (see Figure 3-254).

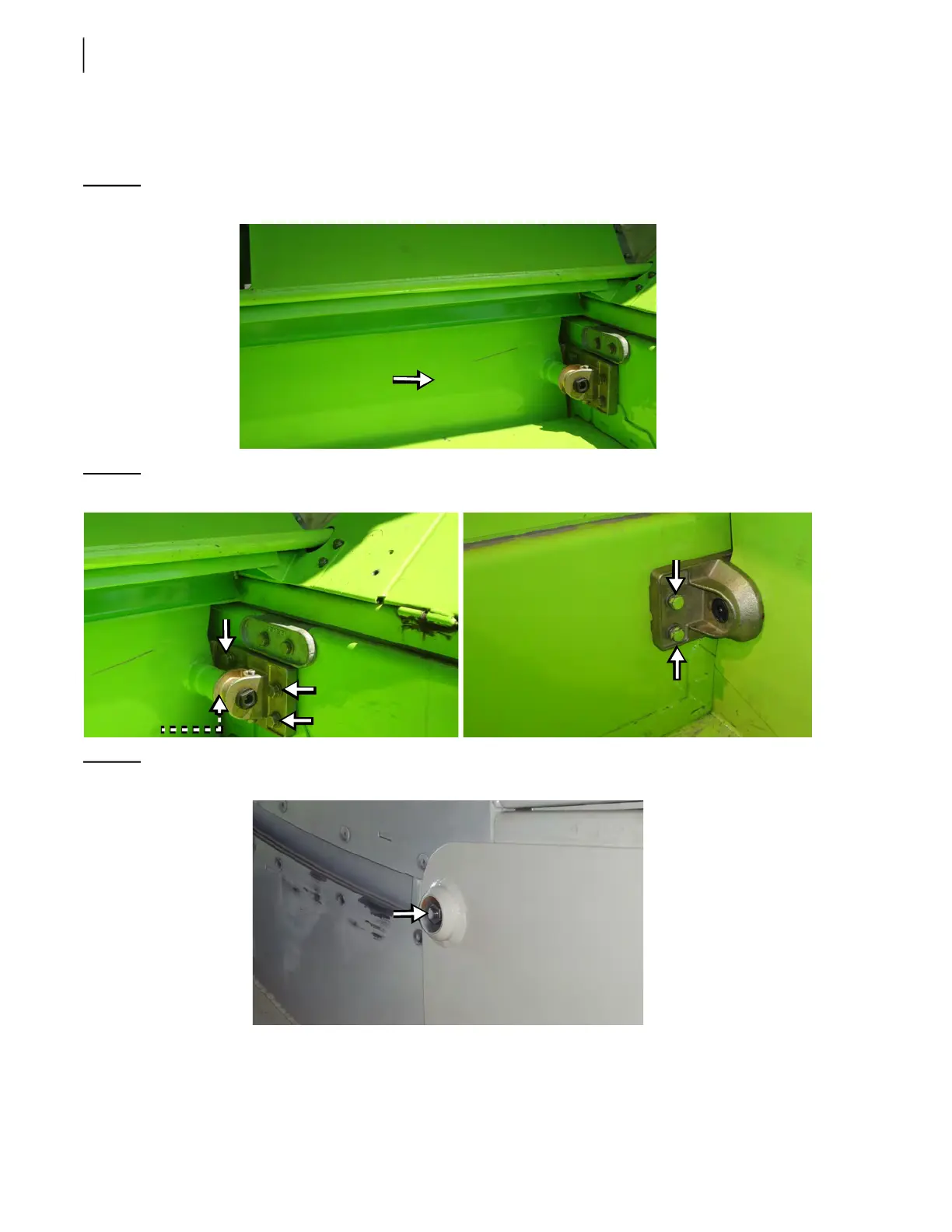

Figure 3-252 Hopper divider
Figure 3-253 Bolts holding divider (6)
Figure 3-254 5/8” nut
7. Remove the divider guard.
4 bolts are to be taken out to remove the divider guard (2 on each end).
