General Maintenance 177
Figure 3-255
Divider guard
8. Remove the chute and both floating panels (see Step 4 on page 64).
9. Start the engine and engage the hydraulic pump.
10. Fully extend the packer.
11. Turn OFF the hydraulic pump and the engine.
12. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).

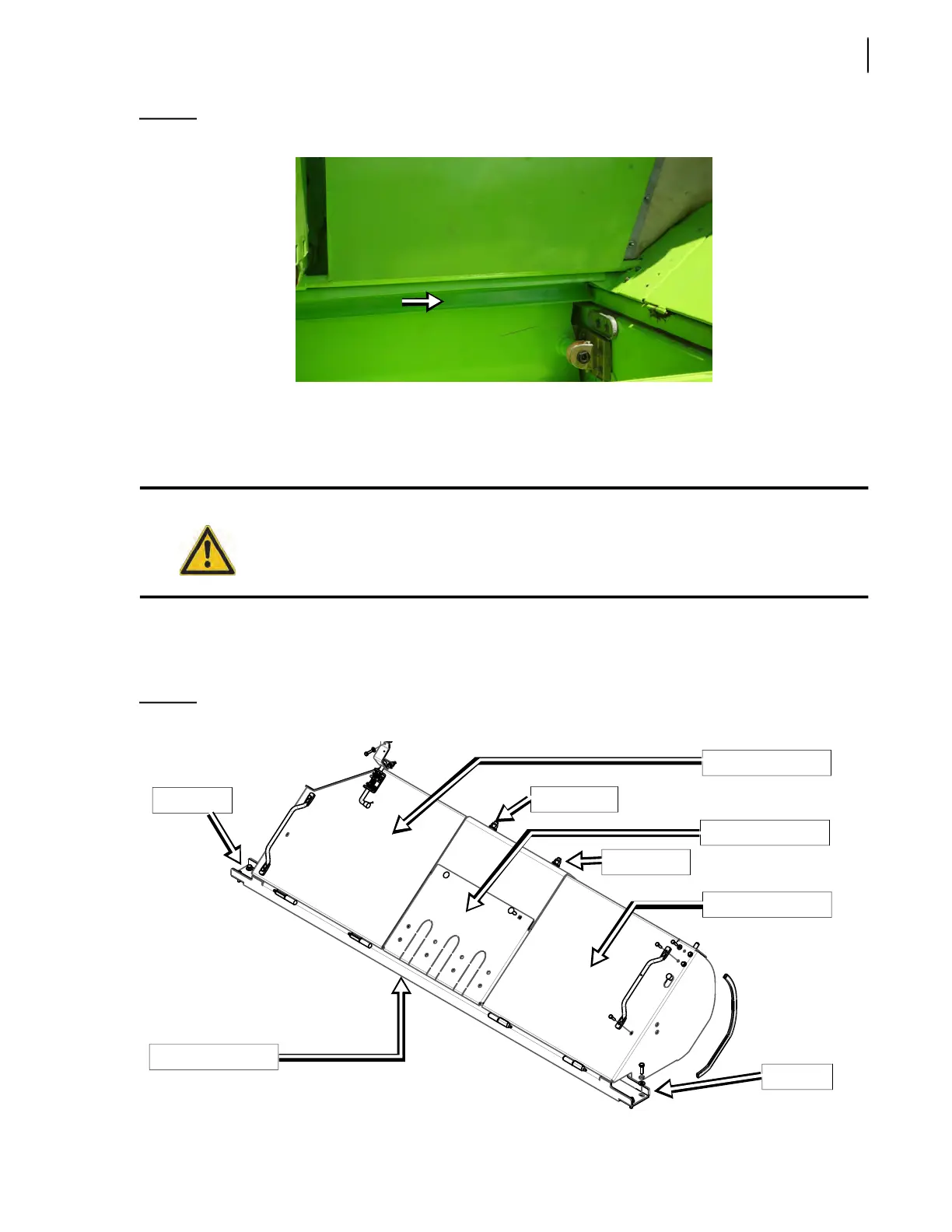

13. Remove the transversal beam (see Figure 3-256).
Figure 3-256
Floating panel assembly
Danger!
Do not enter the hopper while the packer is moving.
Transversal beam
Central cover
RHS floating panel
LHS floating panel
Bolts (2)
Carriage bolt
Carriage bolt
Bolts (2)
