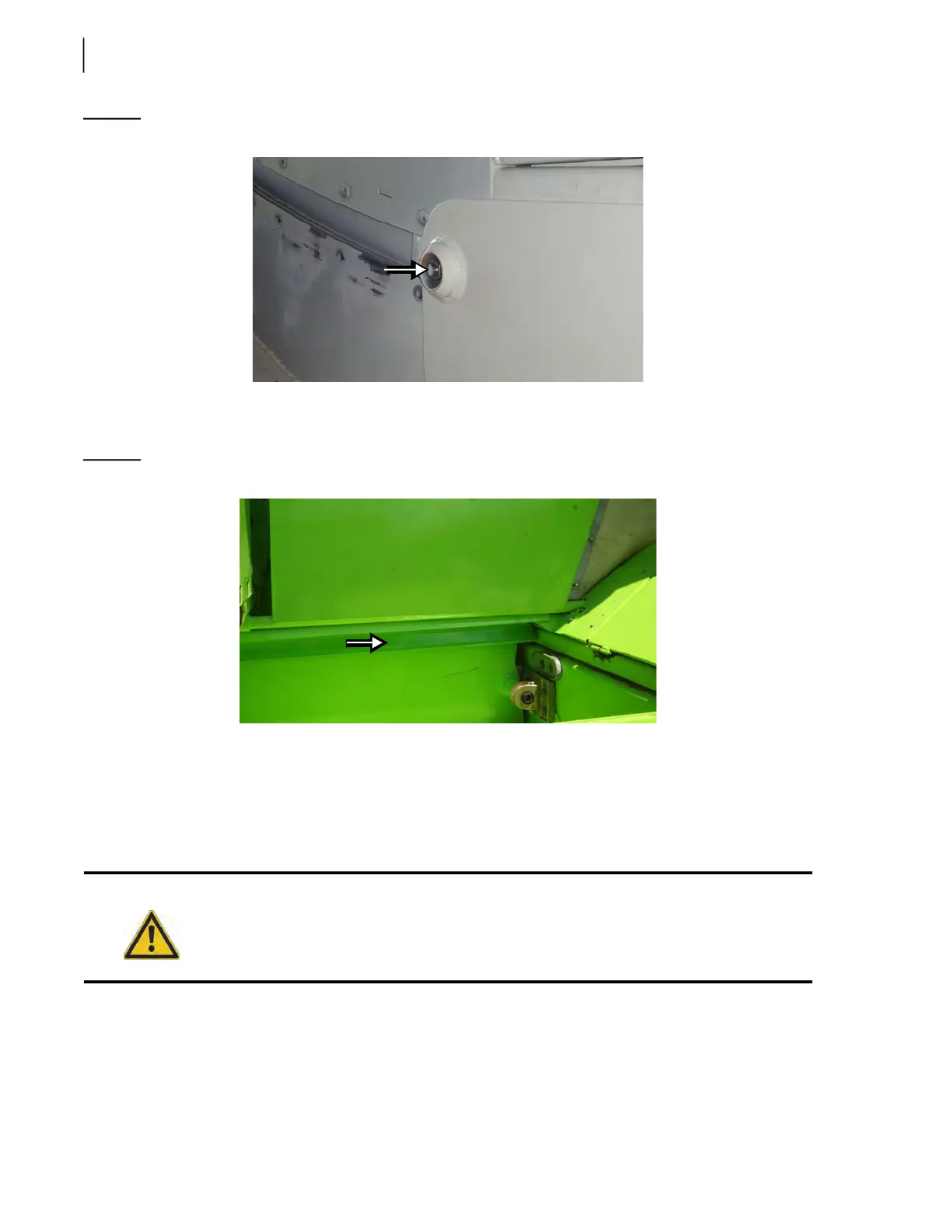

Figure 3-53
5/8” nut
3. Remove the divider guard.
4 bolts are to be taken out to remove the divider guard (2 on each end).
Figure 3-54
Divider guard
4. Remove the chute (see Figure 3-55). To perform this task, apply the following steps:
4 a. Use a suitable lifting device (e.g. sling or cable) to hold the chute in place.
4 b. Start the truck and engage the hydraulic pump.
4 c. Lower the crusher panel(s), if installed, using the CRUSHER PANEL DOWN switch on the in-
cab control panel.
Danger!
Never enter the hopper while the hydraulic system is engaged.
