General Maintenance 65

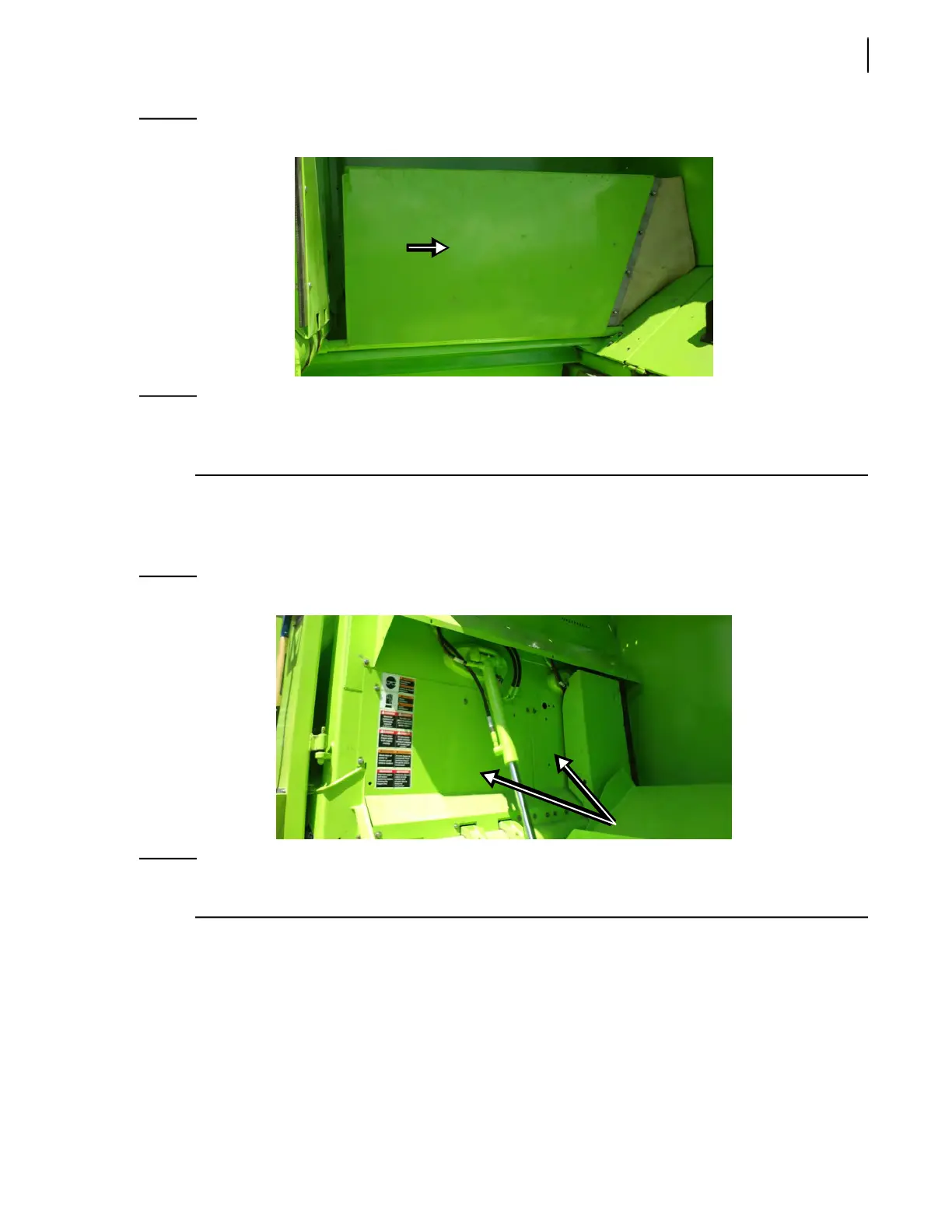

Figure 3-55
Chute
NOTE: The EXPERT™ may be equipped with a dual split crusher panel, or a single split crusher panel
which would be located either on the right-hand side or on the left-hand side of the hopper
(see Figure 3-23).
4 d. Turn OFF the hydraulic pump and the engine.
4 e. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
4 f. Remove both protective panels that are fixed to the rear hopper wall (see Figure 3-56).
Figure 3-56
Protective panels
NOTE: On some trucks, especially those with a single split crusher panel, the crusher panel deflector
also needs to be removed (see Figure 3-57).
Once the protective covers are removed, you will be able to access the area where the chute
cylinder and the rear end section of the chute shaft are.
