66 General Maintenance

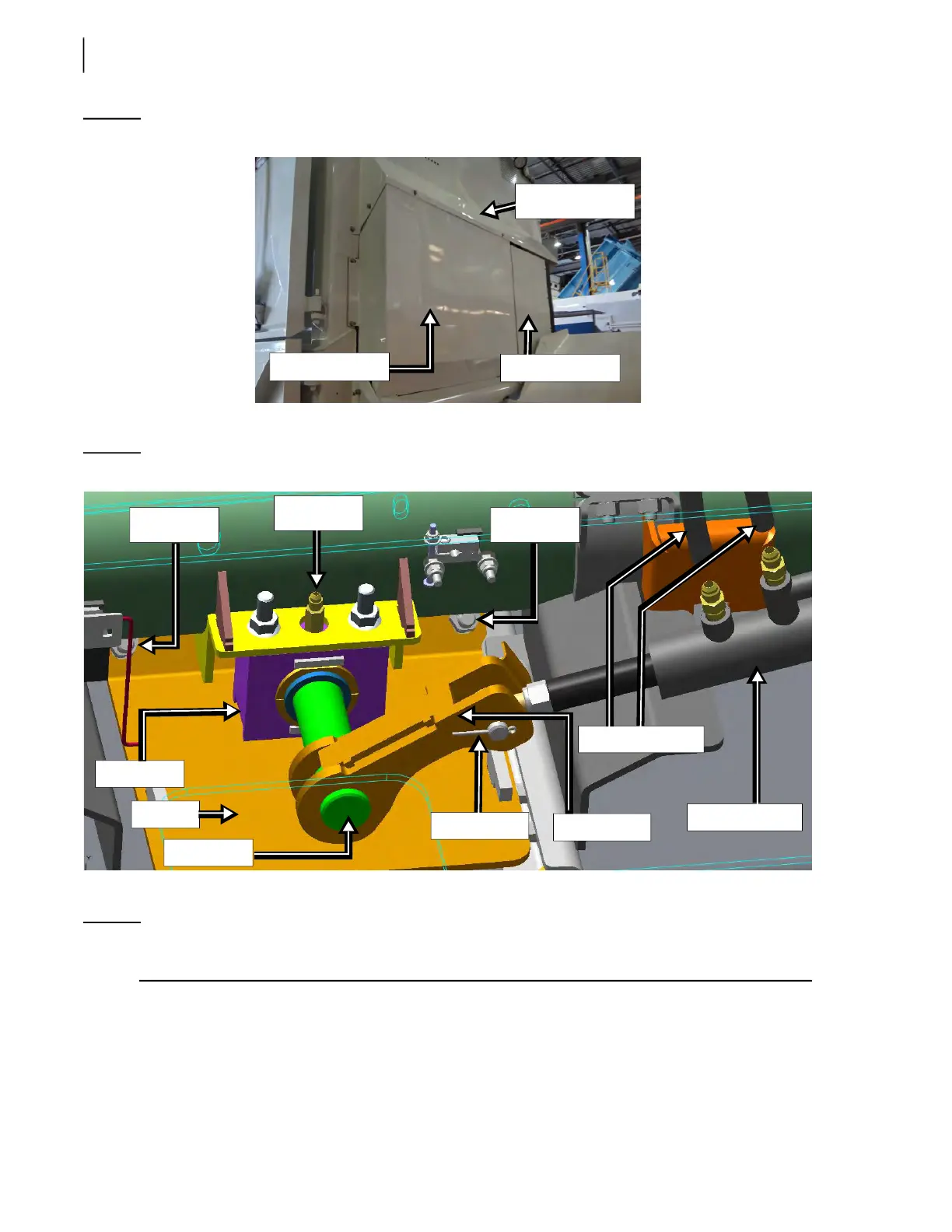

Figure 3-57
Hopper rear side
4 g. Remove the cotter pin (see Figure 3-58) that holds the cylinder pin in.
Figure 3-58
Chute cylinder and related parts
4 h. Remove the cylinder pin that secures the cylinder rod to the chute lever (see Figure 3-58).
NOTE: Take care not to cause misalignment of nearby both limit switches when disconnecting the
chute-operating cylinder.
4 i. If needed, retract the chute-operating cylinder. To do so:
Protective cover
Crusher panel
Crusher panel
deflector
Hydraulic hoses
Chute cylinder
Cotter pin
Chute shaft
Pillow block
Grease
fitting
Plate
holding bolt
Plate
holding bolt
Chute lever
Plate
