a) Start the engine and engage the hydraulic pump.
b) Retract the cylinder using the outside chute-operating lever/button.
c) Turn OFF the hydraulic pump and stop the engine.
d) Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on
page 14).
4 j. Remove the plate under the pillow block (see Figure 3-58).
Two bolts hold this part in place.
4 k. Unscrew the greasing hose from its attachment on the pillow block (see Figure 3-58).
4 l. Remove the pillow block.
Two ½” bolts located under the pillow block hold this part in place (see Figure 3-59).

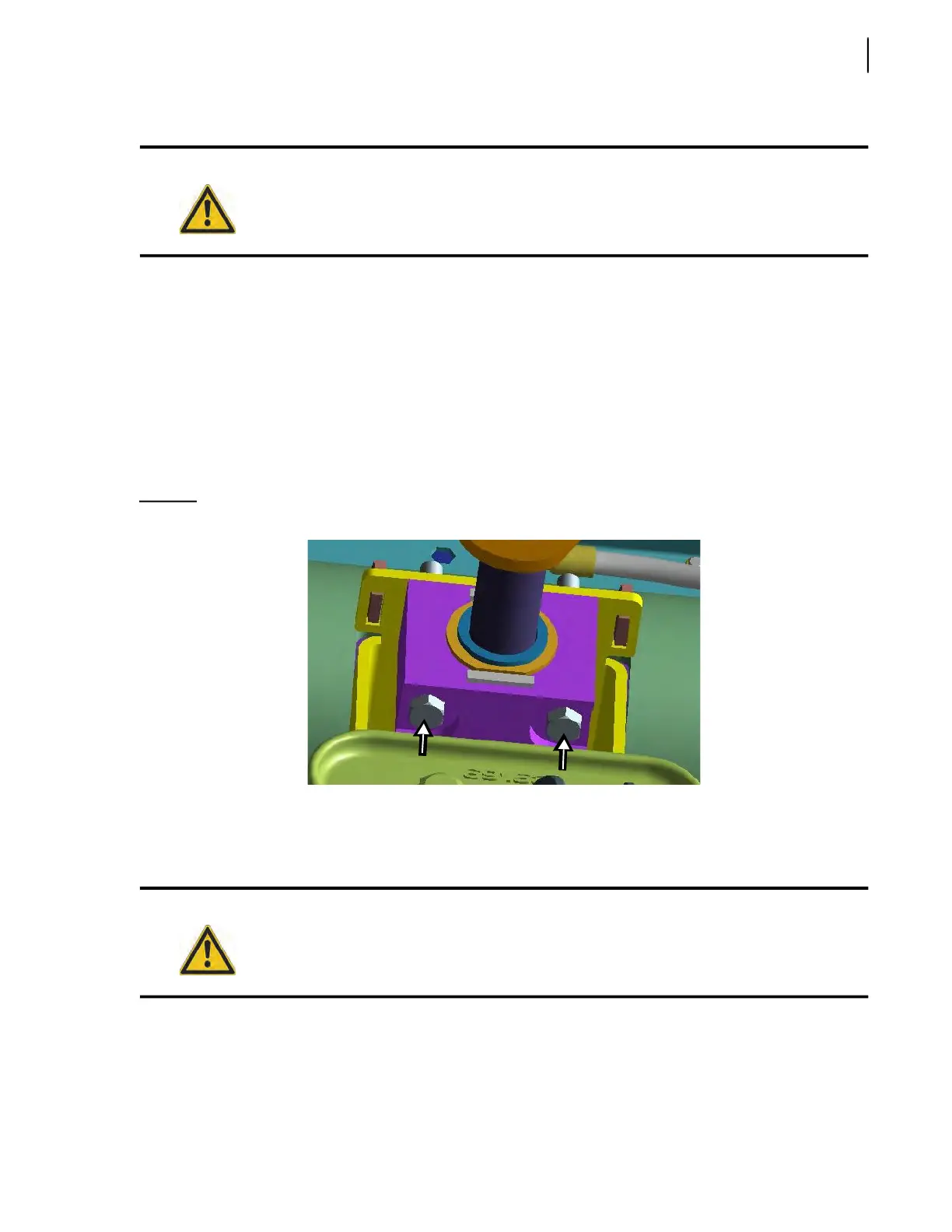

Figure 3-59
Bolts holding pillow block in
The rear section of the chute shaft is now free and unattached.
Next: Disconnecting the front section of the chute shaft.
4 m. Proceed with the removal of both floating panels (see Figure 3-60).
Danger!
Never enter the hopper while the hydraulic system is engaged.
Warning!
Beware of the floating panel pinch points. Keep your fingers and hands away from them.
