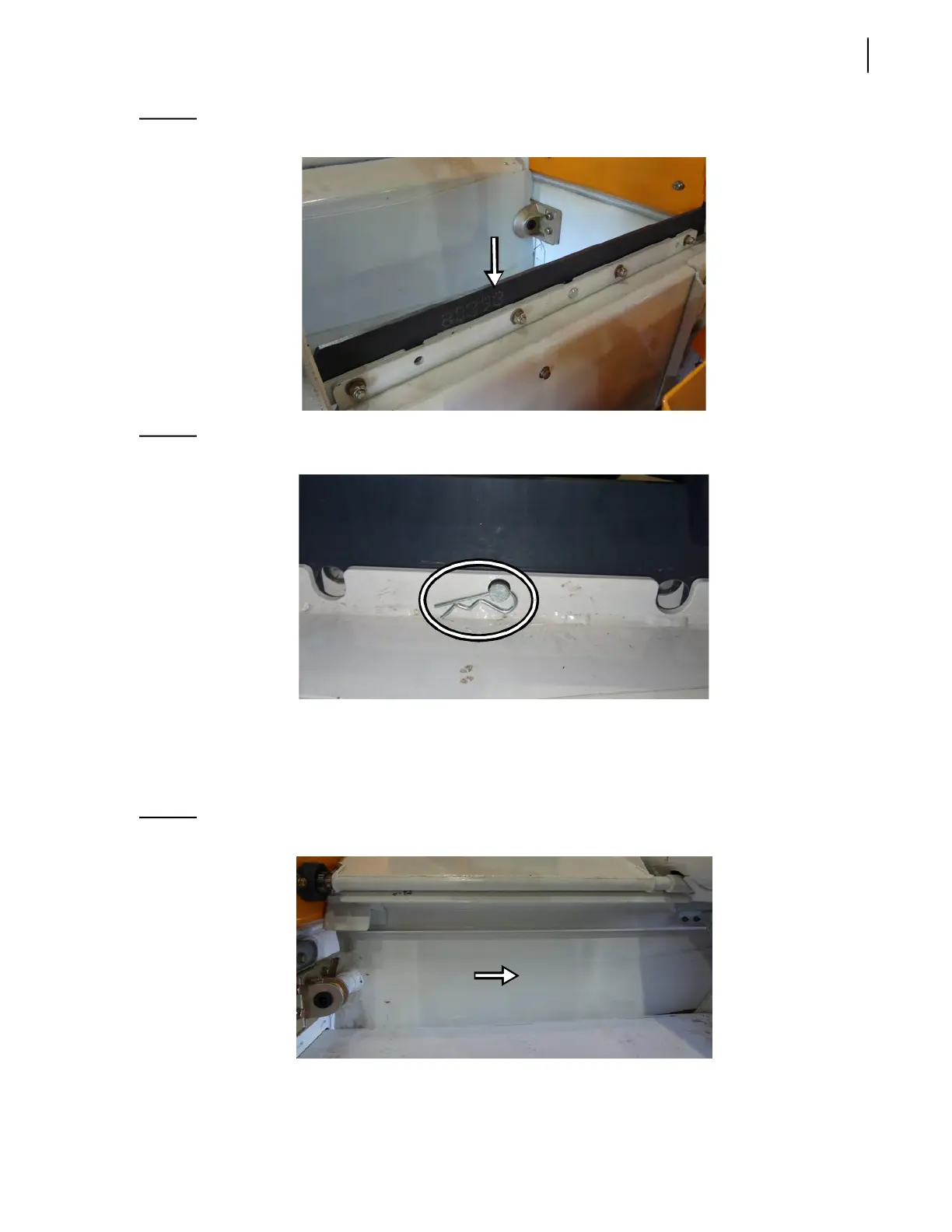

General Maintenance 185
Figure 3-265
Anti-spill guard
Figure 3-266
R-pin holding anti-spill guard in place
6. Remove the hopper divider (see Figure 3-267).
There are 6 bolts that hold the divider to the packer panel. These bolts are to be taken out to
remove the hopper divider. A 5/8” nut located at the rear end of the divider must also be taken
out (see Figure 3-269).
Figure 3-267
Hopper divider
