366 Multiplexing
Press “Esc” to return to the preceding page.
Press the “Force” button to display the Force page.
NOTE: To go back to the Main Page or Main Menu, press “Esc” as needed until the desired page is
displayed.
Force
The Force page is accessible from the Output Status page. Just press the corresponding button to
access the Force page.

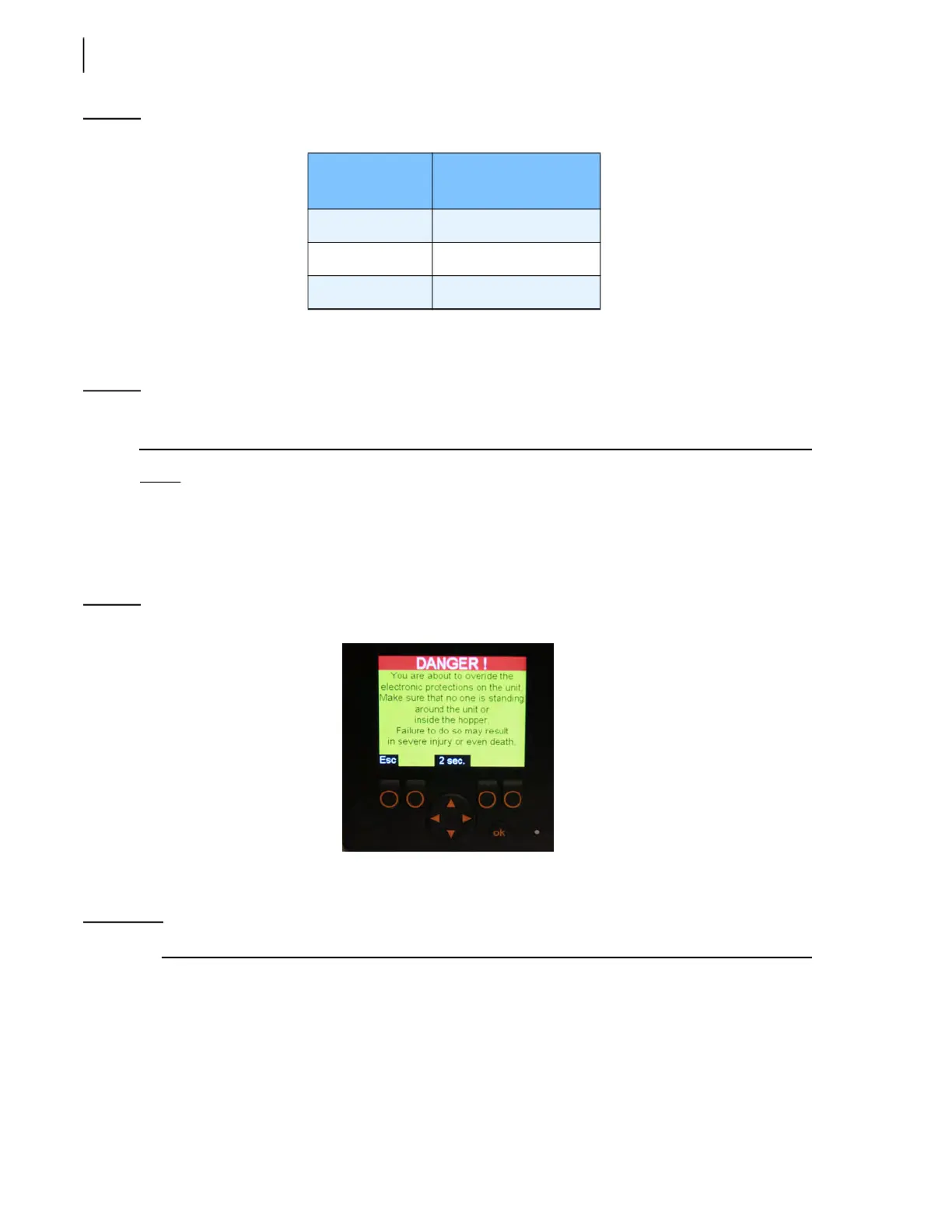

But before the Force page is displayed, a warning message appears on the monitor screen (see Figure
9-11).
Figure 9-11
Warning message
This message stays on for 15 seconds. Then an “OK” prompt appears on the lower right-end corner
of the screen.
IMPORTANT: It is very important to read this message entirely before accessing the next page.
Green Active
Red Closed short-circuit
Yellow Open circuit
Table 4 Colored rectangles
Rectangles
(outputs)
Function Status
To Next Page
