General Maintenance 53
2. Enter the hopper and proceed with the removal of both floating panels (see Figure 3-30).

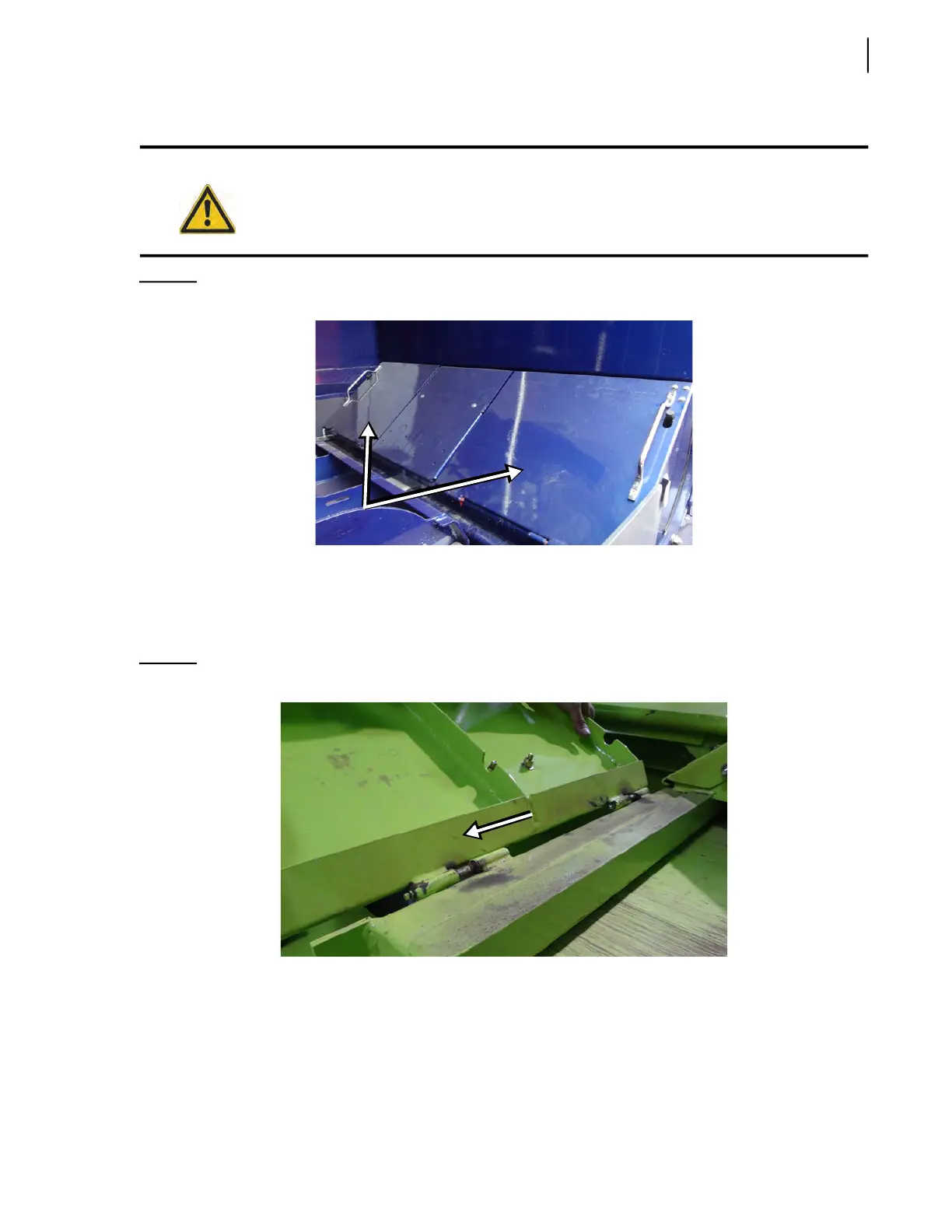

Figure 3-30
Floating panels
To remove the right-hand side floating panel: a) open the panel, b) slide it to the right and c) lift
it up (see Figure 3-31).
To remove the left-hand side floating panel: a) open the panel, b) slide it to the left and c) lift it
up.
Figure 3-31
Removing RHS floating panel
3. Remove the transversal beam (see Figure 3-32).
Warning!
Beware of the floating panel pinch points. Keep your fingers and hands away from them.
