Labrie EXPERT - Page 64

54 General Maintenance

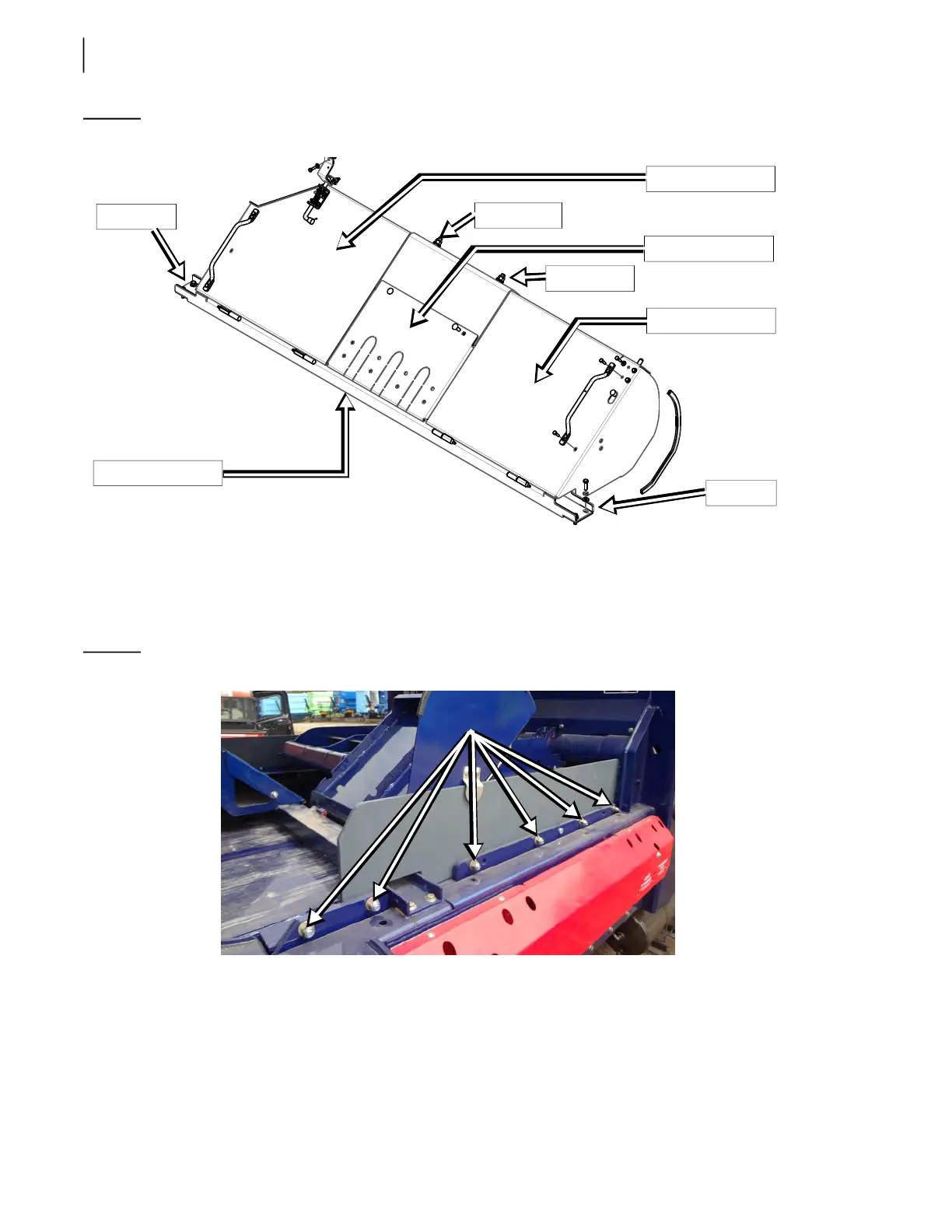

Figure 3-32 Floating panel assembly
6 bolts are to be taken out including 2 carriage bolts to remove the beam and unloose the central
cover (see Figure 3-32).
4. Remove the upper part of both side rails (one on each side of the hopper).
6 bolts are to be taken out to remove this section of the side rail (see Figure 3-33).
Figure 3-33 Bolts to be taken out to remove upper part of side rail
5. Start the engine and engage the hydraulic pump.
Transversal beam
Central cover
RHS floating panel
LHS floating panel
Bolts (2)
Carriage bolt
Carriage bolt
Bolts (2)
