General Maintenance 57

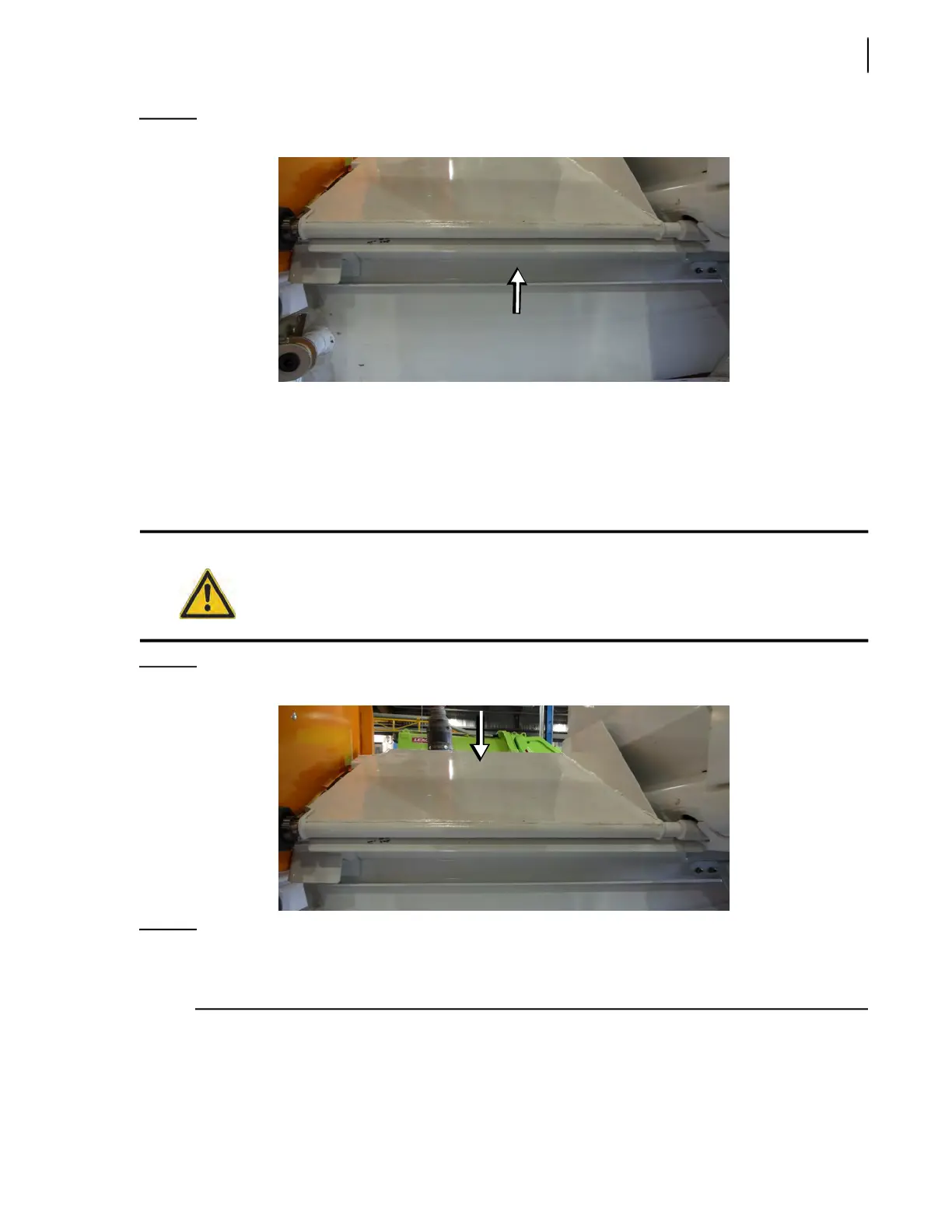

Figure 3-39
Divider guard
4. Remove the chute (see Figure 3-40). To perform this task, apply the following steps:
4 a. Use a suitable lifting device (e.g. sling or cable) to hold the chute in place.
4 b. Start de truck and engage the hydraulic pump.
4 c. Lower the crusher panel(s), if installed, using the CRUSHER PANEL DOWN switch on the in-
cab control panel.
Figure 3-40
Chute
NOTE: The EXPERT™ may be equipped with a dual split crusher panel, or a single split crusher panel
which would be located either on the right-hand side or on the left-hand side of the hopper
(see Figure 3-22).
4 d. Turn OFF the hydraulic pump and the engine.
4 e. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 14).
4 f. Remove both protective panels that are fixed to the rear hopper wall (see Figure 3-41).
Danger!
Never enter the hopper while the hydraulic system is engaged.
