60 General Maintenance

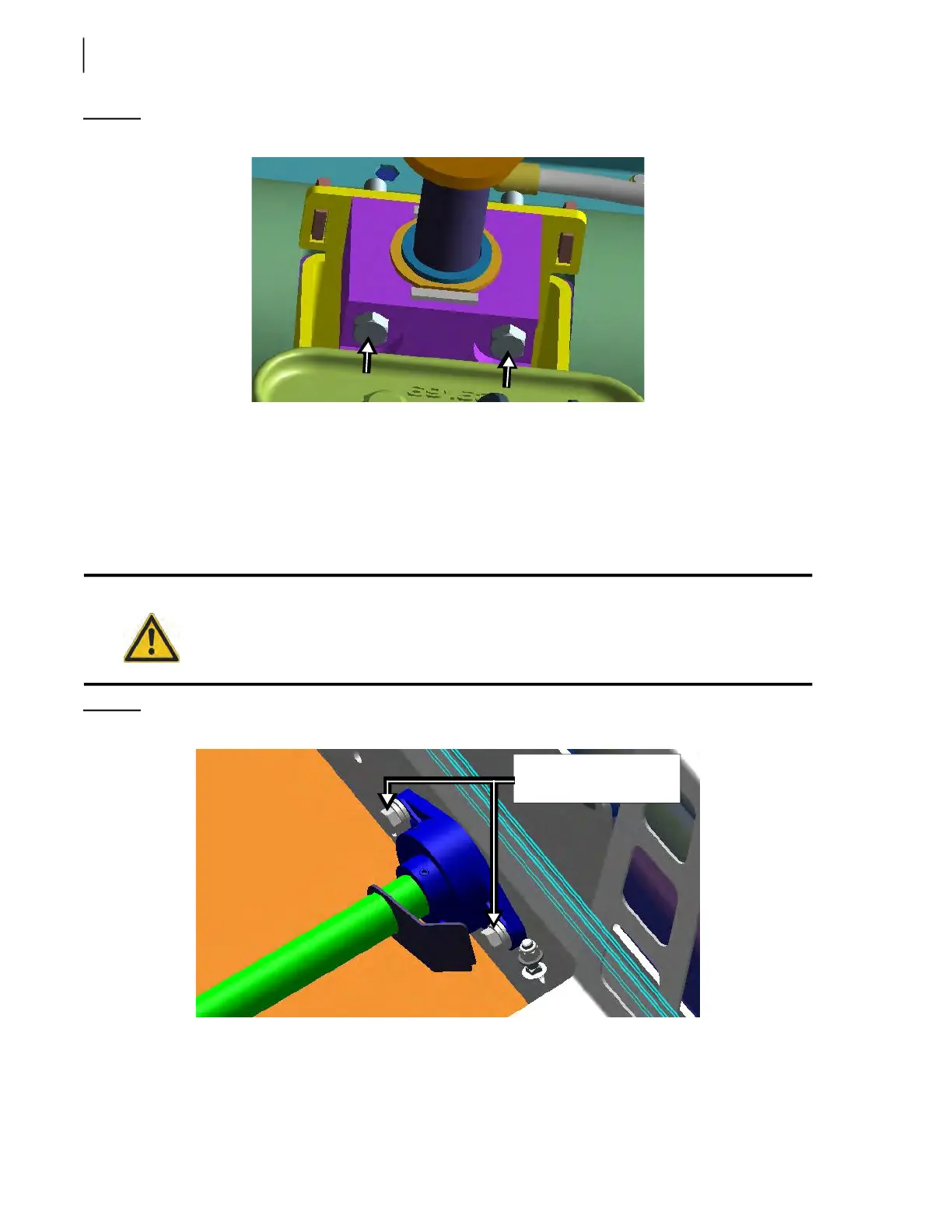

Figure 3-44
Bolts holding pillow block in
The rear section of the chute shaft is now free and unattached.
Next: Disconnecting the front section of the chute shaft.
4 m. Remove the flange bearing that is bolted to the automated arm assembly to free the chute
shaft front end.
Two bolts need to be taken out to remove the flange bearing (see Figure 3-45).
The chute is now free to be pulled out.
Figure 3-45
Flange bearing
5. Remove the deflector panel on the automated arm assembly (see Figure 3-46).
Use a ¾-inch wrench to remove the 4 lower bolts that hold the panel.
Caution!
This task must be performed by 2 qualified mechanics.
Remove these 2 bolts to
free the flange bearing
