NVMe cable routing
From To
BP3: NVMe 0-1, 2-3 Onboard: PCIe 1, PCIe 2
BP3: NVMe 4-5, 6-7
Onboard: PCIe 3, PCIe 4
Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n

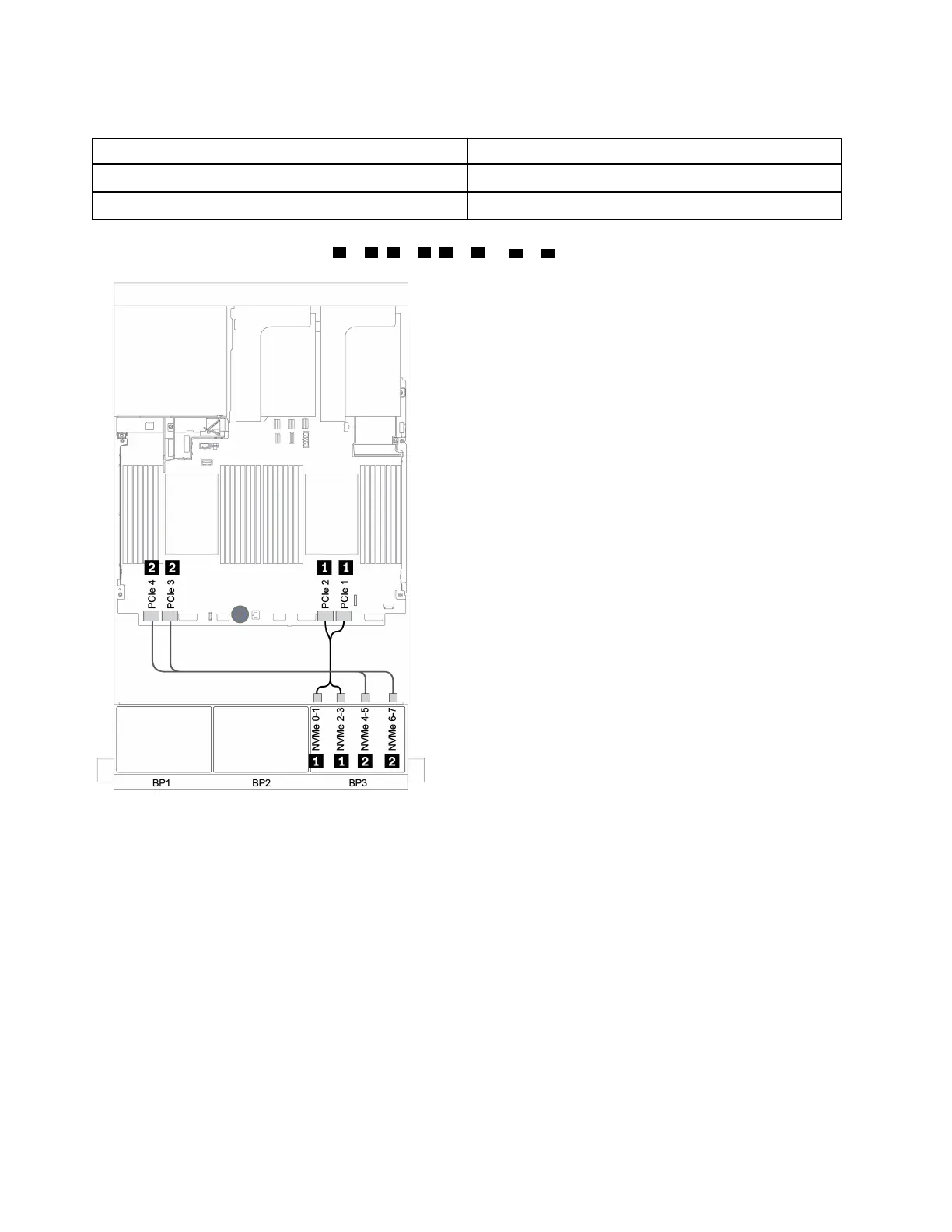

Figure 105. NVMe cable routing (two processors)
150 ThinkSystem SR650 V2Maintenance Manual
