• Read “Installation Guidelines” on page 185 to ensure that you work safely.
• Power off the server and disconnect all power cords for this task.
A video for this task is available at:
• Youtube:
https://www.youtube.com/playlist?list=PLYV5R7hVcs-DqVplE36HIvdM_sq_Auw3U
• Youku: https://list.youku.com/albumlist/show/id_59643657.html
Procedure
Step 1. Select the appropriate air baffle for your server.
Step 2. (Optional) Install the standard air baffler filler.
Notes:
• If the server is installed with only one processor, a filler needs to be installed on the standard air
baffle for processor 2.
• If the server is installed with T-shape processors, a filler needs to be installed on the standard air
baffle for each processor.

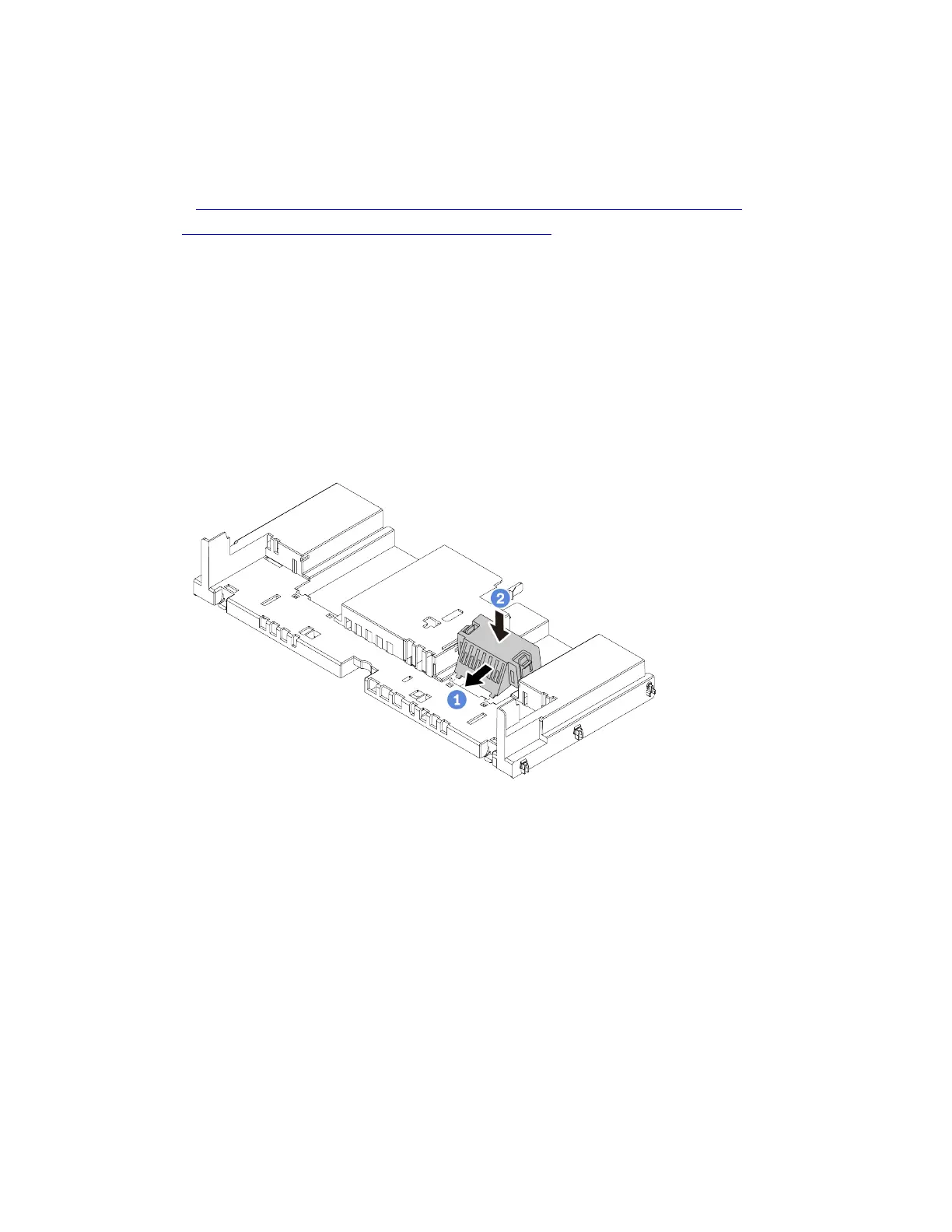

Figure 150. Air baffle filler removal
Chapter 4. Hardware replacement procedures 199
