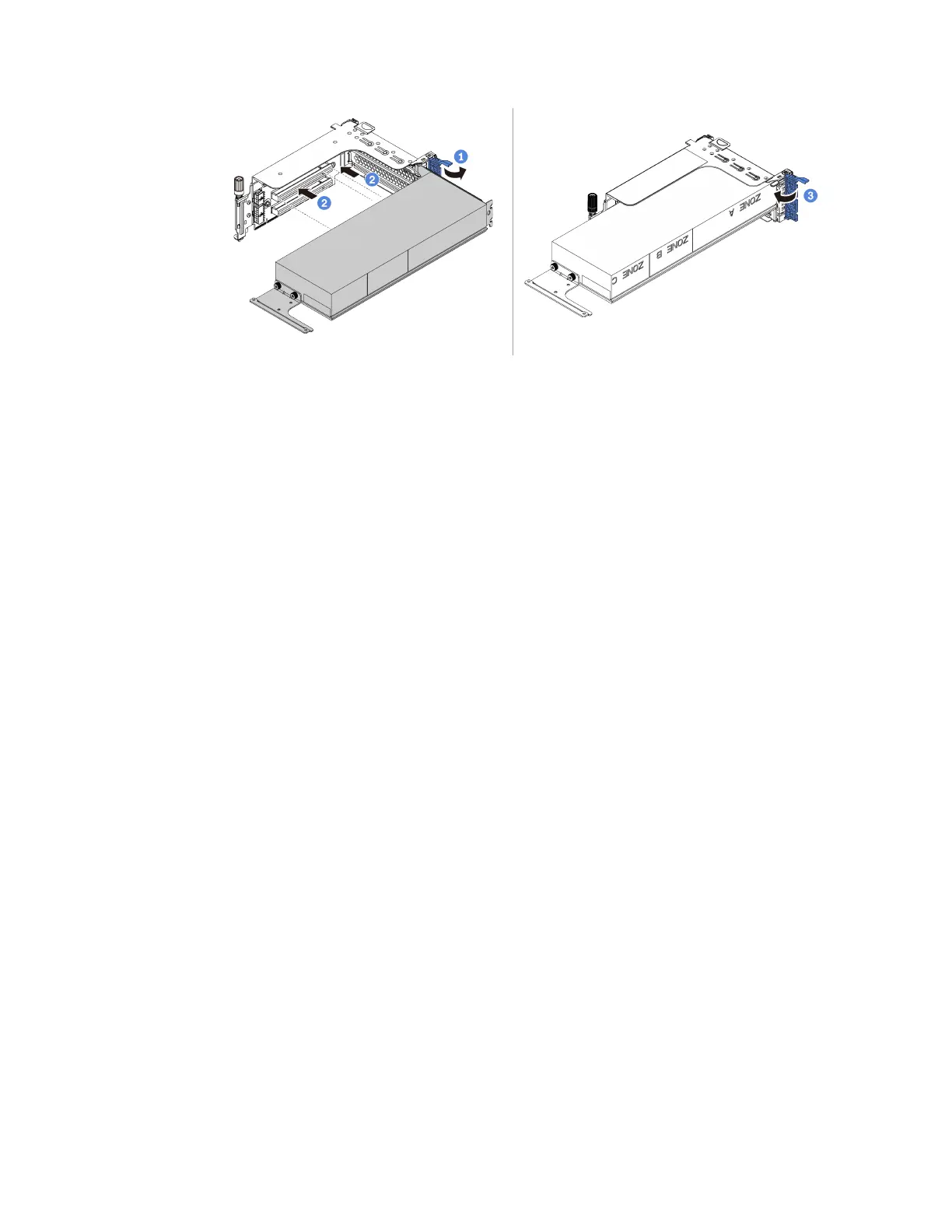

Figure 167. Installing the GPU adapter
a. Open the blue latch on the riser cage.
b. Align the GPU adapter with the PCIe slot on the riser card. Then, carefully press the GPU
adapter straight into the slot until it is securely seated.
c. Close the blue latch.
Step 4. Connect the power cable to the power connector on the GPU adapter. See “GPUs” on page 73.
Step 5. Install the riser assembly.
Chapter 4. Hardware replacement procedures 219
