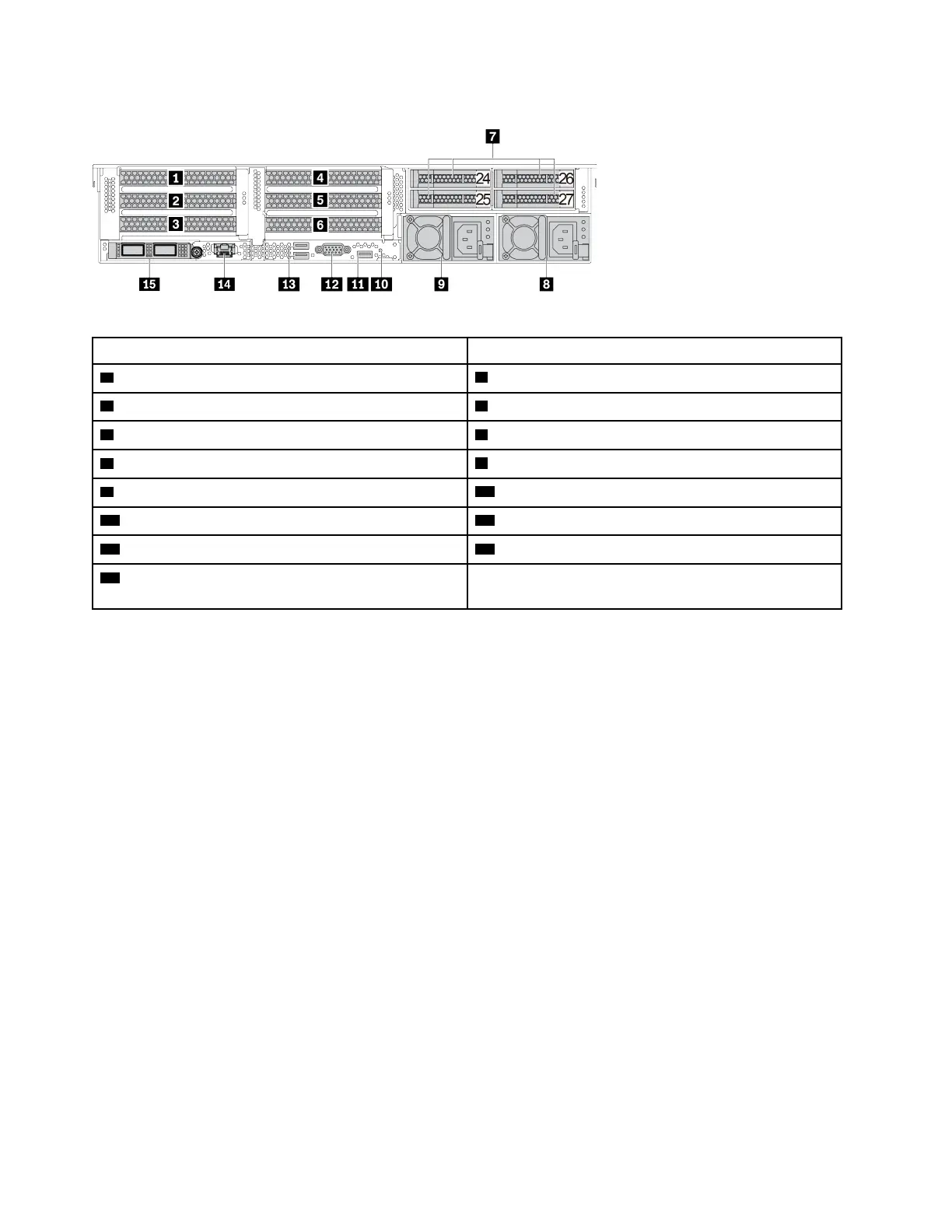

Rear view with four 2.5-inch rear drive bays and six PCIe slots
Table 15. Components on the rear of the server
Callout Callout
1 PCIe slot 1 (on riser 1 assembly) 2 PCIe slot 2 (on riser 1 assembly)
3 PCIe slot 3 (on riser 1 assembly) 4 PCIe slot 4 (on riser 2 assembly)
5 PCIe slot 5 (on riser 2 assembly) 6 PCIe slot 6 (on riser 2 assembly)
7 2.5-inch rear drive bays (4)
8 Power supply 1
9 Power supply 2 (optional)
10 NMI button
11 USB 3 (5 Gbps) connector (DCI) 12 VGA connector
13 USB 3 (5 Gbps) connectors (DCIs) 14 XClarity Controller network connector
15 Ethernet connectors on OCP 3.0 Ethernet adapter
(optional)
Note: For more information about each component, see “Rear components overview” on page 50.
