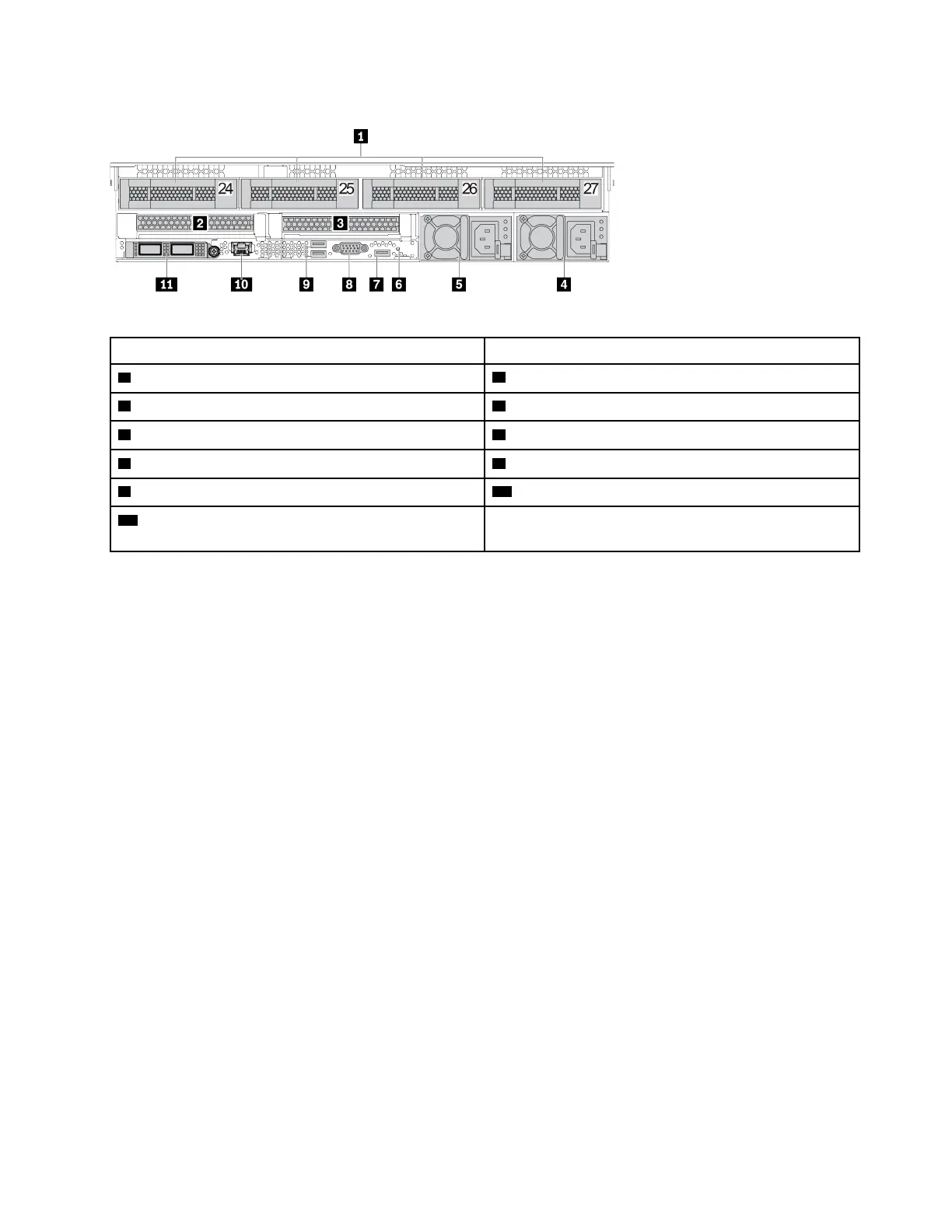

Rear view with four 3.5-inch rear drive bays and two PCIe slots
Table 18. Components on the rear of the server
Callout Callout
1 3.5-inch rear drive bays (4) 2 PCIe slot 3 (on riser 1 assembly)
3 PCIe slot 6 (on riser 2 assembly)
4 Power supply 1
5 Power supply 2 (optional)
6 NMI button
7 USB 3 (5 Gbps) connector (DCI) 8 VGA connector
9 USB 3 (5 Gbps) connectors (DCIs) 10 XClarity Controller Network connector
11 Ethernet connectors on OCP 3.0 Ethernet adapter
(optional)
Note: For more information about each component, see “Rear components overview” on page 50.
Chapter 2. Server components 49
