Lenze 8200 - Page 208

Configuration
8200SHB01997-70
Adjustment C111 820X: Voltage at terminal 62, if C108 = 220
821X/822X/824X: Voltage at terminal 62, if C108 = 128
-0- 6 V, if f
d
=f
dmax
-1- 3 V, if C056 = 100 %
-2- 3 V, if C054 = rated controller current
-3- 820X: 6 V, if V
DC
= 380 VDC
821X/822X/824X: 6 ,V if V
DC
= 1000 VDC
Series “HVAC”: -4- 3 Vat rated power, P
r
= C052 *C056
-5- 4.8 V at motor voltage = 400 V
-6- 2 V, if C011 = 50 Hz, C050 = 20 Hz
-7-
Monitor output voltage [V]  6.00Vô
f
d
 C011
C011  C010
-8- 6 V, if C051 = f
dmax
Important
Series “HVAC”:
- The gain of the analog output (C108)can be adjusted ONLINE.
- C111 = -9- to C111 = -25- correspond to the relayoutput functions C008 and C117:
-LOW=0V
-HIGH=10V
Series “HVAC”:

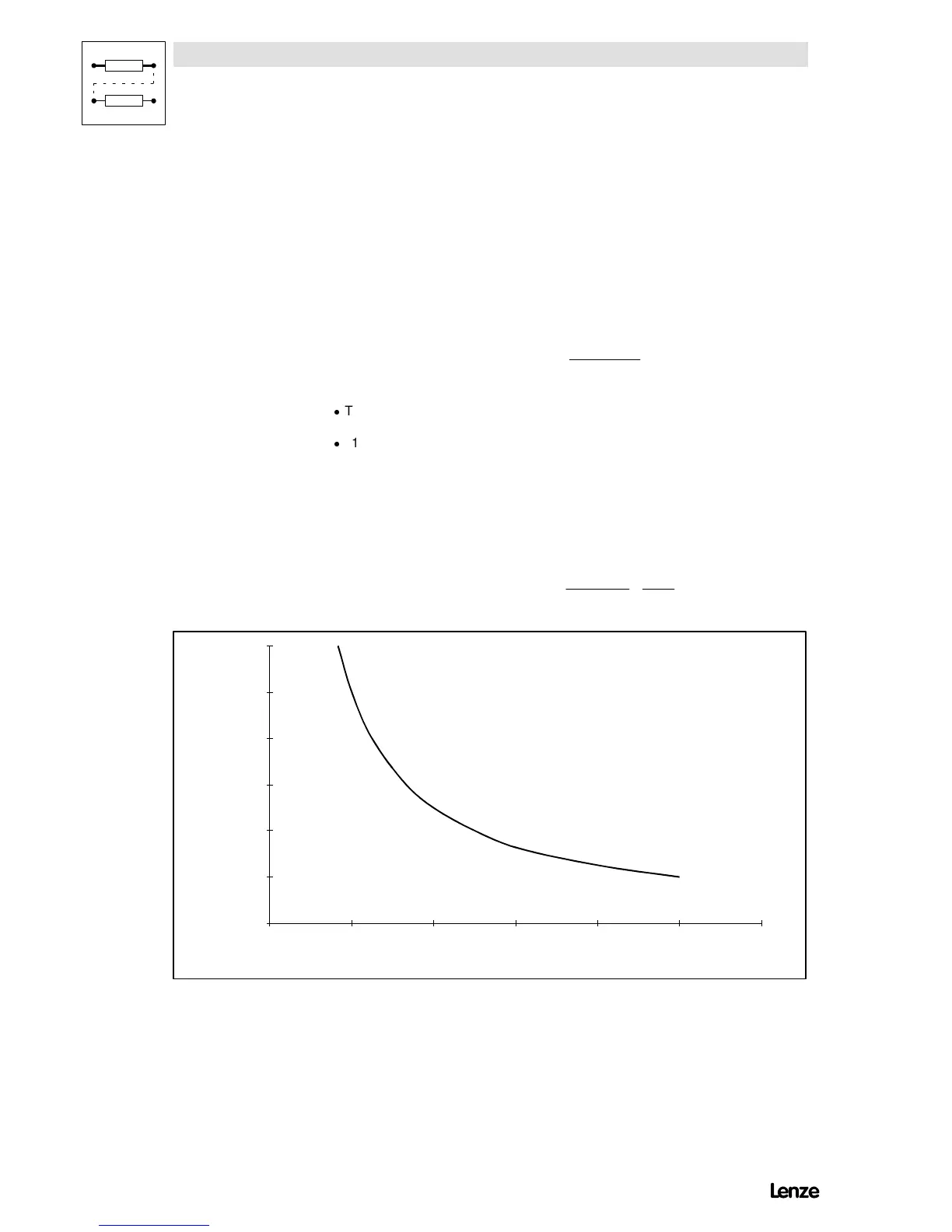

C111 = -6- Normalisation of the monitor output voltage with a reciprocal field frequency output:
0RQLWRU RXWSXW YROWDJH >9@   9 ô
&



>
+
]
@
& >+]@
ô
&

6.00
5.00
4.00
3.00
2.00
1.00
0.00
0
10 20 30 40 50
60
Monitor output voltage [V]
fd [Hz]
C108 = 128
