Installation
8200SHB01994-30
Types 8221/8222/8223
PE
T1
T2
UVW
Correct screen connection with screened cables:
- Fixthe screen of the motor cable and thermal
contact. Do not use as a strain relief!
- To improve the screen connection: Connect the
screen additionally to the stud PE next to the
controller.
Types 8224/8225
T1
T2
PE
UV
W
M5 X 12


- Strain relief by using cable binders ➀.
- Correct screen connection with screened cables:
- Apply motor cable screen to the screening
plate using clamp and screws M5x12
➁.
- Connect thermal contact screen to the stud PE
next to the motor connection over a large
surface.
Types 8226/8227
T1
T2
PE

U
V
W
M5 X 12
M4 X 12


- Strain relief by using cable clamps and screws
M4x12
➂.
- An additional strain relief/fixing is possible with
cable binders
➀.
- Correct screen connection with screened cables:
- Apply motor cable screen to the screening
plate using clamp and screws M5x12
➁.
- Connect thermal contact screen to the stud PE
next to the motor connection over a large
surface.

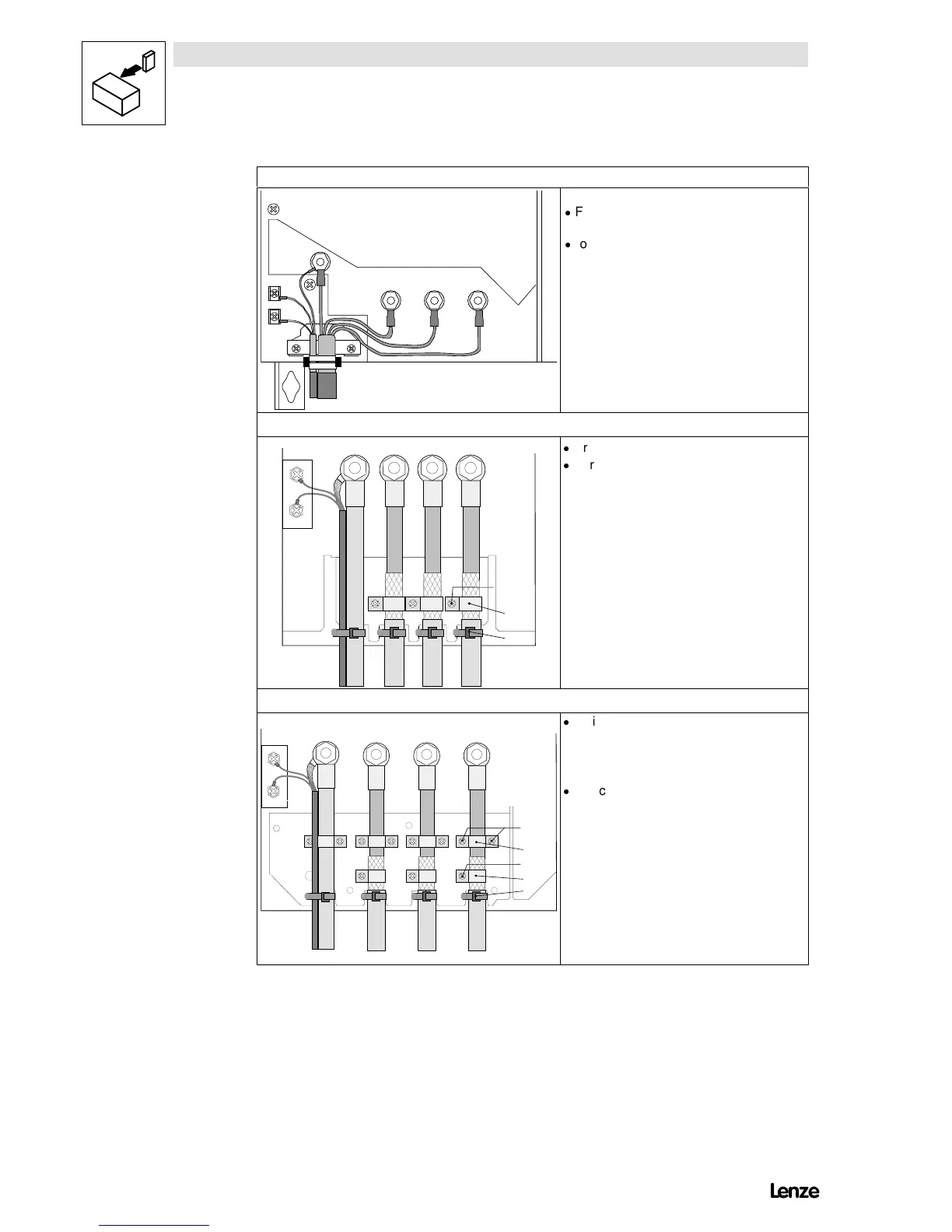

FIG 4-17 Proposal for motor connection with 822X
