9400 regenerative power supply module | Parameter setting
Internal interfaces
LS_AnalogOutput - analog outputs
256 L EDS94ARNExxxx EN 2.3 - 06/2014

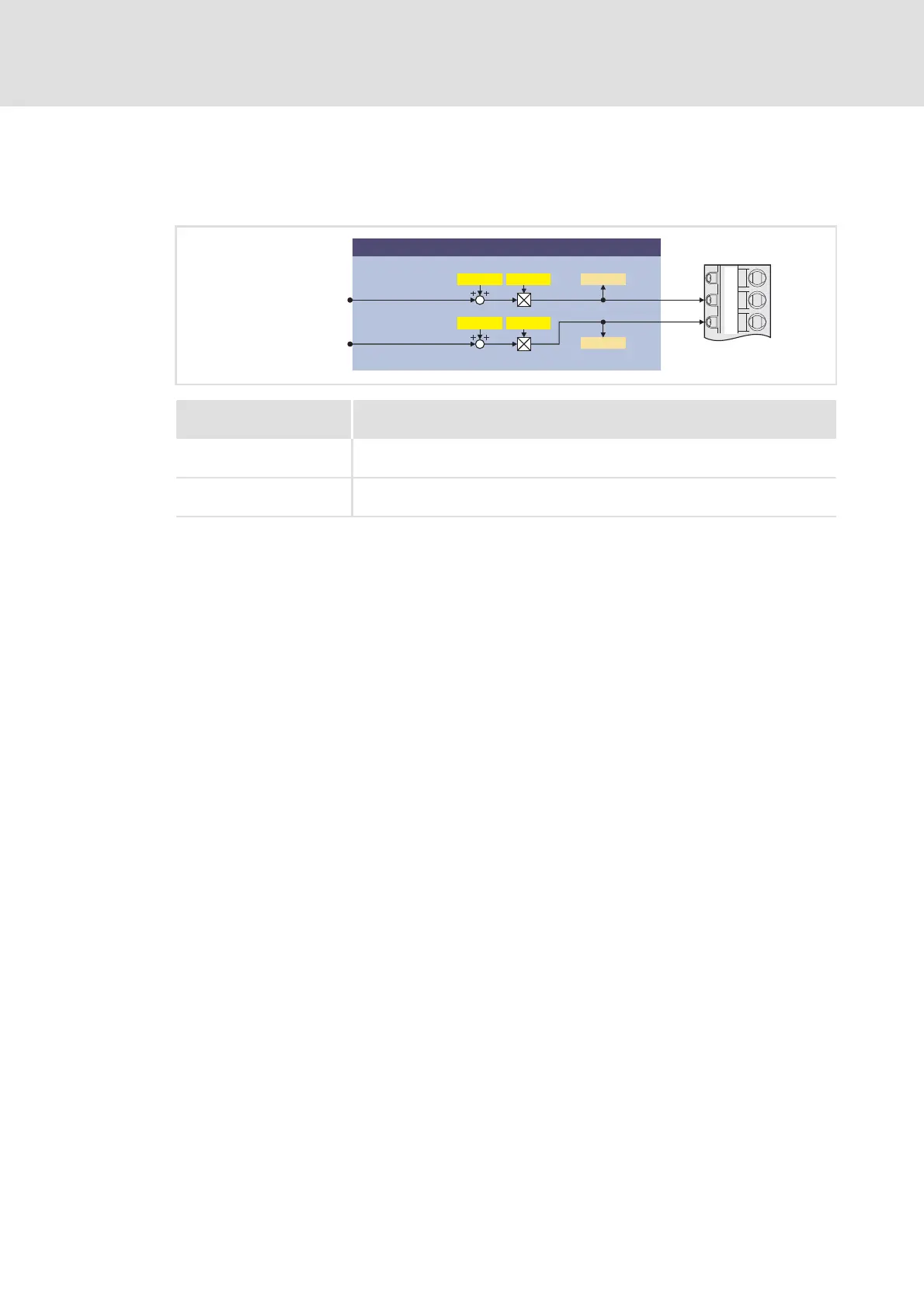

9.2 LS_AnalogOutput - analog outputs
The LS_AnalogOutput system block is the interface to the analog outputs in the function
block editor.
Input
Data type
Information/possible settings
AOUT1_dnOut_n
DINT
Analog output 1
• Scaling: ±2
30
≡ ±10 V
AOUT2_dnOut_n
DINT
Analog output 2
• Scaling: ±2
30
≡ ±10 V
LS_AnalogOutput
AOUT1_dnOut_n
AOUT2_dnOut_n
GA
AO1
AO2
X3
C02801/1
C02801/2
C02734/1 C02733/1
C02734/2 C02733/2
