EDS94ARNExxxx EN 2.3 - 06/2014 L 257
9400 regenerative power supply module | Parameter setting
Internal interfaces
LS_DigitalInput - digital inputs

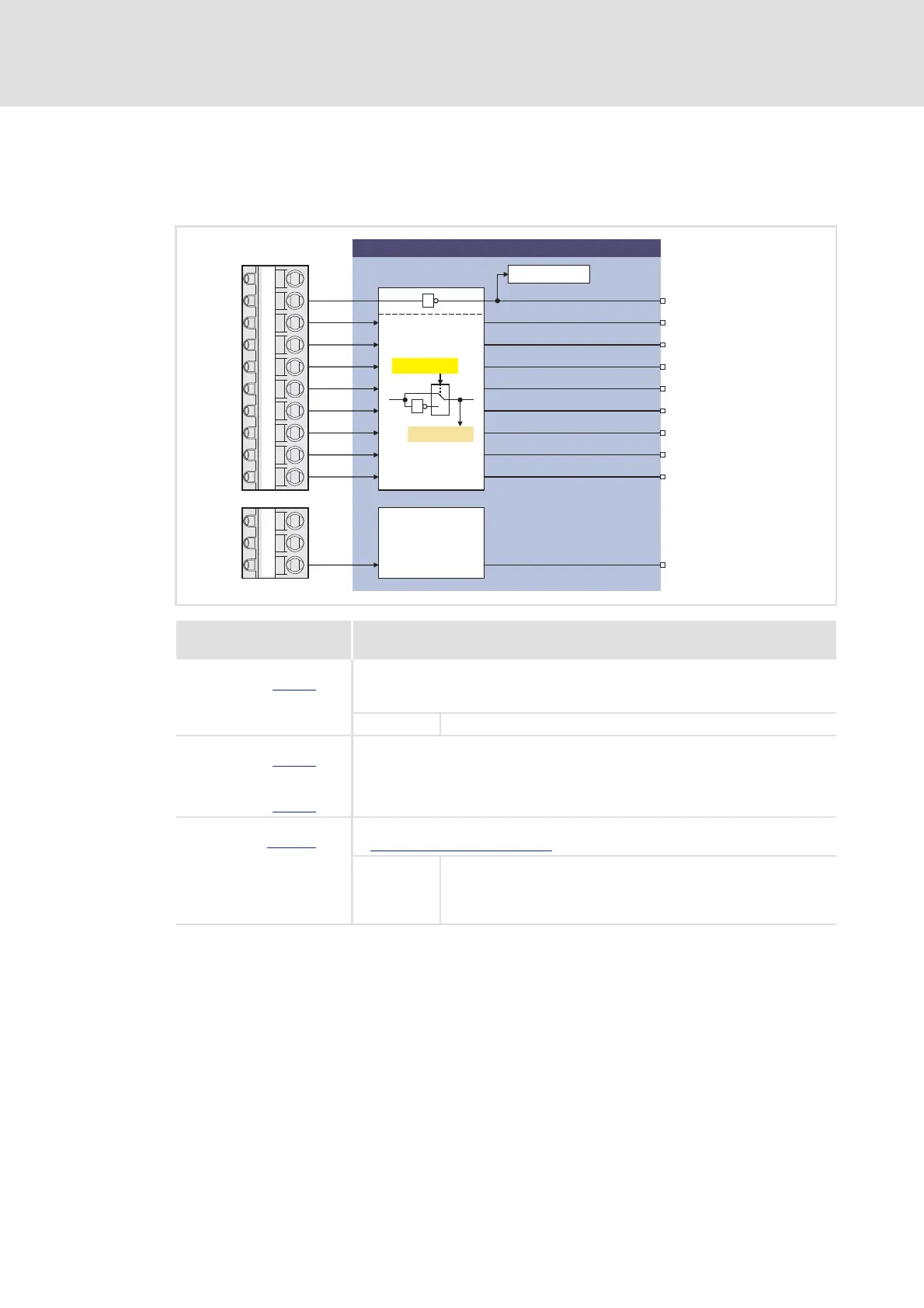

9.3 LS_DigitalInput - digital inputs
The LS_DigitalInput system block represents the digital inputs and the status of the state
bus in the function block editor.
Output
DIS code | data type
Value/meaning
DIGIN_bCInh
C00443/9 | BOOL
Status signal "Controller inhibit"
• The control input RFR (X5/pin 9) for the setting/resetting of controller inhibit is
connected to the device control (DCTRL) via an inverter.
TRUE Controller inhibit is active
DIGIN_bIn1
C00443/1 | BOOL
...
DIGIN_bIn8
C00443/8 | BOOL
Digital input 1 ... 8
DIGIN_bStateBusIn
C00443/12 | BOOL
State bus status
"State bus" monitoring function
( 96)
TRUE A node connected to the state bus has set the state bus to LOW level
and the "Error" state has been set.
• The "Error" state is also set if a node connected to the state bus is
not supplied with voltage.
LS_DigitalInput
DIGIN_bIn1
DIGIN_bIn2
DIGIN_bIn5
DIGIN_bIn4
DIGIN_bIn3
X5
DIGIN_bIn6
DIGIN_bIn7
DIGIN_bIn8
DIGIN_bCInh
DIGIN_bStateBusIn
1
0
1
C00114/1...8
C00443/1...8
CONTROL
GI
RFR
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI8
GE
24E
SB
X2
DriveInterface
1
