4-5. Using the driving support systems
Driving
Current vehicle position

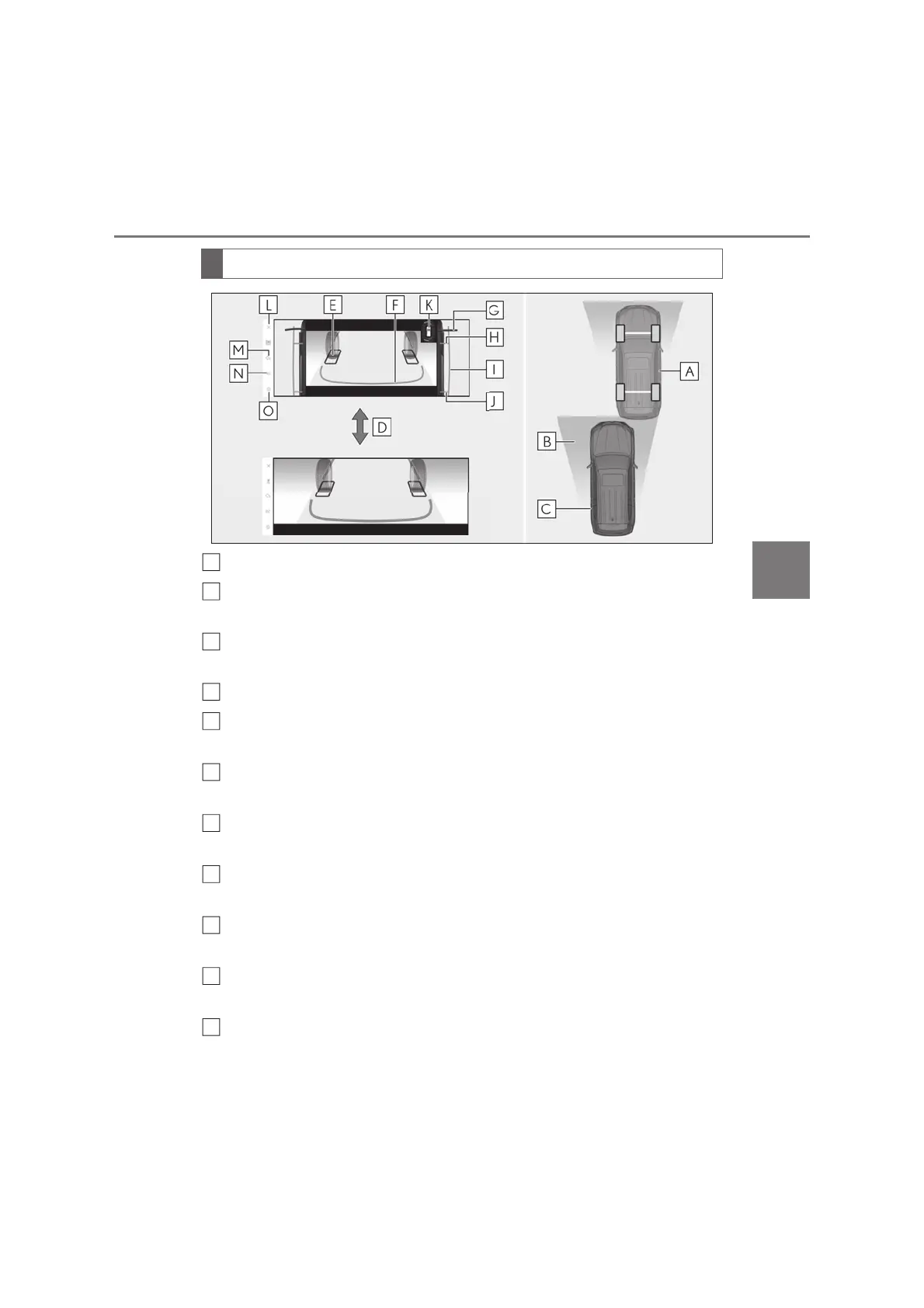

Image displayed in the under vehicle terrain view (rear wheel) (image taken
behind the current vehicle position)
Vehicle position at the time the image was taken (behind the current vehicle
position)
Selecting the display
Tire position indicator lines (black, white)
Indicates the estimated position of the rear tires.
Vehicle position indicator lines (blue)
Indicates the estimated position of the vehicle.
0.5 m (1.5 ft.) distance guide line (red, black)
Indicate the estimated distance from the front end of the vehicle.
Front tire contact line (blue)
Indicate estimated tire positions on the image.
Vehicle width lines (blue)
Indicate the width of the vehicle including the outside rear view mirrors.
Rear tire contact line (blue)
Indicate estimated tire positions on the image.
Lexus parking assist-sensor
Displayed if an obstacle is detected while the Lexus parking assist-sensor is turned on.
