5. Software Control - Lightware Device Controller UMX-TPS-TX100 series – User's Manual 55
Description Function
ID Code number.
Name You can give an unique name for the desired code.
Fingerprint code in pronto hexa format.
Detected Indicator gives feedback about the given IR code is detected currently.
You can set a timeout to avoid the involuntary code recurrence.
Actions
Action buttons for the desired IR code:
Save
Cancel
Learn: learning the detected IR code.
You can check the detected IR codes in this panel. Pushing Clear button
scrolling with the Autoscroll pipe.
Event Manager.
Learning IR Codes
Step 1. Connect the IR detector unit to the IR IN port of the transmitter.
Step 2. Click on the Learn button.
Step 3. Turn the remote controller to the IR detector. A pop-up window appears in LDC - press your remote
button to learn.
Step 4. Once the code is received, a new window pops up in LDC - learning completed. Click OK to continue.
Step 5. Optionally type a unique name for the code in the Name text box. The default name is code#, e.g.
code0.
Ports Section for the UMX-TPS-TX100 Series Devices
User can set the name and command injection port to each sources and destinations. For more details
about IR interface see the IR Interface section.

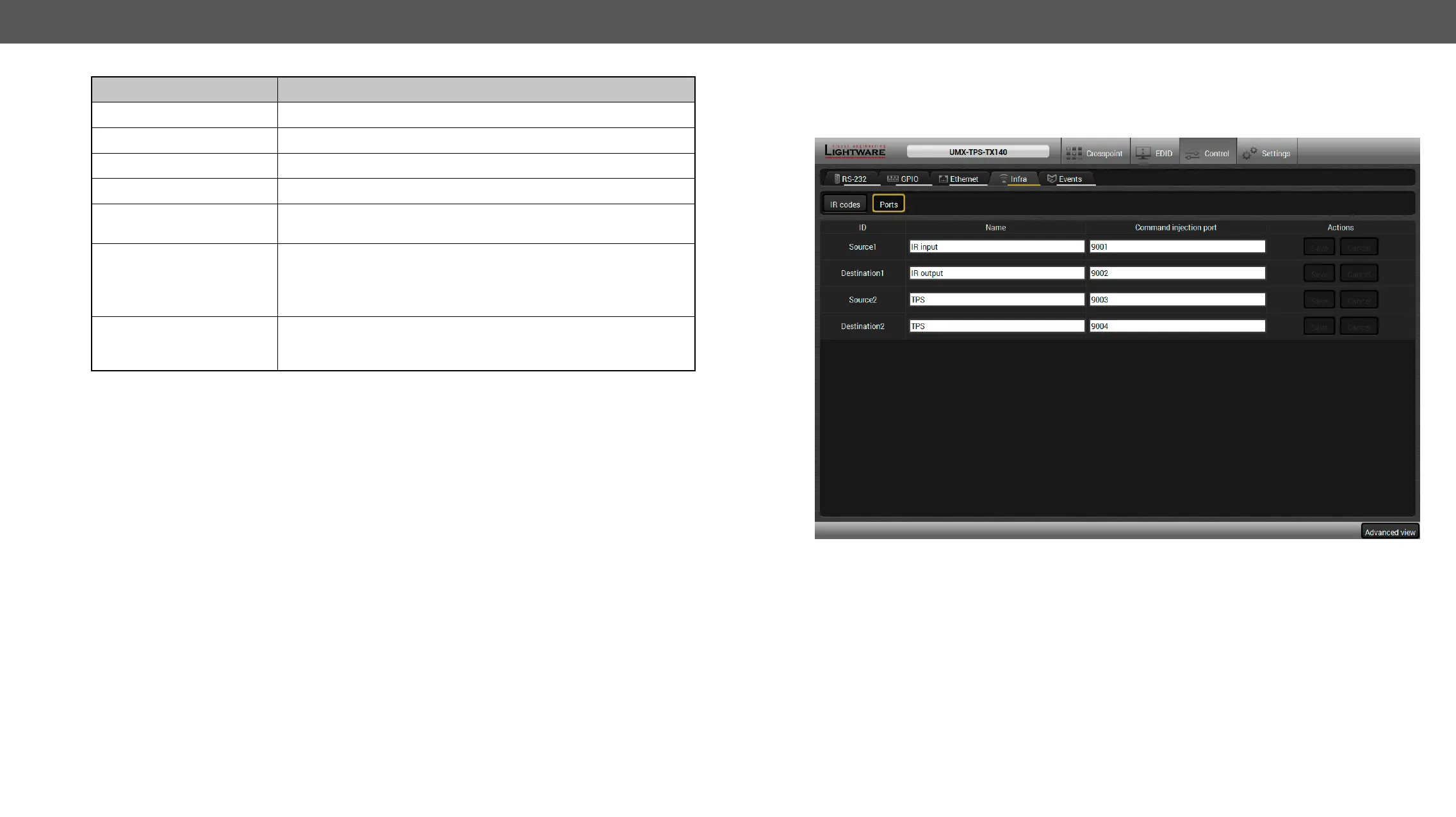

Infra tab - Ports window for the UMX-TPS-TX100 series devices
