13.10 Bed Extension Adjustment

Simple Bed Extension

To extend the bed:

► Pull out the Safety Catches at Foot End on the

both sides of the frame.

► Turn the Safety Catches by 90°.

The Safety Catches are released.

► Pull the Foot Board to the selected position.

► Turn the Safety Catches by 90° and push them

in to fix the extension position.

To shorten the bed:

► Pull out the Safety Catches at Foot End on both

sides of the frame.

► Turn the Safety Catches by 90°.

The Safety Catches are released.

► Push the Foot Board to the selected position.

► Turn the Safety Catches by 90° and push them

in to fix the extension position.

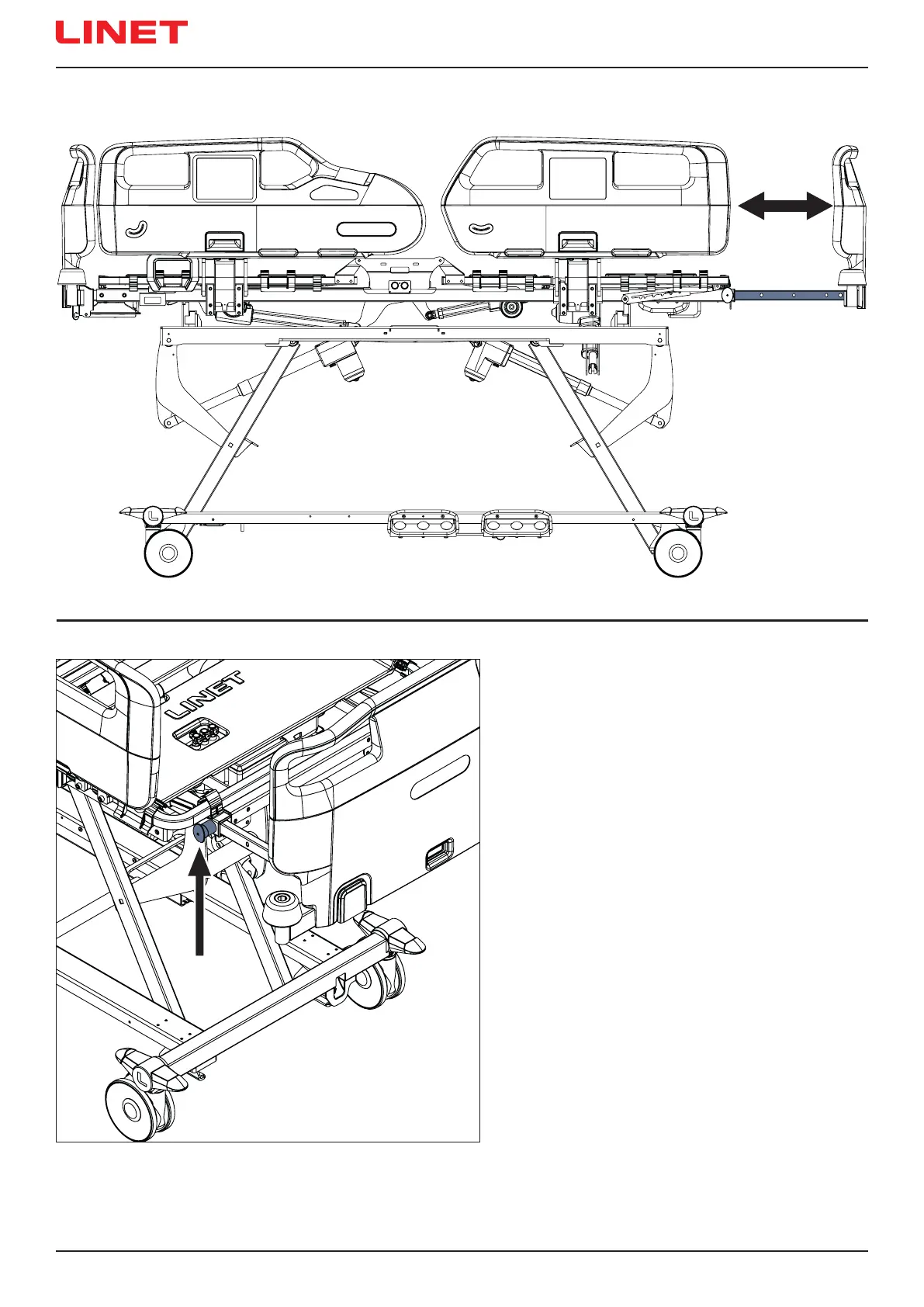

Fig. Position of Bed Extension Safety Catch
