D9U001EZ3-0101_0062

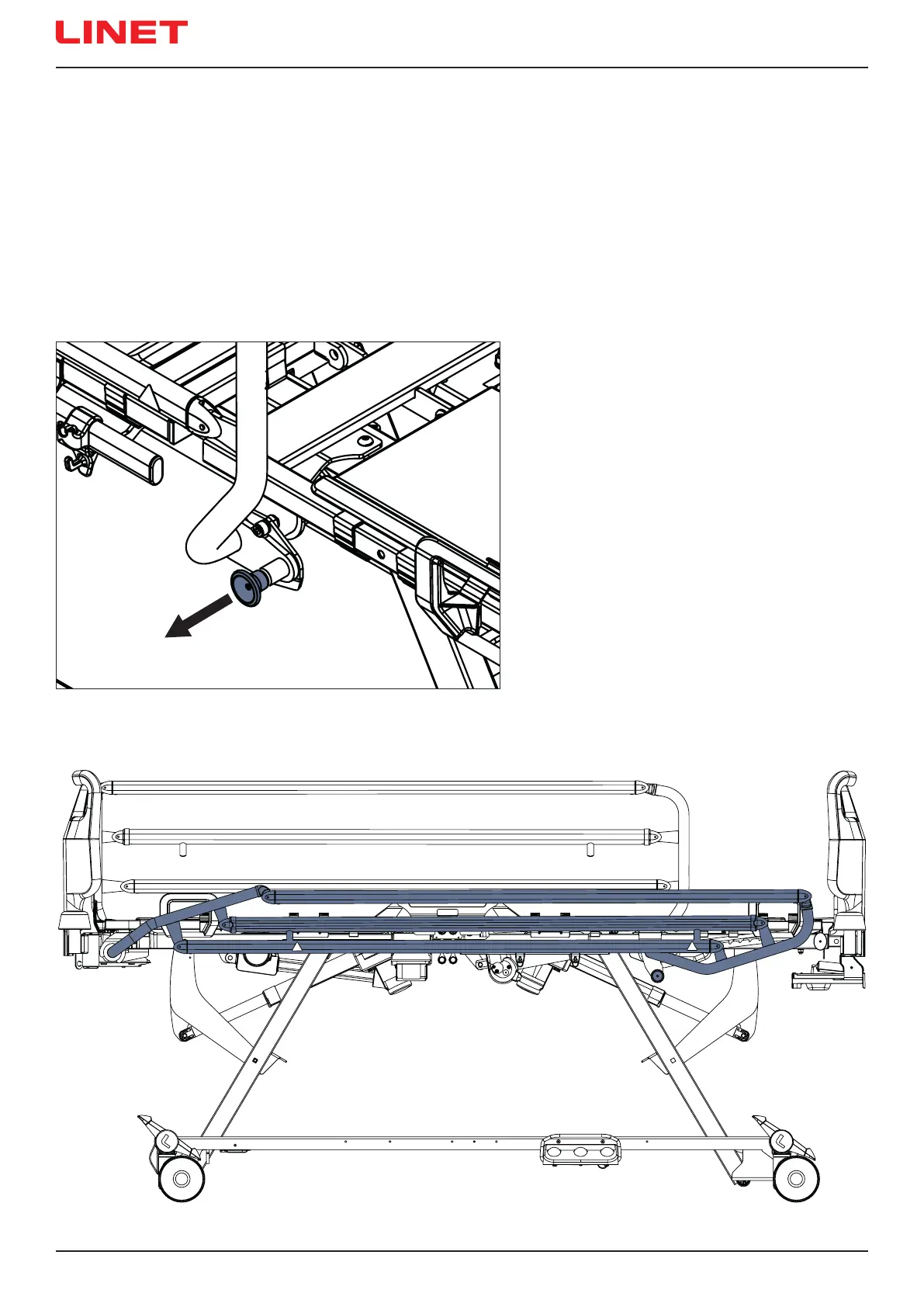

Fig. Manipulation with Siderail Release Mechanism in version with collapsible siderails

Fig. Right Collapsible Siderail in lower position

MANIPULATION

To raise siderail up:

► Grab an upper Siderail Bar (1) and push the siderail up.

Siderail will click into place and lock automatically. You will hear audible „click“.

► Push the siderail towards head end and towards foot end to ensure the siderail is xed in place.

To fold siderail down:

► Unlock siderail by pulling out the lever of Siderail Release Mechanism (3).

► Fold down siderail slowly.

Do not let the siderail fall down when it is unblocked!
