12.3 Siderail Control Panel for Essenza 300 with Lateral Tilt

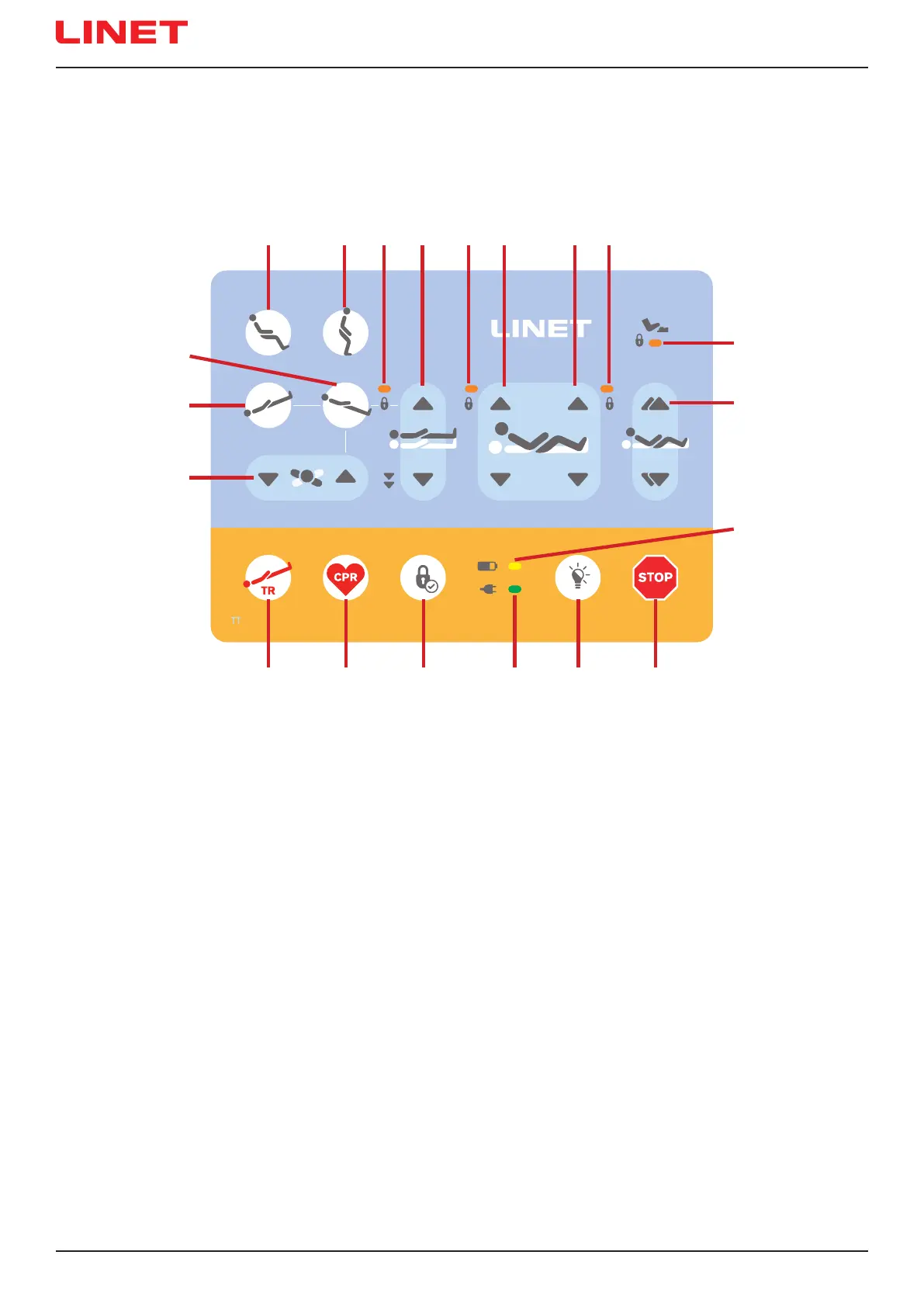

Fig. Siderail Control Panel for Essenza 300 with Lateral Tilt
1 432 65 7 8
15 14 13 1216
17
19
20
18
10
11
9
1. Cardiac Chair Position Button
2. Mobilization Position Button
3. Bed Height Adjustment Lock LED Indicator / Lateral Tilt Lock LED Indicator / Trendelenburg Tilt Lock LED Indica-
tor / Reverse-Trendelenburg Tilt Lock LED Indicator (ON - locked)
4. Bed Height Adjustment Buttons (up/down + Extra Low Position)
5. Backrest Adjustment Lock LED Indicator (ON - locked)
6. Backrest Adjustment Buttons (up/down)
7. Thighrest Adjustment Buttons (up/down)
8. Thighrest Adjustment Lock LED Indicator (ON - locked)
9. Foot Control Lock LED Indicator (ON - locked)
10. Autocontour Adjustment Buttons (up/down)
11. Accumulator Charge Status LED Indicator
12. Central STOP Button
13. Bed Illumination Control Button
14. Mains Power LED Indicator
15. Lock Button
16. Emergency CPR Position Button
17. Emergency Trendelenburg Position Button
18. Lateral Tilt Buttons (right/left)
19. Trendelenburg Tilt Button
20. Reverse-Trendelenburg Tilt Button
Ensure that exclusively trained nursing sta󰀨 operates the Siderail Control Panel for Essenza 300 with Lateral Tilt.
The use of the Siderail Control Panel for Essenza 300 with Lateral Tilt is described in the chapter Bed Positioning (see „13 Bed
Positioning“ on the page 79).
