To lift Calfrest:

► Grab the bottom part of the Calfrest Handle with one hand

and the Siderail Release Handle with the other hand.

► Lift Calfrest with one hand to intended position and fold the

foot siderail down with the other hand.

► Lower the Calfrest so that catch fits in the ratchet-bar.

To lower Calfrest:

► Lift Calfrest slightly by the Calfrest Handle.

► Lower Calfrest to intended position.

► Ensure the catch fits in the ratchet-bar during slight lifting

of the Calfrest.

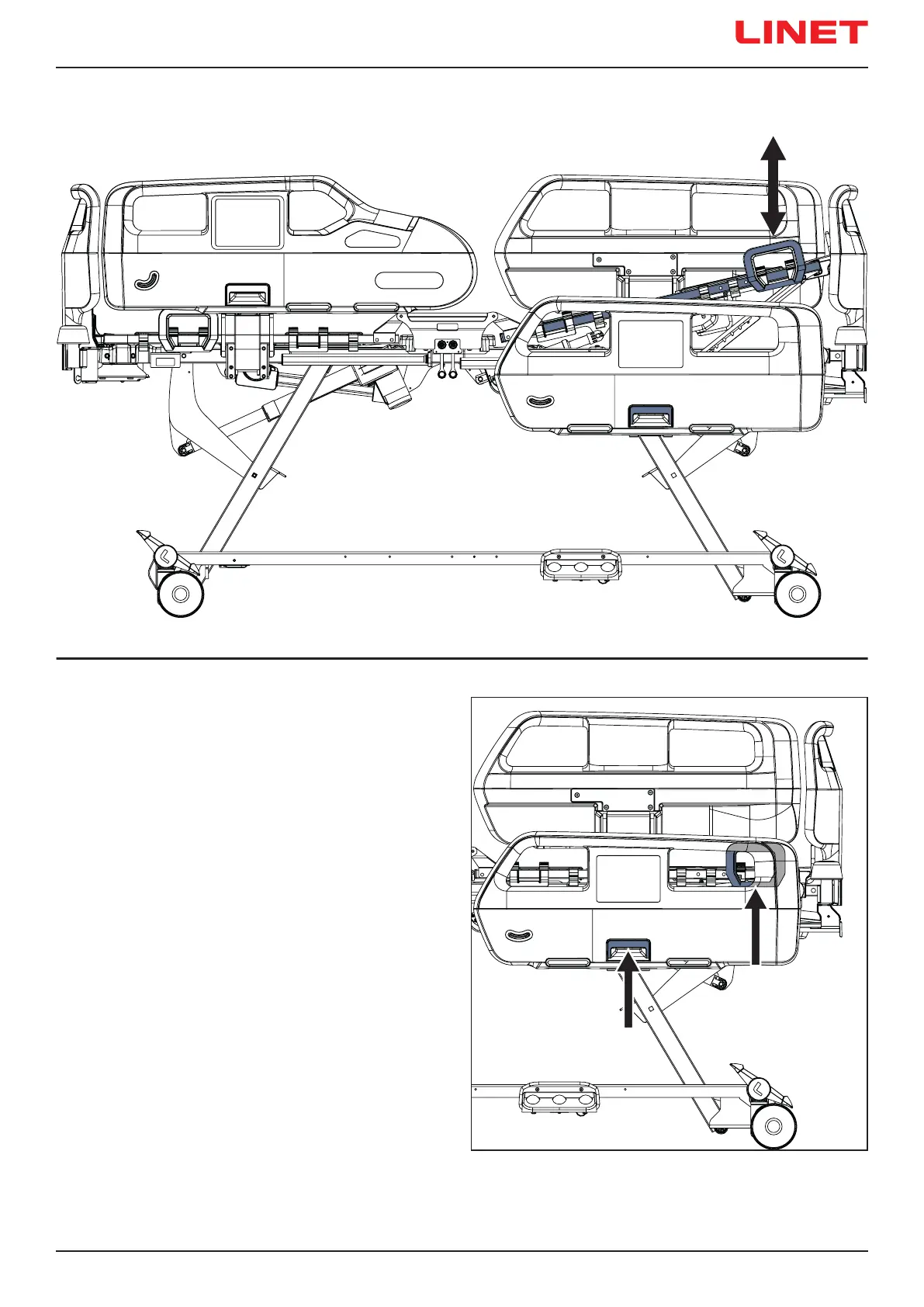

13.3 Calfrest Adjustment

Fig. Calfrest Adjustment
