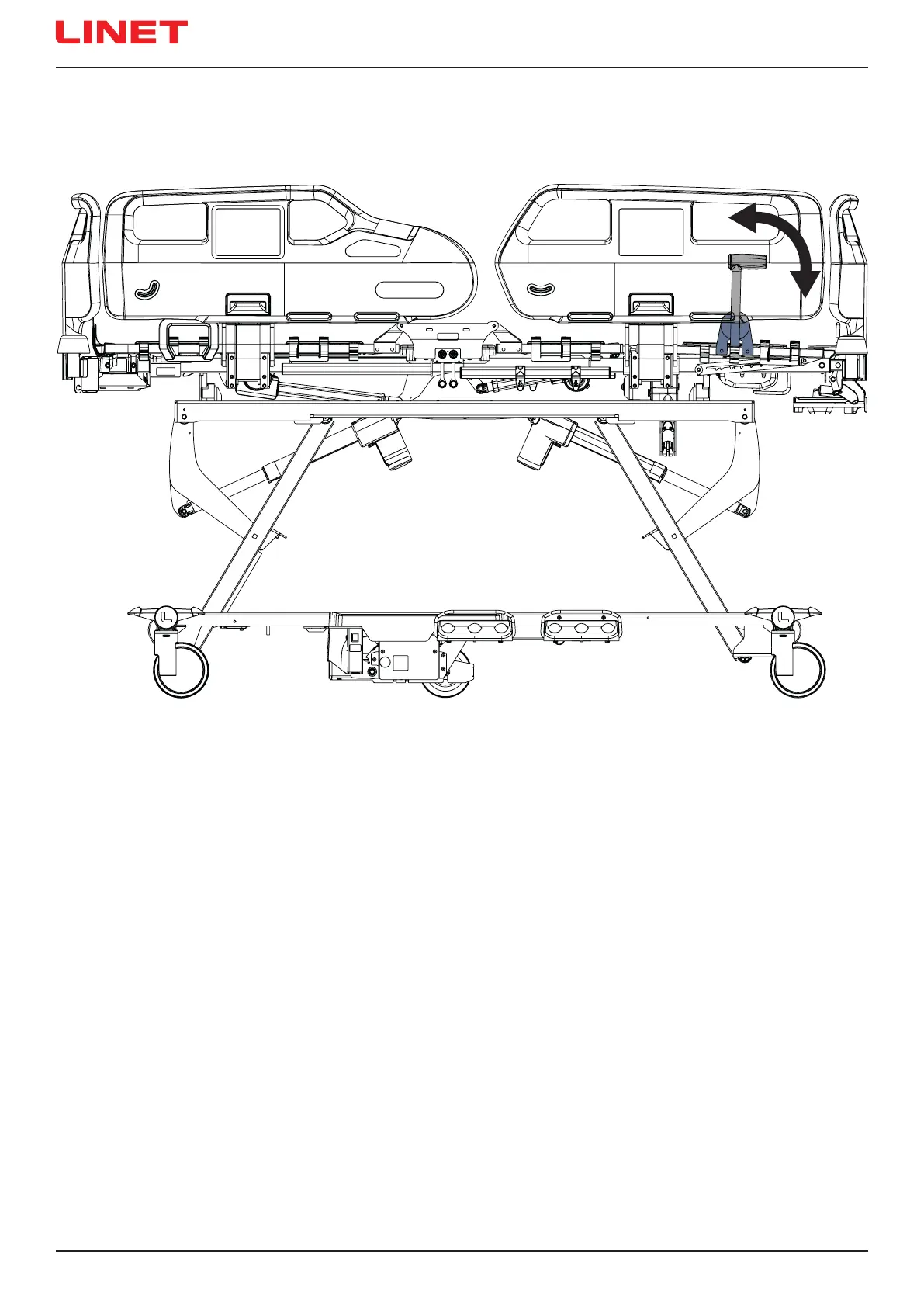

Fig. Mobi-Lift Handle on the bed with Plastic Siderails

15.8 Mobi-Lift Handles

Mobi-Lift® is intended as support handle when patient gets up.

To fold Mobi-Lift Handle down:

► Lift the Mobi-Lift Handle up to unlock it.

► Fold the Mobi-Lift Handle down.

To lift Mobi-Lift Handle up:

► Lift the Mobi-Lift Handle up.

► Check if the Mobi-Lift Handle is locked in place.
