17.13 Urinary Bottle Holder

Urinary Bottle Holder is intended for holding the compatible urinary bottles.

17.13.1 Urinary Bottle Holder for Plastic Siderails

17.13.2 Urinary Bottle Holder for Telescopic Siderails

Urinary Bottle Holder for Plastic Siderails is intended to be placed on the Accessory Rail or on the plastic Foot Siderail.

Urinary Bottle Holder for Telescopic Siderails is intended to be placed on the Accessory Rail.

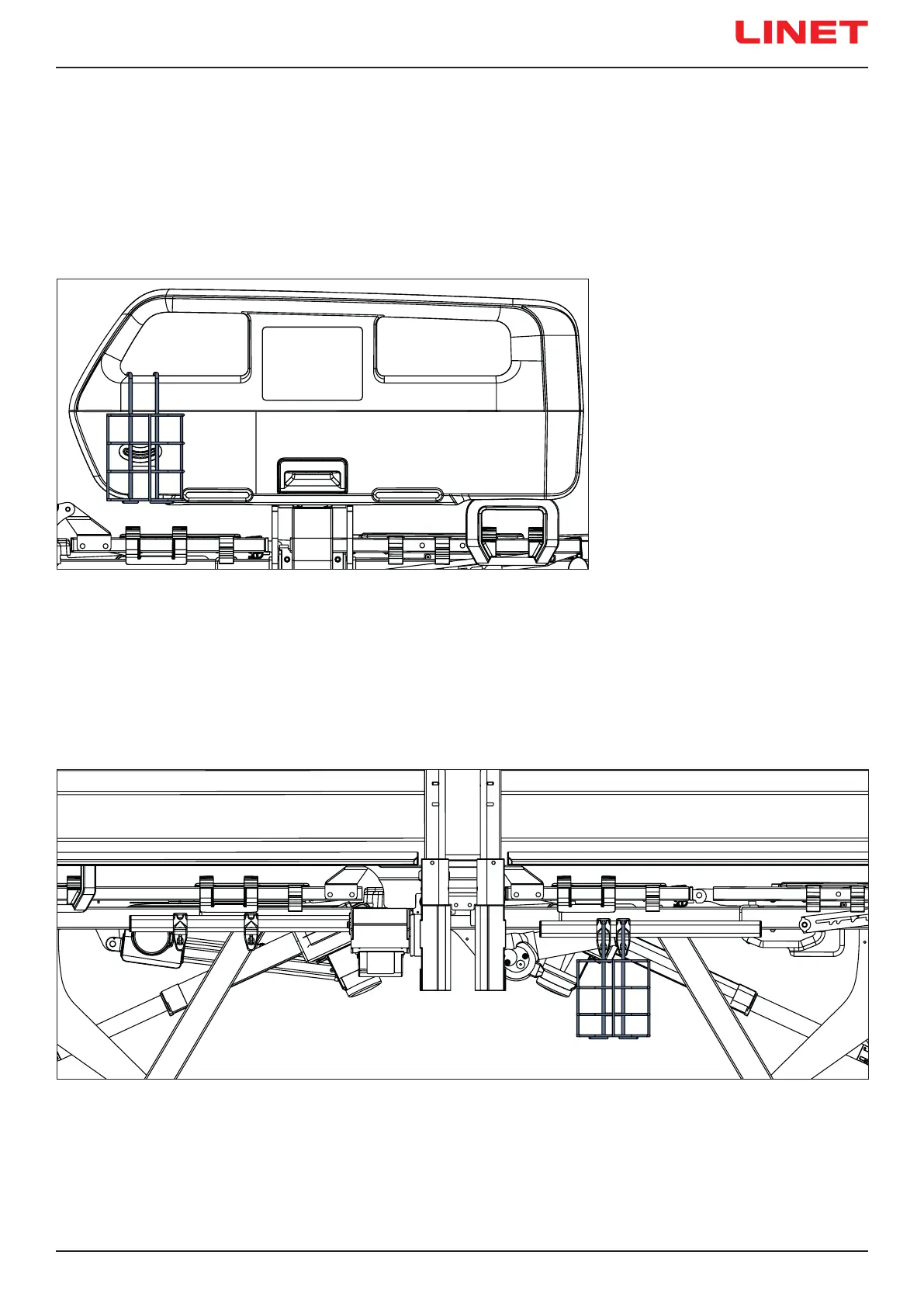

Fig. Urinary Bottle Holder hanging from the right window in the Plastic Foot Siderail

Fig. Urinary Bottle Holder in two hooks on the Accessory Rail
