17.24 Transparent Accessory Box

WARNING!

Risk of injury due to incorrect placement!

► Ensure any button of the control elements is not pressed by Transparent Accessory Box!

► Only place the Transparent Accessory Box on the Plastic Head Board or Plastic Foot Board or on the

Telescopic Siderails!

17.25 Positioning Cushion

Fig. Positioning Cushion

Positioning Cushion is intended to provide additional support for a patient during lateral tilting of the Essenza 300 bed with Lateral

Tilt. Positioning Cushion is intended to be placed on the mattress.

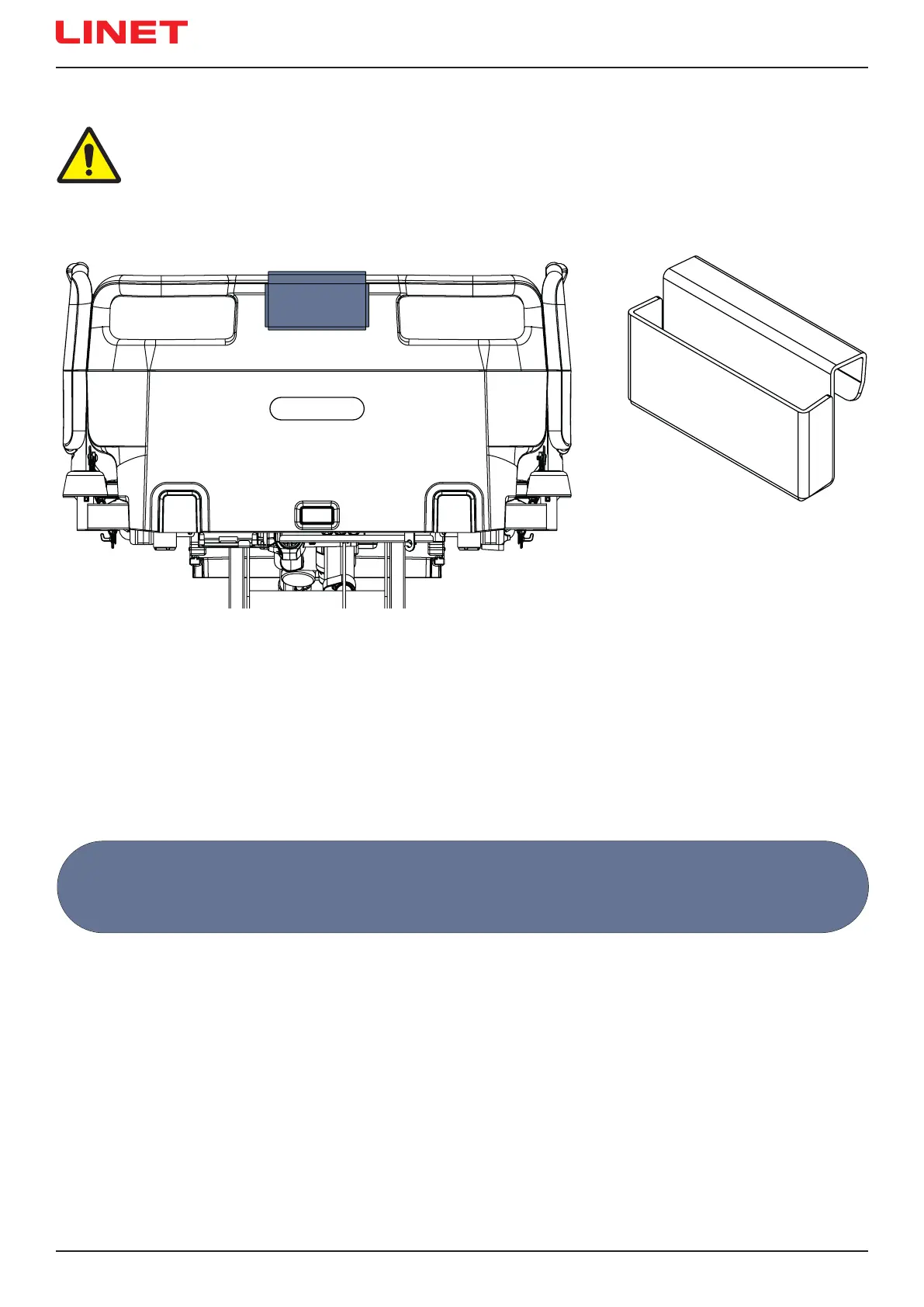

Fig. Transparent Accessory Box on the Plastic Head Board

Fig. Transparent Accessory Box
