17.12 Urinary Bag Holder

Urinary Bag Holder is intended for holding the urinary bags.

Urinary Bag Holder is intended to be placed on the Accessory Rail towards the centre of the bed.

Maximum Load of the Urinary Bag Holder is 5 kg.

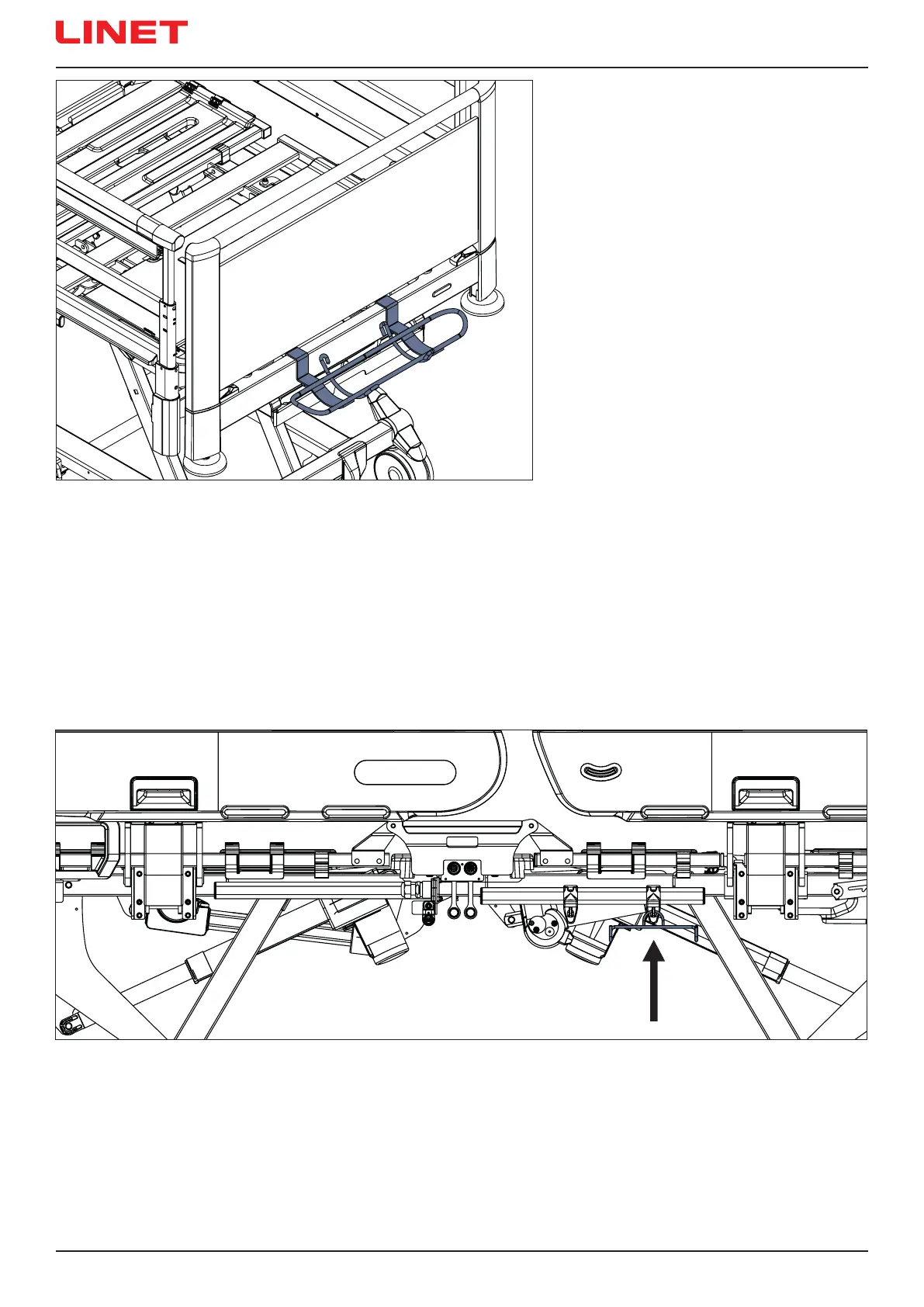

Fig. Urinary Bag Holder hanging from the hook on the Accessory Rail

Fig. Horizontal Oxygen Bottle Holder under the HPL Foot Board
