D9U001EZ3-0101_00

115

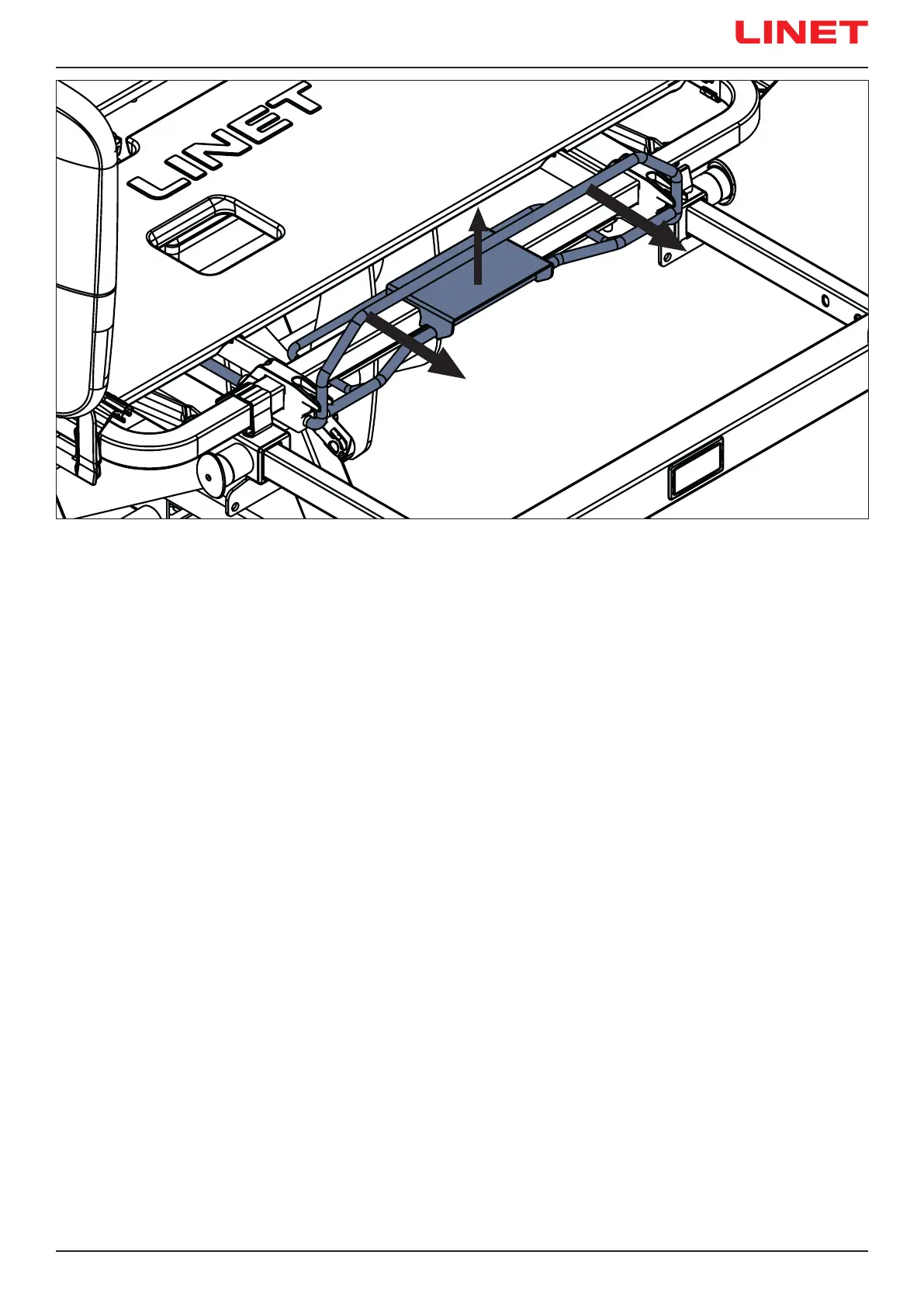

Fig. Two steps of the Calfrest Extension Adjustment

13.11.1 Calfrest Extension Adjustment

To adjust Calfrest Extension:

► Adjust Bed Extension to the second position.

► Unlock the Calfrest Extension Holder by lifting the securing element. (1)

► Pull Calfrest Extension Holder to a required position. (2)

Mattress support platform is prepared to be used with 220 cm long mattress or with 200 cm long mattress in combination with 20

cm long mattress extension.

To prepare Essenza 300 bed for use with 200 cm long mattress again:

► Push Calfrest Extension Holder back to its original position.

► Adjust Bed Extension as required.
