D9U001EZ3-0101_0058

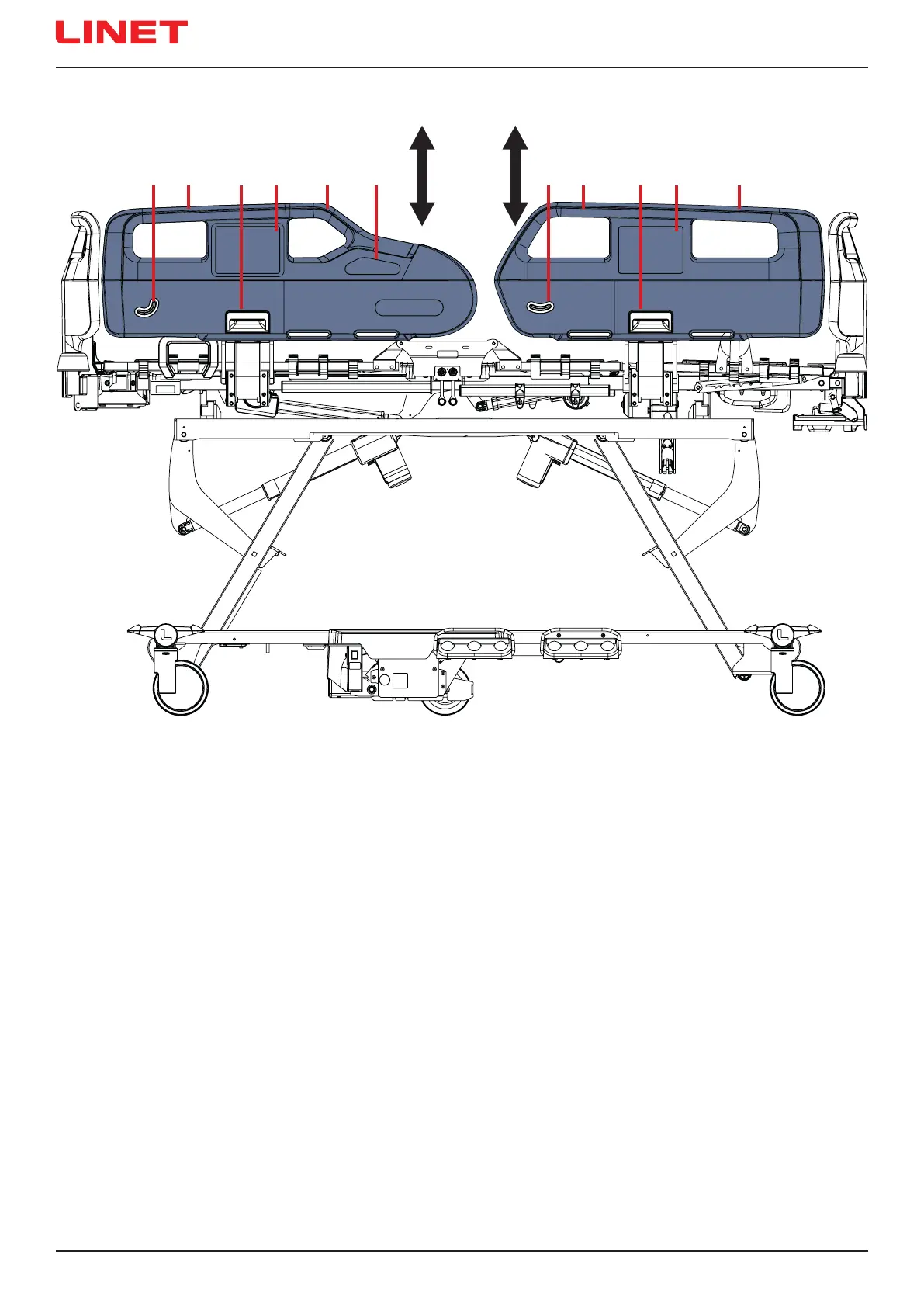

Fig. Manipulation with Plastic Siderails

1. Angle Indicator

2. Siderail Handle

3. Siderail Release Mechanism with Siderail Release Handle

4. Siderail Control Panel

5. Mobi Pad

6. Control Panel of the Integrated Mattress (Air2Care IN)

11.1.1 Description of the Plastic Siderails

1 1 33 4 622 2 25

MANIPULATION

To raise siderail up:

► Grab siderail by Siderail Handle (2).

► Pull siderail up until it latches. You will hear audible „click“.

► Push the siderail forward and backward to ensure the siderail is xed in the upper position!

To release siderail down:

► Grab siderail by Siderail Handle (2).

► Unlock siderail by pulling Siderail Release Handle (3) to yourself.

► Fold down siderail slowly.
