D9U001EZ3-0101_00

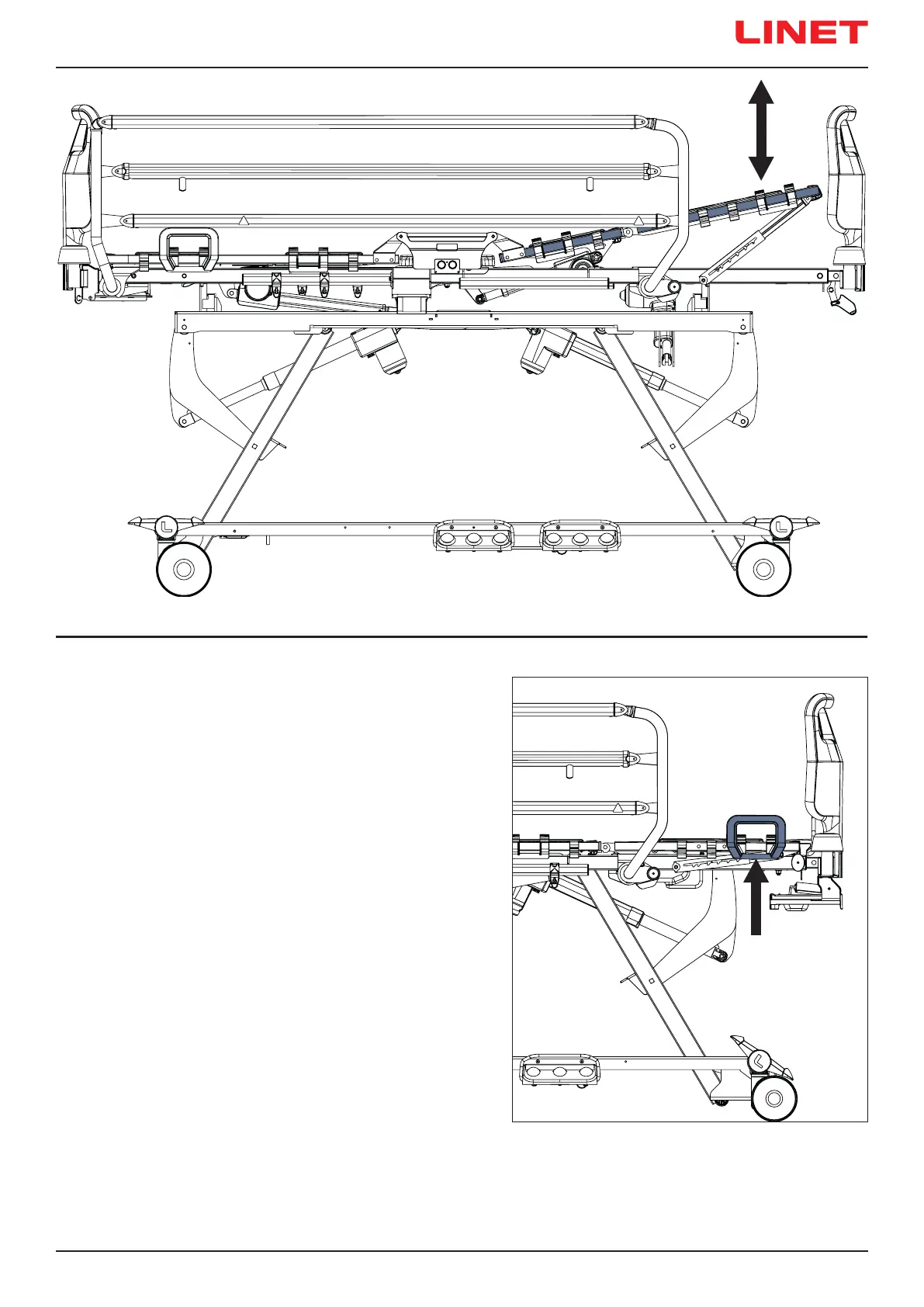

To lift Calfrest:

► Lift Calfrest by the Calfrest Handle to intended position.

► Lower the Calfrest so that catch fits in the ratchet-bar.

To lower Calfrest:

► Lift Calfrest slightly by the Calfrest Handle.

► Lower Calfrest to intended position.

► Ensure the catch fits in the ratchet-bar during slight lifting of

the Calfrest.

Fig. Bottom part of the Calfrest Handle
