17.2 Extended Lifting Pole
Extended Lifting Pole is intended for supporting a patient who uses it to sit or lift by himself / herself or with the help of a caregiver.
Extended Lifting Pole is compatible with the Essenza 300 with Lateral Tilt or with Accessory Adaptor.
Extended Lifting Pole must be placed into a bushing at head end of the mattress support platform or into a bushing on the Accesso-
ry Adaptor at bed head end.
Maximum Load of the Extended Lifting Pole is 75 kg.
To ensure safe use of the Extended Lifting Pole:
► Never exceed the maximum load of 75 kg.
► Avoid collision between Extended Lifting Pole and the Head Board during Backrest adjustment or tilting to the Trendelen-
burg Position.
► Never use the Extended Lifting Pole for demanding rehabilitation exercises.
► To prevent the bed from tipping over, ensure that the Extended Lifting Pole does not project out from the bed.
To install the Extended Lifting Pole:
► Insert Extended Lifting Pole into a bushing at head end of the mattress support platform.
► Ensure the Extended Lifting Pole is safely installed above the mattress support platform.
► Ensure the safety pin of the Extended Lifting Pole is locked in a compatible bushing.
► Attach a Triangular Holder with an adjustable strap to the Extended Lifting Pole.
WARNING!
Risk of injury due to incorrect use!
► Ensure the Extended Lifting Pole is correctly inserted to a bushing for Extended Lifting Pole in inner corners
of the mattress support platform at bed head end or to a bushing in the Accessory Adaptor at bed head end!
► Ensure the Extended Lifting Pole is xed above the mattress support platform to avoid any risk of the bed
tipping over!

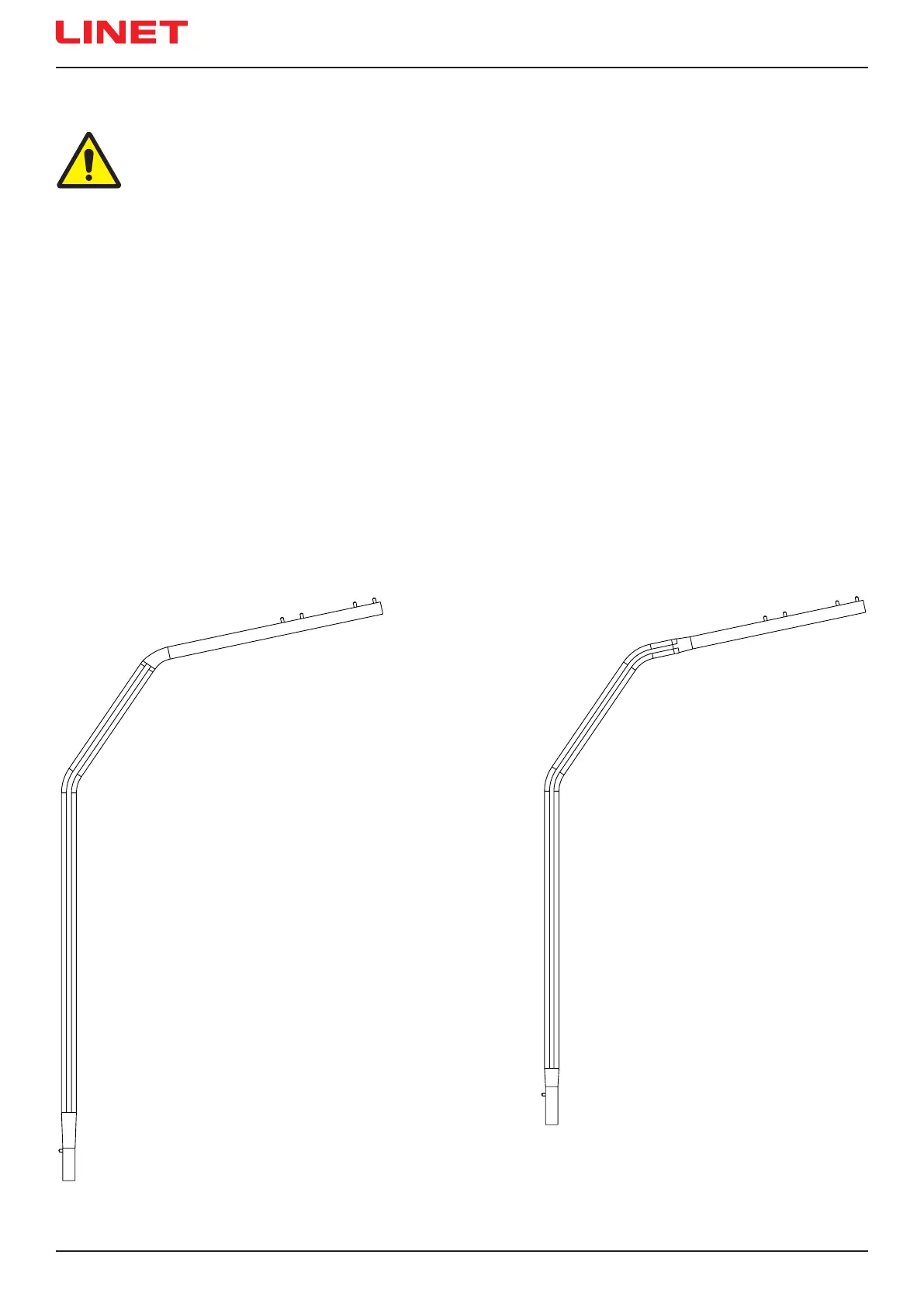

Fig. Standard Lifting Pole
Fig. Extended Lifting Pole
