11.3.2 Description of the Telescopic Siderails with DIN Rails
1 3 4
5
5
1 1 22 22 1

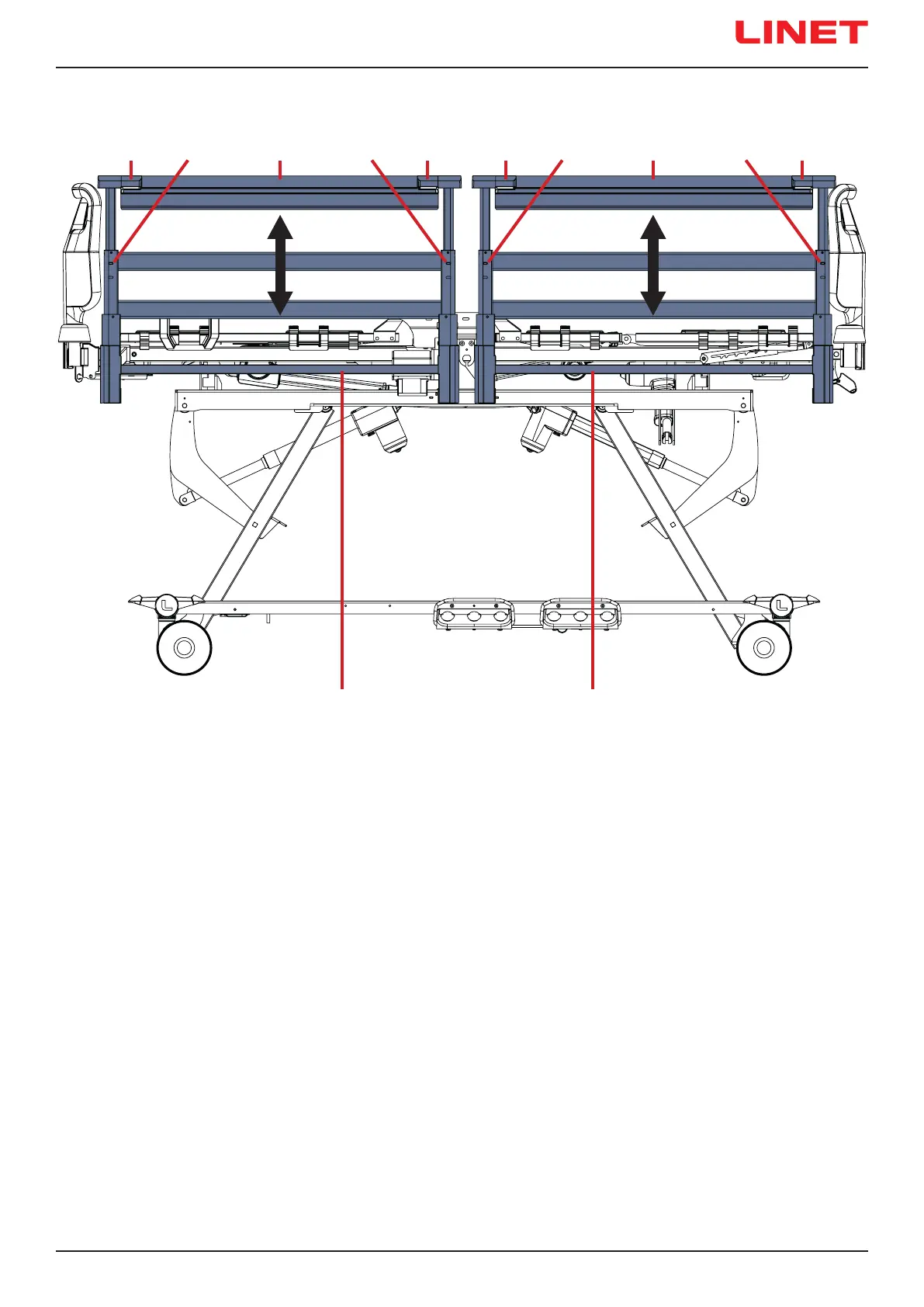

Fig. Manipulation with Telescopic Siderails with DIN Rails
1. Siderail Release Mechanism (with red button)
2. Check Latch (with yellow catch)
3. Head Telescopic Siderail
4. Foot Telescopic Siderail
5. DIN Rail (for accessories)
MANIPULATION
To raise siderail up:
► Hold both Siderail Release Mechanisms and push red buttons at both upper ends of selected telescopic siderail.
► Fold telescopic siderail up to the required position.
The siderail will click into place and lock automatically.
To release siderail down:
► Hold both Siderail Release Mechanisms and push red buttons at both upper ends of selected telescopic siderail.
► Fold telescopic siderail down to the required position.
The siderail will click into place and lock automatically.
