LINET Essenza 300

D9U001EZ3-0101_00 17
BACKREST ADJUSTMENT LOCK LED INDICATOR (4) MEANING
lit (ON) locked function
not lit (OFF) unlocked function
ashing once per second unlocked function but in the mode of lock selection
ashing 4 times per second locked function but in the mode of lock selection
THIGHREST ADJUSTMENT LOCK LED INDICATOR (5) MEANING
lit (ON) locked function
not lit (OFF) unlocked function
ashing once per second unlocked function but in the mode of lock selection
ashing 4 times per second locked function but in the mode of lock selection
BED HEIGHT ADJUSTMENT LOCK LED INDICATOR / LATE-
RAL TILT LOCK LED INDICATOR / TRENDELENBURG TILT
LOCK LED INDICATOR / REVERSE-TRENDELENBURG TILT
LOCK LED INDICATOR (6)
MEANING
lit (ON) locked function
not lit (OFF) unlocked function
ashing once per second unlocked function but in the mode of lock selection
ashing 4 times per second locked function but in the mode of lock selection

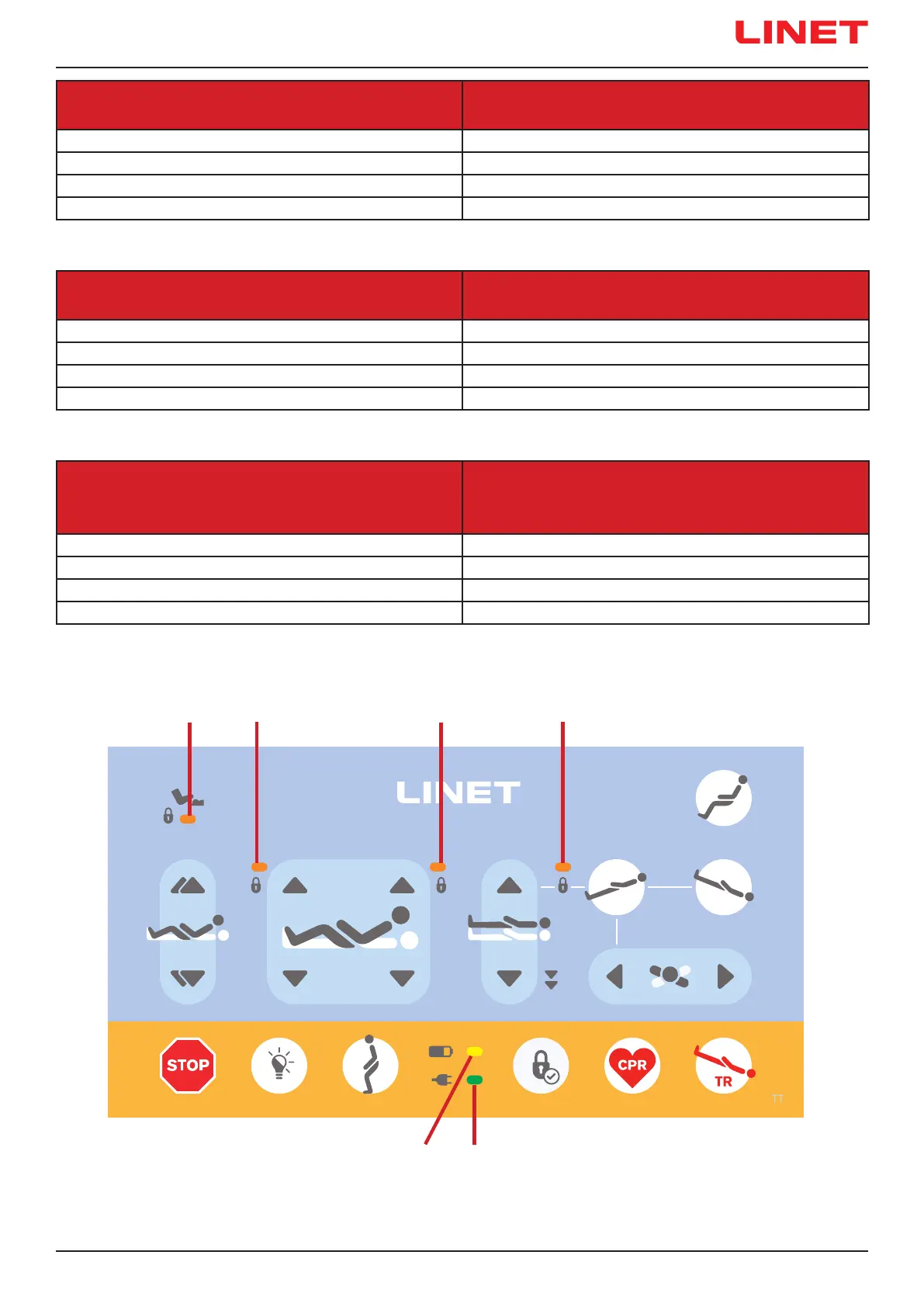

Fig. Visual Signalling of Attendant Control Panel for Essenza 300 with Lateral Tilt
3 5 4
6
12
