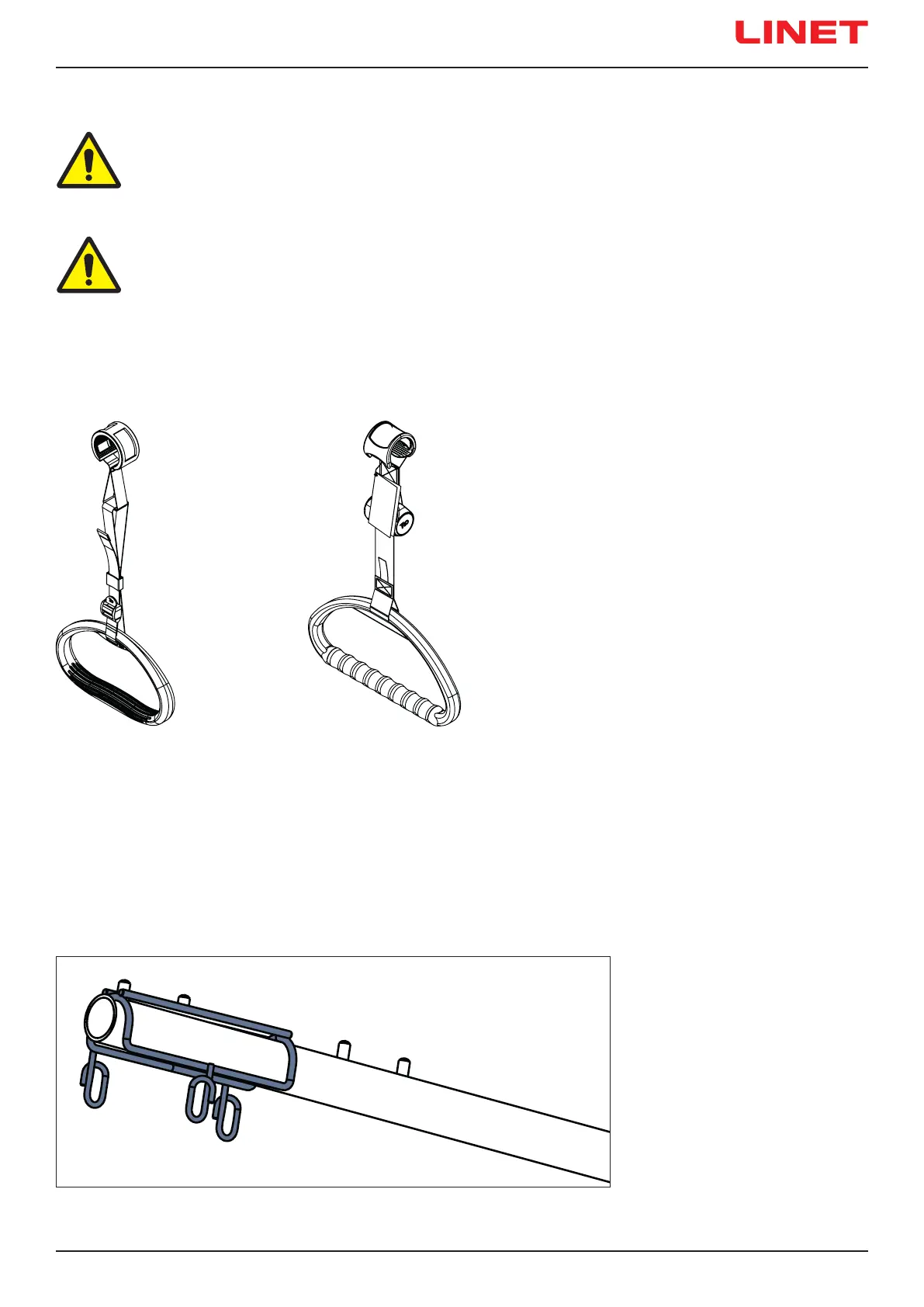

17.3 Triangular Holder for Lifting Pole

Triangular Holder is intended for supporting a patient who uses it to sit or lift by himself / herself or with the help of a caregiver.

Triangular Holder is intended to be placed on the Lifting Pole.

Maximum Load of the Triangular Holder is 75 kg.

WARNING!

Read Instructions for use of the Triangular Holder before use of this product!

WARNING!

Replace Triangular Holder when this replacement is recommended by its manufacturer! Read Instructions for

use of the Triangular Holder before use of this product!

17.4 Infusion Holder for Lifting Pole

Infusion Holder is intended for holding IV bags with intravenous solutions.

Infusion Holder is intended to be placed on the Lifting Pole.

Maximum Load of the Infusion Holders is 10 kg.

Fig. Triangular Holder

4ROTGERSG700-2

Fig. Infusion Holder 4MAPL00N1001

Fig. Extendable Triangular

Holder 4ROTGNR100GR-2
