8.3 Plastic Head Board
CAUTION!
Risk of collision due to a Standard Head Board incompatible with the additional 2 Bushings for Lifting Pole in
the undercarriage at bed head end!
► Ensure the Head Board you want to x at bed head end is compatible with your bed conguration if Standard
Head Board and Narrow Head Board are available in your ward!
There are 2 types of the Plastic Head Board and Foot Board depending on the compatibility of Head Board with additional 2 Bu-
shings for Lifting Pole in the undercarriage at bed head end. Only the Narrow Head Board without side corner bumpers is compa-
tible with the additional 2 Bushings for Lifting Pole. Standard Head Board and Foot Board are interchangeable in the case of the
compatible conguration without the additional 2 Bushings for Lifting Pole. Narrow Head Board and Foot Board are interchangeable
in the case of the compatible conguration with the additional 2 Bushings for Lifting Pole. Bed Head Board and Bed Foot Board
must always be of the same type.
Fig. Standard Plastic Head Board
Dismount the Head Board as follows:
► Unlock Head Board Safety Lock.
► Pull Head Board from sleeve ttings.
Install the Head Board as follows:
► Unlock Head Board Safety Lock.
► Slide Head Board into sleeve ttings.
► Lock Head Board Safety Lock.
1 2
3

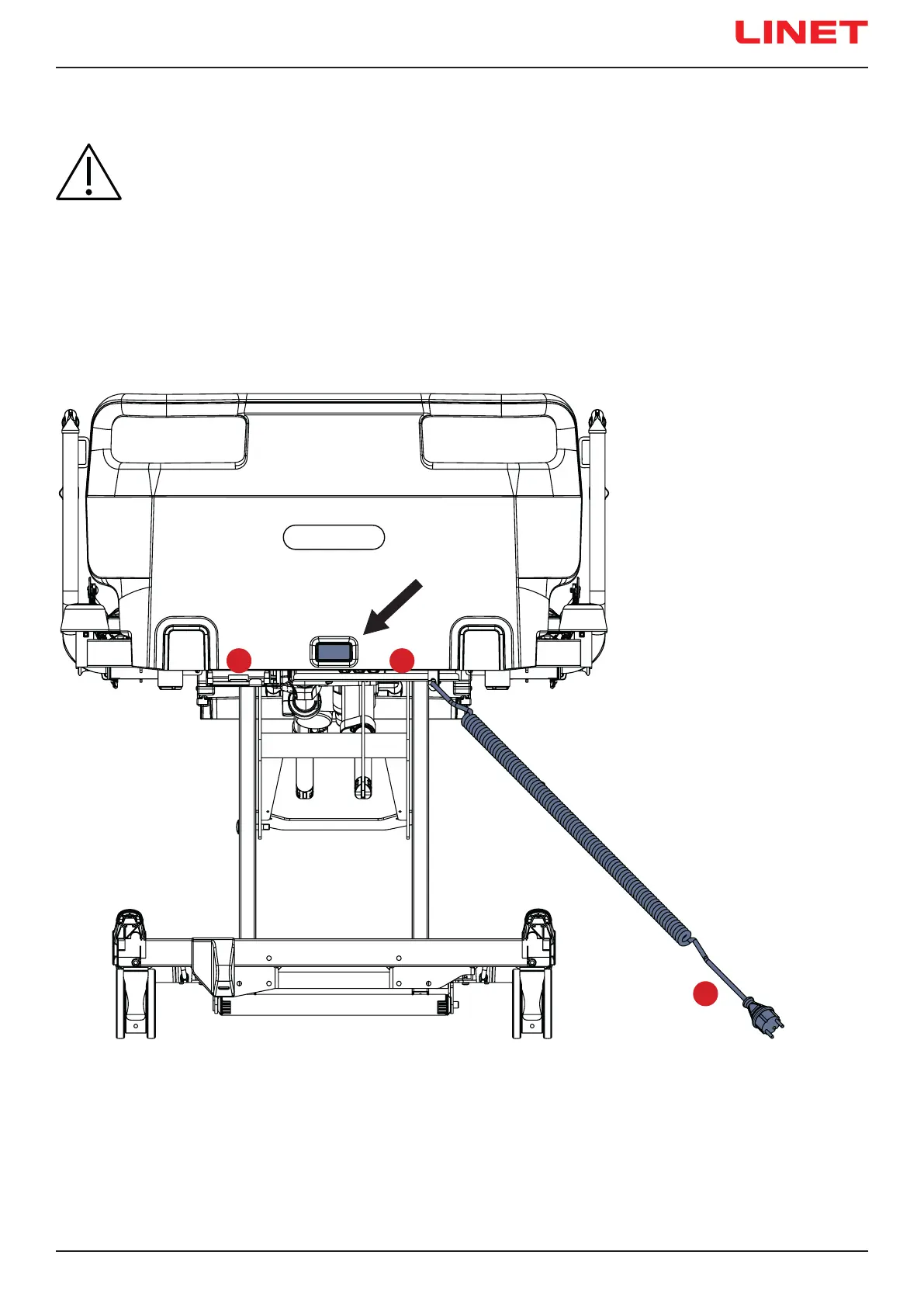

1. Accumulator Box (behind the
head end crossbar)
2. Control Unit (behind the head
end crossbar)
3. Power Supply Cord
